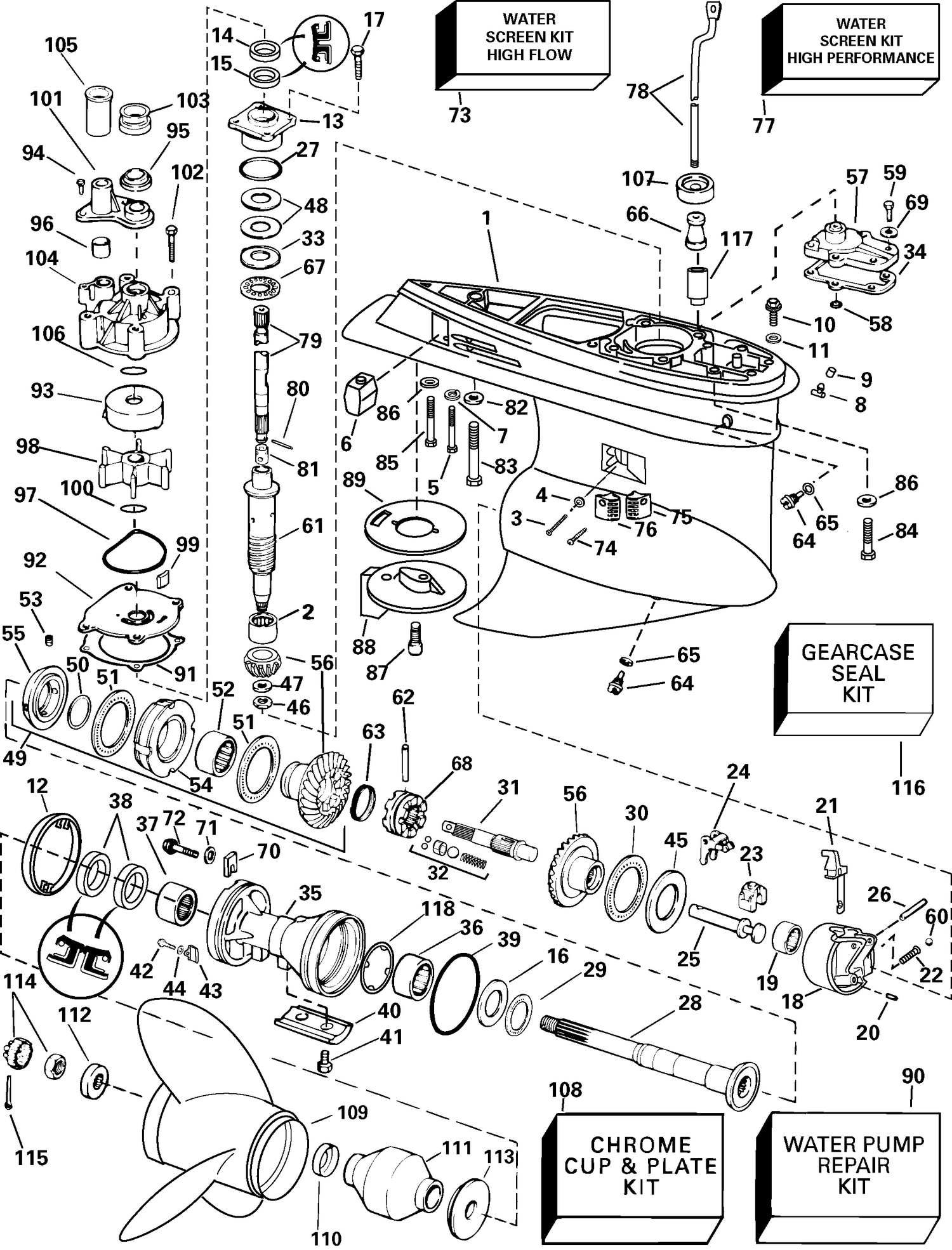

GEARCASE - FCX & FCZ MODELS
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 83 | 0331998 | SCREW, Gearcase to housing |
| 84 | 0331999 | SCREW, Gearcase housing |
| 85 | 0330263 | SCREW, Mounting, 3/8 in. X 3.50 in. |
| 87 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 88 | 0338743 | TRIM TAB |
| 90 | 5001595 | Water Pump Repair Kit |
| 97 | 0331353 | Seal, Impeller Housing Plate. |
| 106 | 0331188 | O-Ring |
| 108 | 0435526 | CHROME CUP & PLATE KIT |
| 116 | 5006373 | GEARCASE SEAL KIT This part replaces 5000411. |
| 5009368 | GEARCASE | Assembly, Complete This part replaces 5004634. 5009368 |
