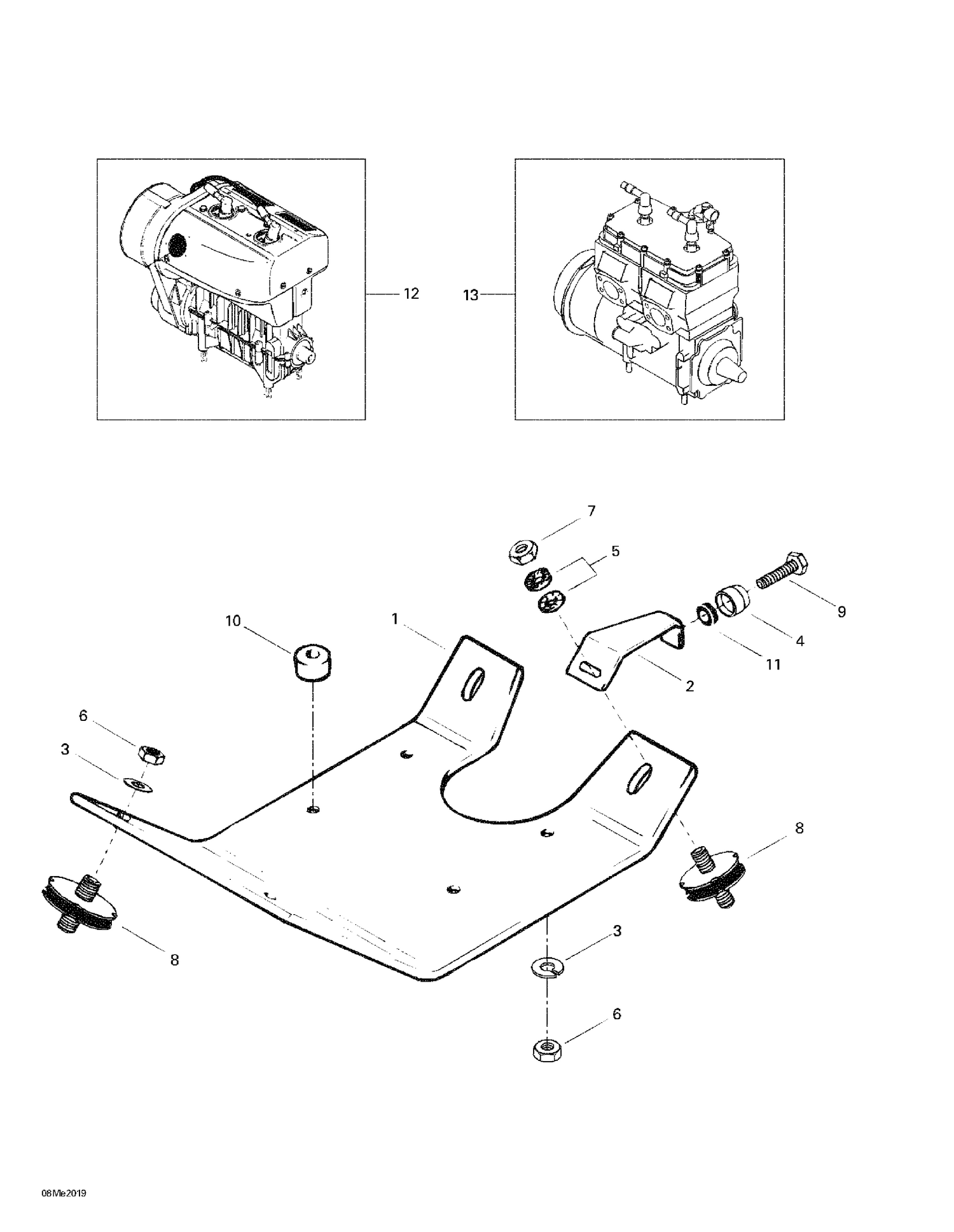

01- Engine Support
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | M539902 | Support |
| 3 | 512056700 | Lock Washer |
| 4 | 605449240 | SLEEVE - Call your local BRP dealership This part replaces M5440091. |
| 5 | 20068 | Lock Washer D10 This part replaces M20068. |
| 6 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 7 | 232006414 | Hex. Nut M10 X 1.5 |
| 8 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 9 | 207182544 | Hex. Screw M8 X 25 |
| 11 | M2846014 | Rubber Washer |
