Home / BRP / EVINRUDE / 09- Hood YETI - 600 ACE

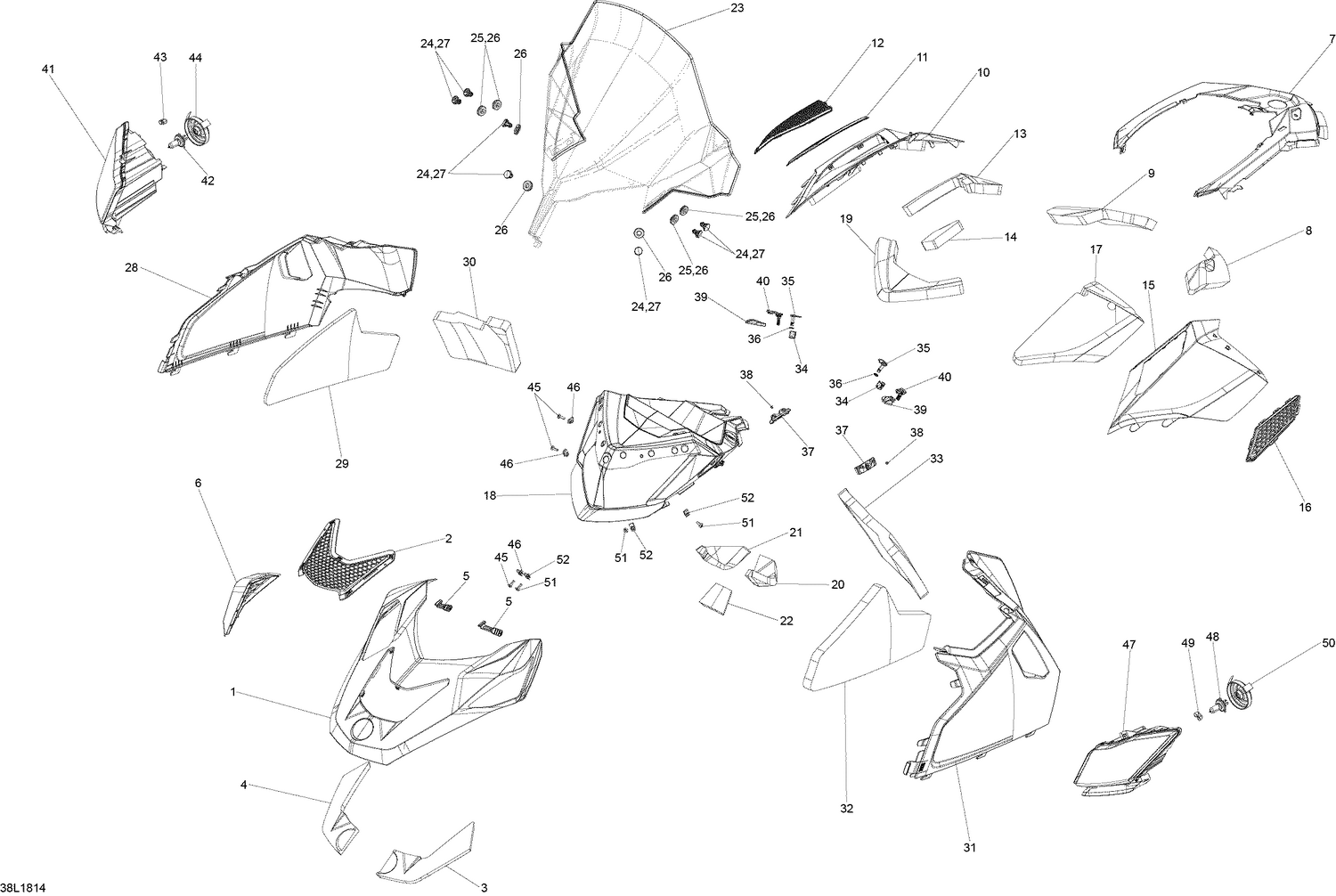

09- Hood YETI - 600 ACE

09- Hood YETI - 600 ACE

Parts (48)

RefPart NumberDescription
1 517304810 Red Hood
2 517304843 Hood grill front
3 517304330 Isolation L.H.
4 517304214 Isolation R.H.
5 517304289 Latch Pannel
6 517306981 Intake Grill This part replaces 517304855.
7 517305609 Black Console
8 517305644 Isolation left
9 517304318 Isolation right
10 517304831 Red RH Side Access Panel
11 517304015 Acces panel grill R.H.
12 517304016 Access Panel Grill Lower RH
13 517304311 Isolation
14 517305987 Insulator
15 517304841 Red LH Side Access Panel
16 517303893 L.H. Acces panel grill
17 517304313 Insulator
18 517304272 Indicator Support
19 517304314 Isolation front
20 517304315 Isolation right
21 517304316 R.H. Isolation
22 517304319 Isolation middle
24 517304744 Button
25 517303756 Grommet
26 517303756 Grommet
27 517304744 Button
28 517306977 Panel_Body Rh B-160 This part replaces 517304328.
29 517304709 Foam Right
30 517304310 Isolation rear R.H.
31 517306979 Panel_Body Lh B-160 This part replaces 517304329.
32 517304707 Foam LH
33 517304309 Isolation rear L.H.
34 517304297 Handle Fastener Quarter-Turn
35 517304296 Quarter-Turn Handle
36 517304538 Locking Plate
37 517304497 Side Panel Support
38 293150211 Rivet
39 517304075 End Piece Latch
40 517306057 Panel Latch
42 515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )
43 515176498 Kansi
44 219800280 Rubber Cap Protector This part replaces 515176499.
45 250000722 Torx Truss Screw M6 x 20
46 250100198 Panel Nut , M6 X 1.0 This part replaces 250000048.
48 515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )
49 515176498 Kansi
50 219800280 Rubber Cap Protector This part replaces 515176499.
51 250000722 Torx Truss Screw M6 x 20
