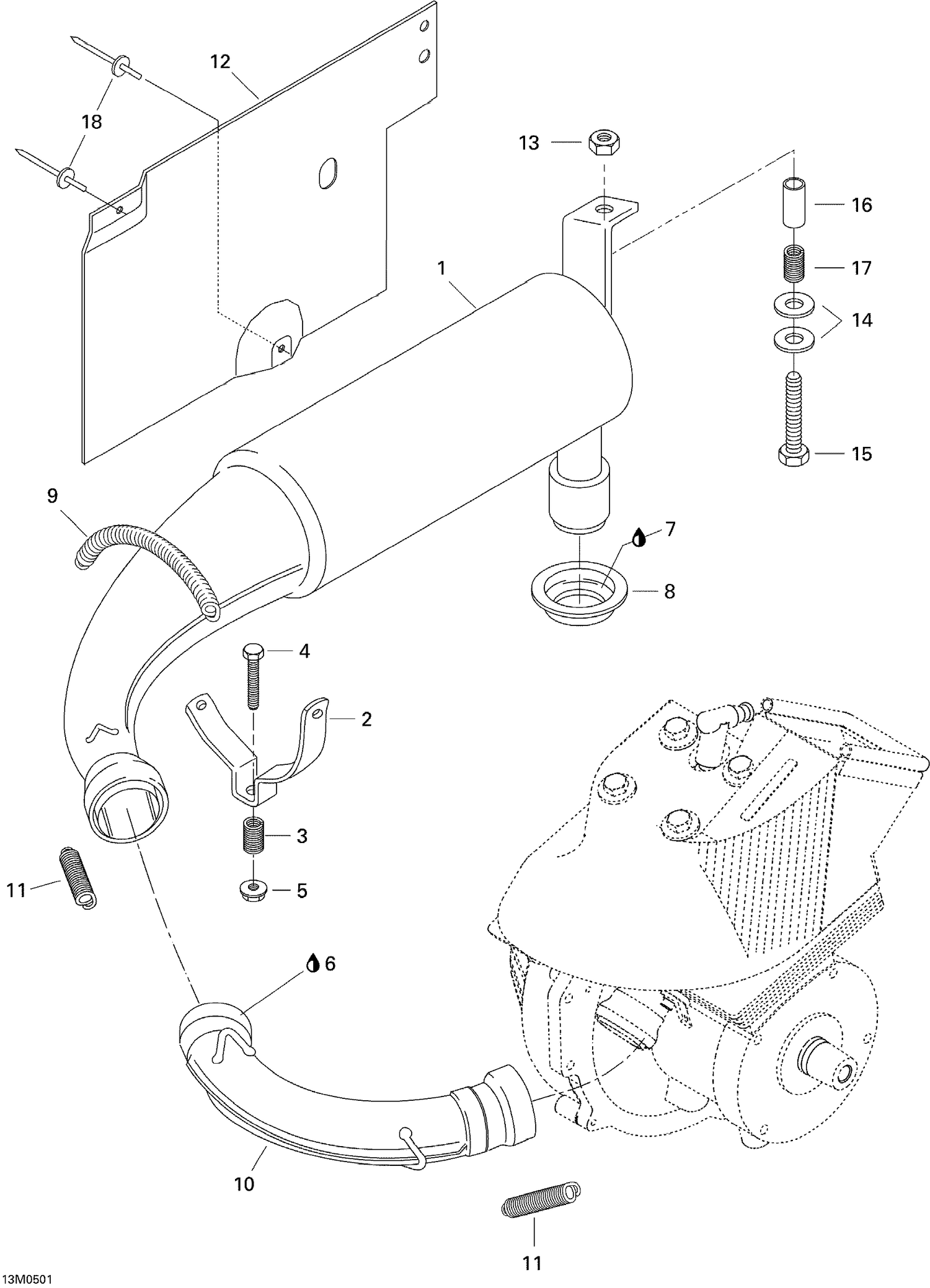

01- Exhaust System
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514053339 | Paint Muffler |
| 2 | 514017900 | Muffler Support |
| 3 | 414913700 | SPRING - Call your local BRP dealership |
| 4 | 207064544 | Hex. Screw M6 X 45 |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 293800090 | Sealant, Loctite, 80 ml |
| 7 | 293550030 | Grease, Super Lube |
| 8 | 570141300 | Exhaust Grommet |
| 9 | 517268300 | Spring |
| 10 | 514050300 | Welded Exhaust Elbow |
| 11 | 517182100 | SPRING - Call your local BRP dealership |
| 12 | 517299300 | Heat Shield |
| 13 | 232581414 | Hex. Elastic Stop Nut M8 |
| 14 | 234082410 | Flat Washer 8 mm |
| 15 | 207085044 | Hex. Screw M8 X 50 |
| 16 | 514035800 | Guide |
| 17 | 414913700 | SPRING - Call your local BRP dealership |
