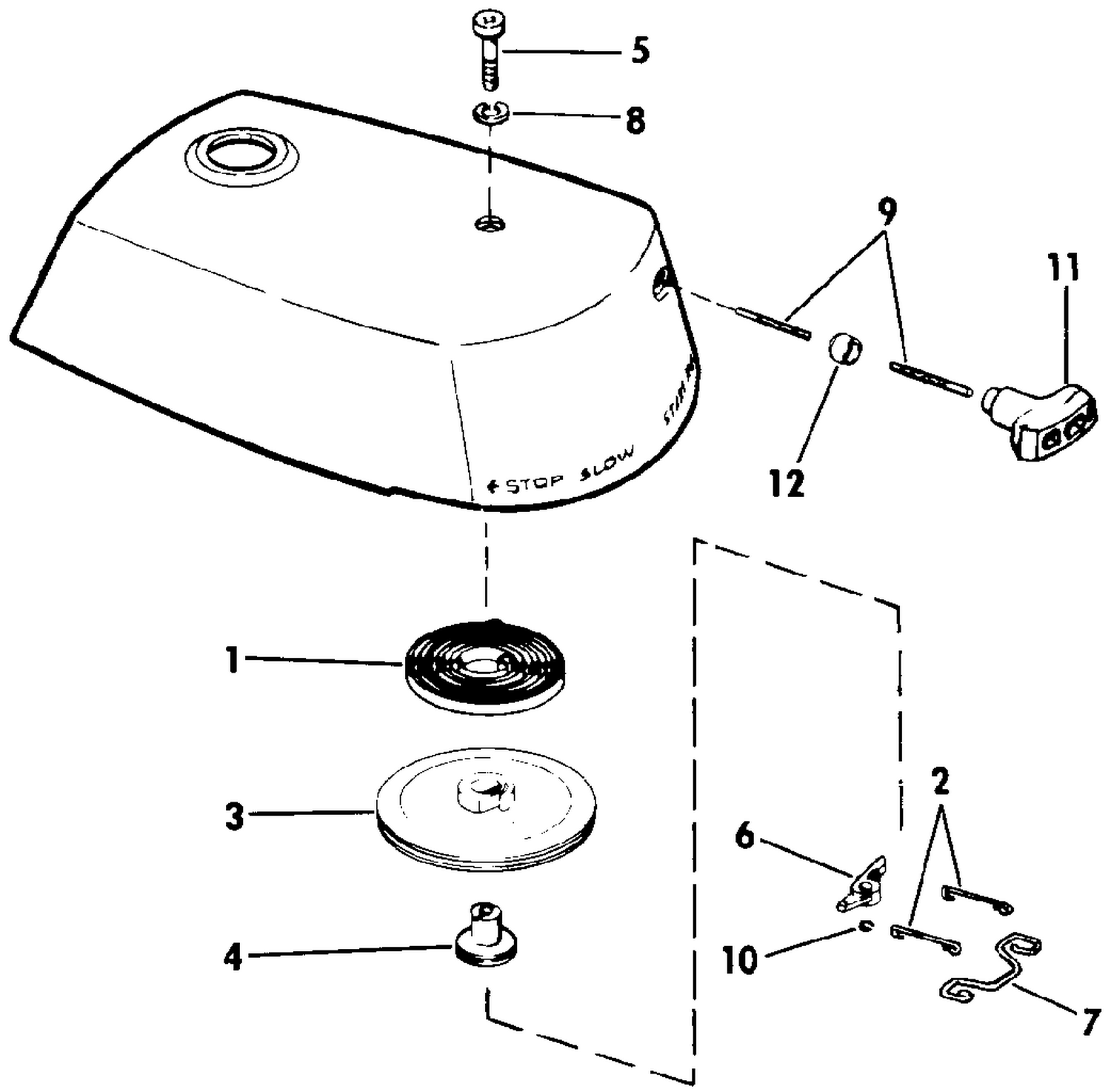

REWIND STARTER

REWIND STARTER

Parts (10)

RefPart NumberDescription
1 0326877 SPRING, Starter
2 0203700 LINK SPRING TO PAWL
3 0396854 PULLEY & PIN ASSY.
4 0431968 SPINDLE & SCREW
5 0334419 SCREW, Spindle
6 0203698 PAWL, Starter
7 0331970 FRICTION SPRING
8 0306799 L'WASHER,Bracket to hsg.
9 ROPE, Starter
11 0325747 HANDLE
