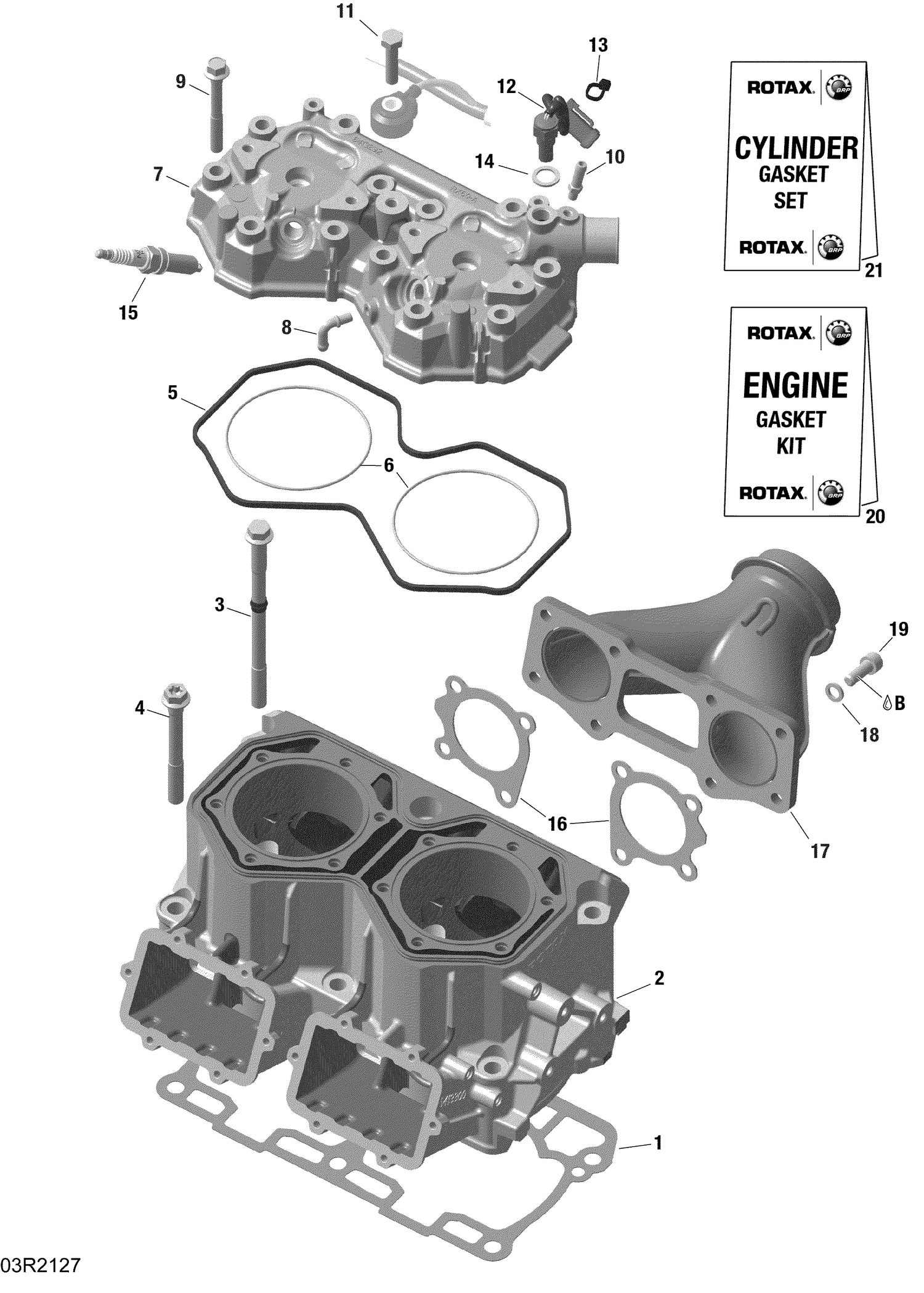

01- Rotax - Cylinder And Cylinder Head - NA - Shot
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420831020 | Double Gasket 0.5MM |
| 1 | 420831021 | Double Gasket 0.6MM |
| 1 | 420831022 | Double Gasket 0.7MM |
| 1 | 420831023 | Double Gasket 0.8MM |
| 1 | 420831024 | Double Gasket 0.9MM |
| 2 | 420413575 | Cylinder Block Plasma This part replaces 420413545. |
| 3 | 420641762 | Hex. Flange Screw M10 X 150 |
| 4 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 |
| 5 | 420430041 | Square Ring |
| 6 | 420931410 | O-Ring |
| 7 | 420413295 | Cylinder Head |
| 8 | 420924802 | Fittin 90D This part replaces 420924523. |
| 9 | 420640959 | Collar Hex Screw M8 X 68.5 This part replaces 420640958. |
| 10 | 420924724 | Hose Nipple |
| 11 | 207083544 | Hex. Screw M8 X 35 |
| 12 | 420664509 | Temperature Sensor This part replaces 420664508. |
| 13 | 420651817 | Locking Tie 175 X 4 MM |
| 14 | 420250016 | Aluminum Sealing Ring |
| 15 | 415130651 | Spark Plug NGK ILKR8Q7 This part replaces 420297948. |
| 16 | 420430486 | Gasket |
| 17 | 420873030 | Exhaust Manifold |
| 18 | 420427290 | Washer |
| 19 | 420841051 | Allen Screw M8 X 22 |
| 20 | 420894376 | Engine Gasket Set This part replaces 420894263. |
