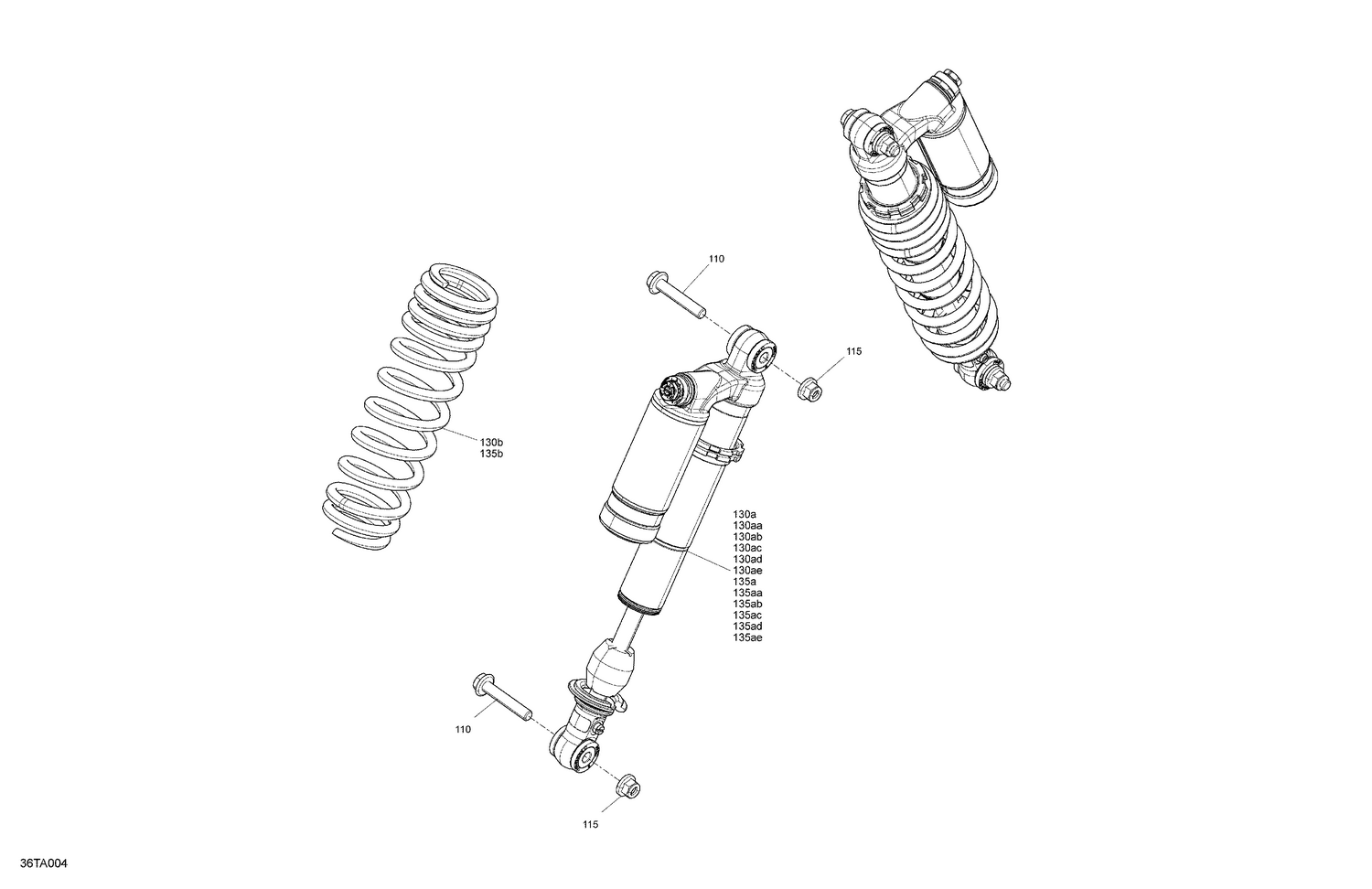

05- Suspension - Front Shocks
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 207605546 | Hex. Flange Screw M10 X 55 |
| 115 | 233201436 | Hex. Flange Elastic Nut M10 |
| 130a | 706204836 | Front Shock Absorber This part replaces 706203977. |
| 130aa | 715900649 | Bushing |
| 130ab | 715900472 | Seal |
| 130ac | 715900473 | Sleeve |
| 130ad | 715900650 | Spacer |
| 130ae | 715900651 | Spacer |
| 130b | 706203419 | Red Spring |
| 135a | 706204836 | Front Shock Absorber This part replaces 706203977. |
| 135aa | 715900649 | Bushing |
| 135ab | 715900472 | Seal |
| 135ac | 715900473 | Sleeve |
| 135ad | 715900650 | Spacer |
| 135ae | 715900651 | Spacer |
