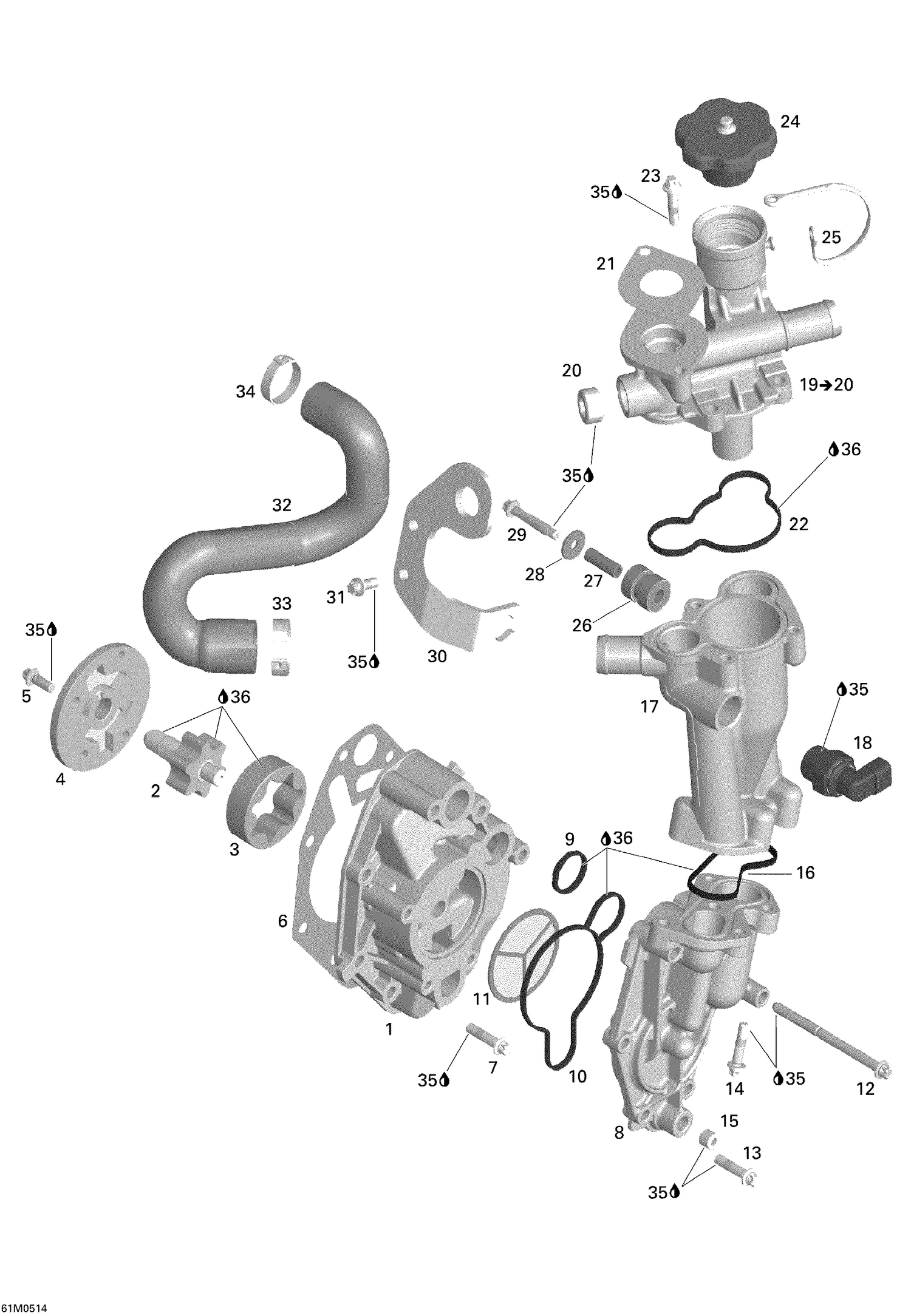

| Ref | Part Number | Description |
|---|
| 1 |
420811840 |
OIL PUMP HOUSING - Call your local BRP dealership |
| 2 |
420837542 |
PUMP SHAFT ASS'Y - Call your local BRP dealership |
| 3 |
420956675 |
Oil Pump Rotor 16 mm |
| 4 |
420811851 |
Oil Pump Cover This part replaces 420811850. |
| 5 |
420641048 |
Torx Flange Screw M6 X 16 |
| 6 |
420950970 |
GASKET - Call your local BRP dealership |
| 7 |
420641238 |
Torx Flange Screw M6 X 25 |
| 8 |
420811892 |
OIL SIEVE COVER - Call your local BRP dealership |
| 9 |
420630240 |
SEAL RING - Call your local BRP dealership |
| 10 |
420950850 |
GASKET - Call your local BRP dealership |
| 11 |
420256570 |
OIL SIEVE - Call your local BRP dealership |
| 12 |
420641228 |
Torx Flange Screw M6 X 85 |
| 13 |
420641238 |
Torx Flange Screw M6 X 25 |
| 14 |
420641238 |
Torx Flange Screw M6 X 25 |
| 15 |
420641323 |
Plug Screw M10 X 1 |
| 16 |
420630231 |
GASKET - Call your local BRP dealership |
| 17 |
420956761 |
OIL SEPARATOR HOUSING - Call your local BRP dealership |
| 18 |
420256886 |
Interr.Pression*Oil Tk Pres Sw This part replaces 420256885. |
| 20 |
420641317 |
Plug Screw M20 X 1.5 This part replaces 420641313. |
| 21 |
420630540 |
Gasket |
| 22 |
420630220 |
GASKET - Call your local BRP dealership |
| 23 |
420641238 |
Torx Flange Screw M6 X 25 |
| 24 |
420956923 |
Plug Cover, Yellow This part replaces 420956922. |
| 25 |
420660620 |
Retaining Band |
| 26 |
420660090 |
Rubber Bracket |
| 27 |
420847970 |
SPACER - Call your local BRP dealership |
| 28 |
420827968 |
Flat Washer M6 |
| 29 |
420641258 |
Torx Flange Screw M6 X 35 |
| 30 |
420851610 |
FRONT TRANSPORT BRACKET - Call your local BRP dealership |
| 31 |
420641048 |
Torx Flange Screw M6 X 16 |
| 32 |
420956970 |
Formed Hose |
| 33 |
420851673 |
Gear Clamp |
| 34 |
509000442 |
Oeticker Gear Clamp, 25.6-706R This part replaces 420851663. |
| 35 |
293800060 |
Loctite 243, 10 ml |
