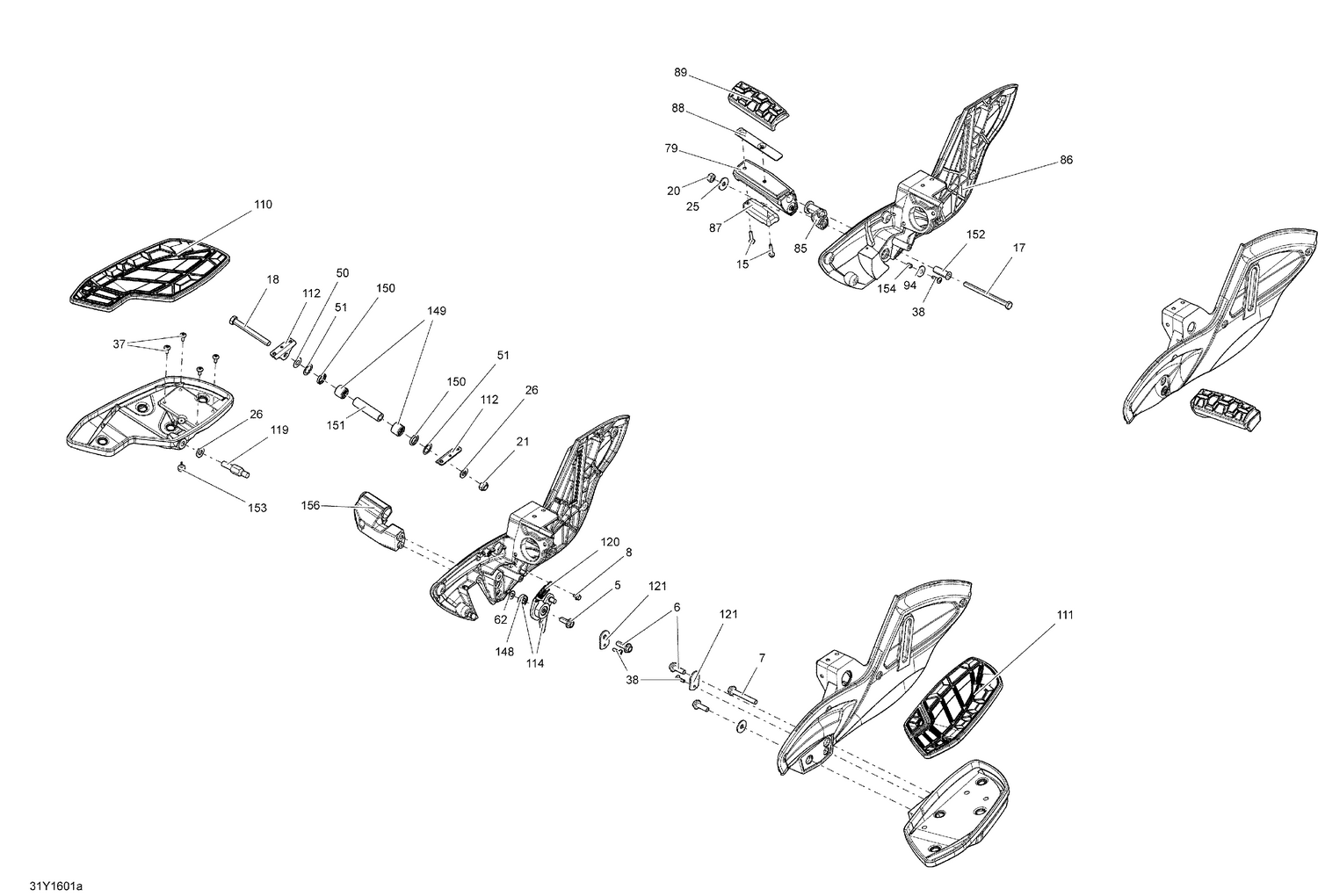

09- Body And Accessories - Footrest
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 207502546 | Hex. Flange Screw M10 X 25 |
| 6 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 7 | 207507046 | Hex. Screw M10 X 70, Scotch Grip |
| 8 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 15 | 210263050 | Hex. Flange Screw M6 X 30 |
| 16 | 230001586 | Hex. Screw M10 X 115 |
| 17 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 18 | 230020586 | Hexagonal Screw M12 X 105 |
| 21 | 232521416 | Elastic Stop Nut M12 |
| 25 | 234002600 | Flat Washer 10 mm, Stainless |
| 26 | 234021430 | Flat Washer |
| 37 | 250000717 | Torx Head Screw M6 X 16 |
| 38 | 250000722 | Torx Screw M6 X 20 |
| 50 | 706200281 | Hardened Washer This part replaces 250200086. |
| 51 | 250200136 | Plastic Washer 20MM |
| 62 | 503183800 | Washer |
| 85 | 705003615 | RH Rubber Bushing |
| 85 | 705003616 | LH Rubber Bushing |
| 87 | 705003730 | Vibration Dampener |
| 88 | 705003731 | Front Pad Plate |
| 89 | 705003245 | RH Front Footpeg Pad |
| 89 | 705003732 | LH Front Footpeg Pad |
| 94 | 705003932 | Grommet |
| 110 | 705005728 | RH Front Footboard Pad |
| 111 | 705005731 | LH Front Footboard Pad |
| 112 | 705005861 | Pivot Bracket |
| 114 | 705006014 | Latch Ass'y |
| 119 | 705006428 | Latch Pin M12 X 30 |
| 120 | 705006533 | Spring |
| 121 | 705006557 | Retaining Plate |
| 148 | 705600458 | Bearing |
| 149 | 706000447 | Bearing |
| 150 | 706000448 | Seal, Single Lip ID 19.4 OD 26 |
| 151 | 706000731 | Bushing |
| 152 | 706201151 | Inner Bushing |
| 153 | 708000759 | Rubber Stopper |
| 154 | 709000162 | Bushing |
