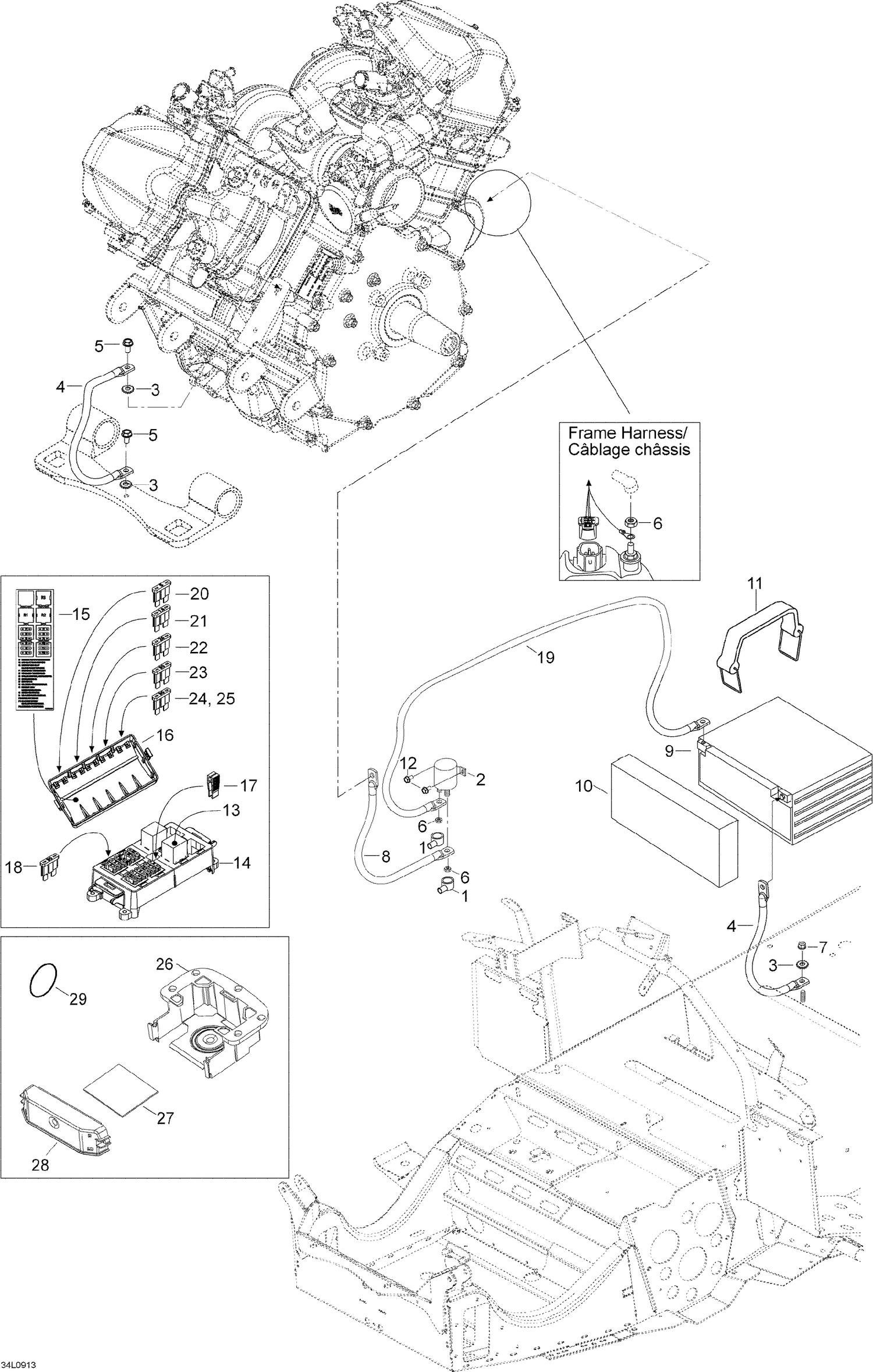

10- Electric Starter
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570151000 | Cover |
| 2 | 515176011 | Solenoid |
| 3 | 20017 | Cover |
| 4 | 605455189 | GROUND WIRE - Call your local BRP dealership |
| 5 | 40401 | Screw M6 x 10 |
| 6 | 33010 | Lock Nut M6 (1=10Pcs) |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 8 | 605355251 | BATTERY WIRE - Call your local BRP dealership |
| 9 | 410922962 | Battery YUASA YTX24-HL |
| 10 | 605352572 | COVER - Call your local BRP dealership |
| 11 | 605352573 | STEEL STRIP - Call your local BRP dealership |
| 12 | 40030 | Screw M6 x 20 |
| 13 | 515177672 | Relais *Relay This part replaces 410113604. |
| 14 | 515176065 | FUSE BOX BASE - Call your local BRP dealership |
| 15 | 605452411 | Decal |
| 16 | 515176066 | COVER - Call your local BRP dealership |
| 17 | 515175811 | FUSE TOOL - Call your local BRP dealership |
| 18 | 278000344 | Fuse 5 A |
| 18 | 278000704 | FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 18 | 409003900 | Fuse 20 A |
| 18 | 410917200 | Fuse 30 A |
| 18 | 42044 | FUSE 1 A - Call your local BRP dealership |
| 19 | 605151524 | Battery wire |
| 20 | 42045 | Fuse 15 A |
| 21 | 278000344 | Fuse 5 A |
| 22 | 278000344 | Fuse 7.5 A |
| 23 | 409003900 | Fuse 20 A |
| 24 | 410917200 | Fuse 30 A |
| 25 | 42045 | Fuse 15 A |
| 26 | 605255588 | Battery Holder - Call your local BRP dealership |
| 27 | 605355846 | FOAM - Call your local BRP dealership |
| 28 | 605255586 | BATTERY COVER - Call your local BRP dealership |
