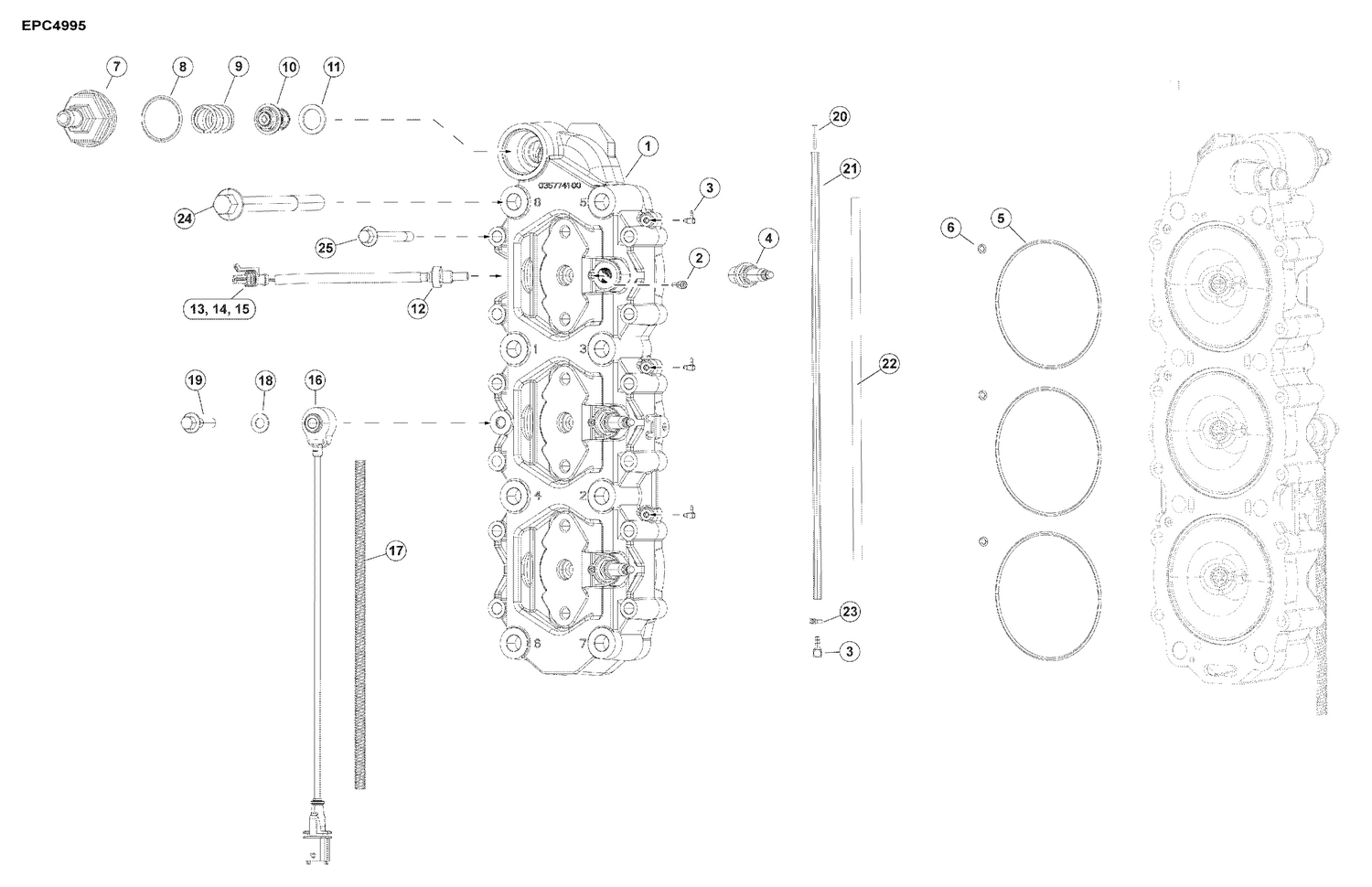

05-4_CYLINDER HEAD & THERMOSTAT
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| NS | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 1 | 5011628 | Cylinder Head Ay This part replaces 5009482. |
| 4 | 5010806 | SPARK PLUG, Champion QC8WEPIA |
| 7 | 5008903 | COVER AY,THERMOSTAT |
| 8 | 0331188 | O-Ring |
| 9 | 0351145 | SPRING, T-Stat cover to T-Stat |
| 10 | 5005440 | THERMOSTAT |
| 12 | 3011989 | SENSOR, Engine Temperature |
| 16 | 0587042 | SENSOR, Knock |
| 17 | 3011666 | TUBING, Convoluted |
| 22 | 0356715 | SLEEVE, Braided |
