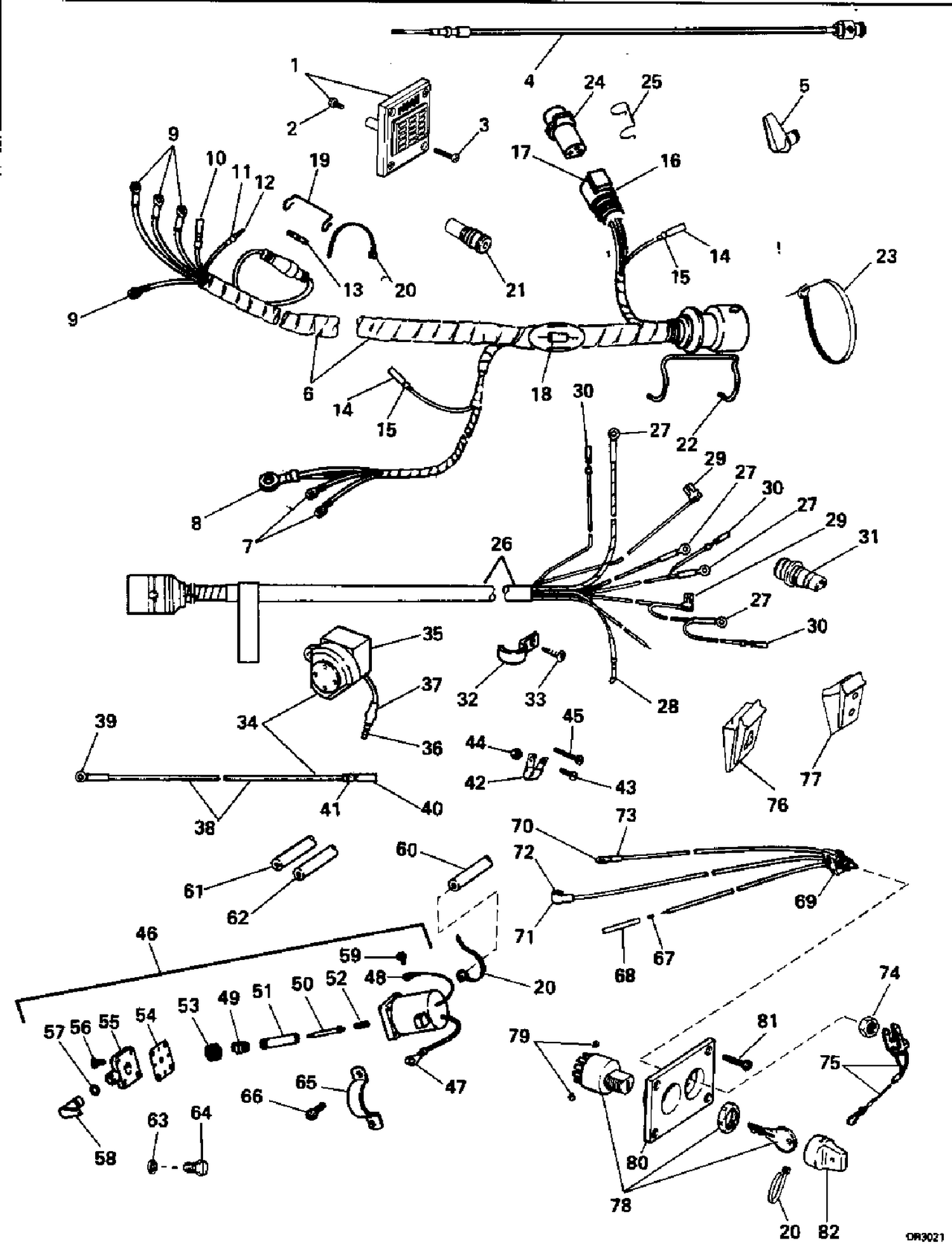

| Ref | Part Number | Description |
|---|
| 1 |
0174970 |
BEZEL KIT, Horn |
| 2 |
0124880 |
SCREW, Bracket, timing pointer |
| 4 |
0436202 |
CABLE, Tilt assist This part replaces 0432024. |
| 5 |
0431962 |
LEVER Assy, Tilt assist |
| 6 |
0583649 |
CABLE |
| 21 |
0123404 |
CONNECTOR, 1-socket plug |
| 23 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 24 |
0513366 |
Male Plug. 3 Terminal |
| 25 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 26 |
0174969 |
INSTRUMENT CABLE ASSEMBLY |
| 34 |
0585992 |
HORN This part replaces 0174836. |
| 35 |
0585992 |
HORN This part replaces 0583931. |
| 38 |
0174964 |
LEAD ASSEMBLY |
| 42 |
0316669 |
CLAMP |
| 44 |
0308335 |
CLAMP, Coil |
| 45 |
0307190 |
SCR., Clamp, 10-24 x 1-1/4 |
| 46 |
5007356 |
Kit Ay This part replaces 0397909. |
| 54 |
0333348 |
GASKET, Cover to housing |
| 55 |
0511807 |
COVER&GASKET AY |
| 59 |
0329182 |
VIS, borne |
| 60 |
HOSE, |
Fuel manif. to primer sol., 8" (203mm) |
| 61 |
HOSE, |
Primer sol. to carb., upper 9 1/2" (241mm) |
| 62 |
HOSE, |
Primer sol. to carb., lower 14" (356mm) |
| 65 |
0330118 |
CLAMP |
| 77 |
0334164 |
GROMMET |
| 80 |
0125313 |
BEZEL, Choke & cutoff switches |
| 0433211 |
0433211 |
REMOTE ELECTRIC START KIT |
