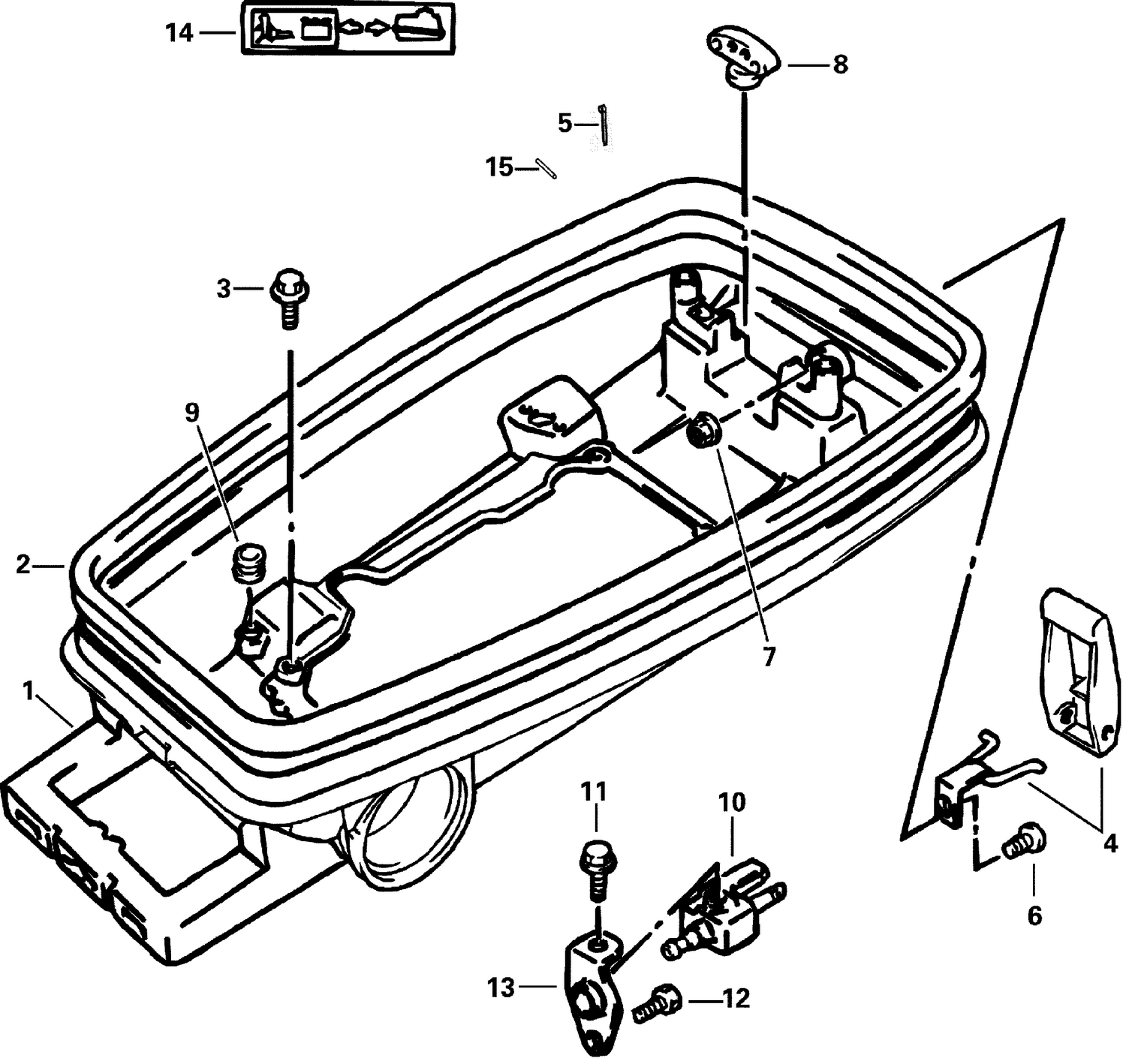

LOWER ENGINE COVER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032516 | Cover This part replaces 5032499. |
| 2 | 5030291 | SEAL, Lower to upper cover |
| 3 | 5030038 | BOLT This part replaces 5030039. |
| 4 | 5032473 | LEVER & FASTENER KIT, Engine cover |
| 5 | 5030084 | DRIVE PIN |
| 6 | 5030406 | SCREW |
| 8 | 5030305 | HOLDER, Drive pin & cotter pin |
| 9 | 5030095 | PLUG, Cover |
| 10 | 5032150 | CONNECTOR, Fuel |
| 12 | 5030031 | BOLT |
| 13 | 5030330 | BRACKET, Fuel connector |
| 14 | 5030293 | DECAL, Fuel valve assy. |
