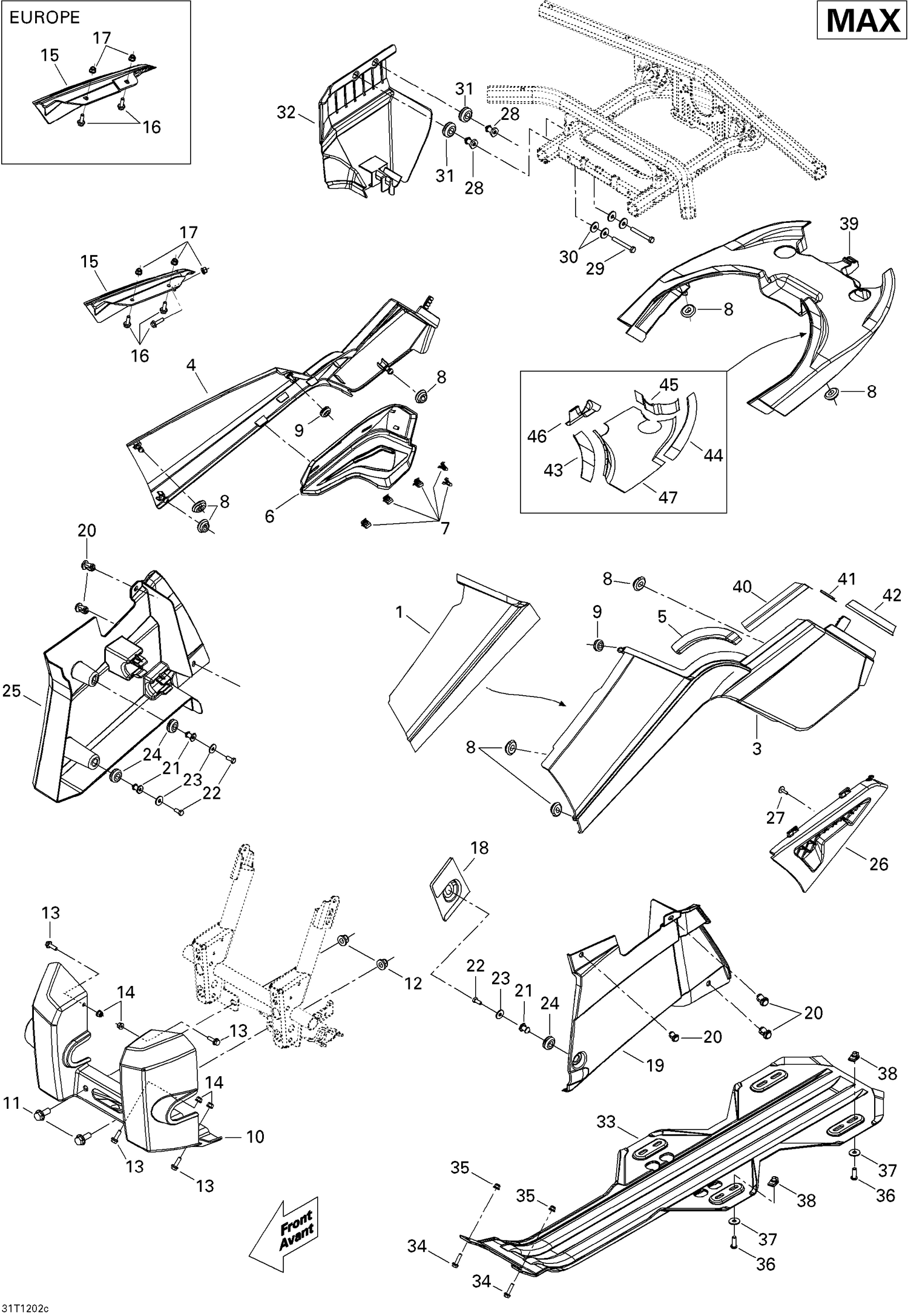

09- Body And Accessories 3
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705002491 | REFLECTIVE SHEET - Call your local BRP dealership |
| 2 | XXX | Not Available As Spare Parts |
| 6 | 705002664 | MUFFLER COVER - Call your local BRP dealership |
| 7 | 517302785 | Edge Clip |
| 9 | 705003264 | Grommet |
| 12 | 233201414 | Hex. Flange Elastic Nut M10 |
| 13 | 207662044 | Hex. Flange Screw M6 X 20 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 705003830 | Reflective Sheet |
| 19 | 705000652 | LH Inner Fender |
| 20 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 21 | 517303439 | Knob |
| 22 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 23 | 391301600 | Washer |
| 24 | 709000582 | Grommet This part replaces 293720053. |
| 25 | 705002640 | INNER FENDER - Call your local BRP dealership |
| 26 | 705002493 | CONSOLE CAP - Call your local BRP dealership |
| 27 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 28 | 517303439 | Knob |
| 29 | 241154540 | Hex. Screw K50 X 45 |
| 30 | 391301600 | Washer |
| 31 | 709000582 | Grommet This part replaces 293720053. |
| 32 | 705004036 | Thread Cover |
| 33 | 715000688 | PLATE_SKID CTRL. KIT - Call your local BRP dealership |
| 34 | 207662544 | Hex. Flange Screw M6 X 25 |
| 35 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 36 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 37 | 234082410 | Flat Washer 8 mm |
| 38 | 250100111 | Panel Nut M8 |
