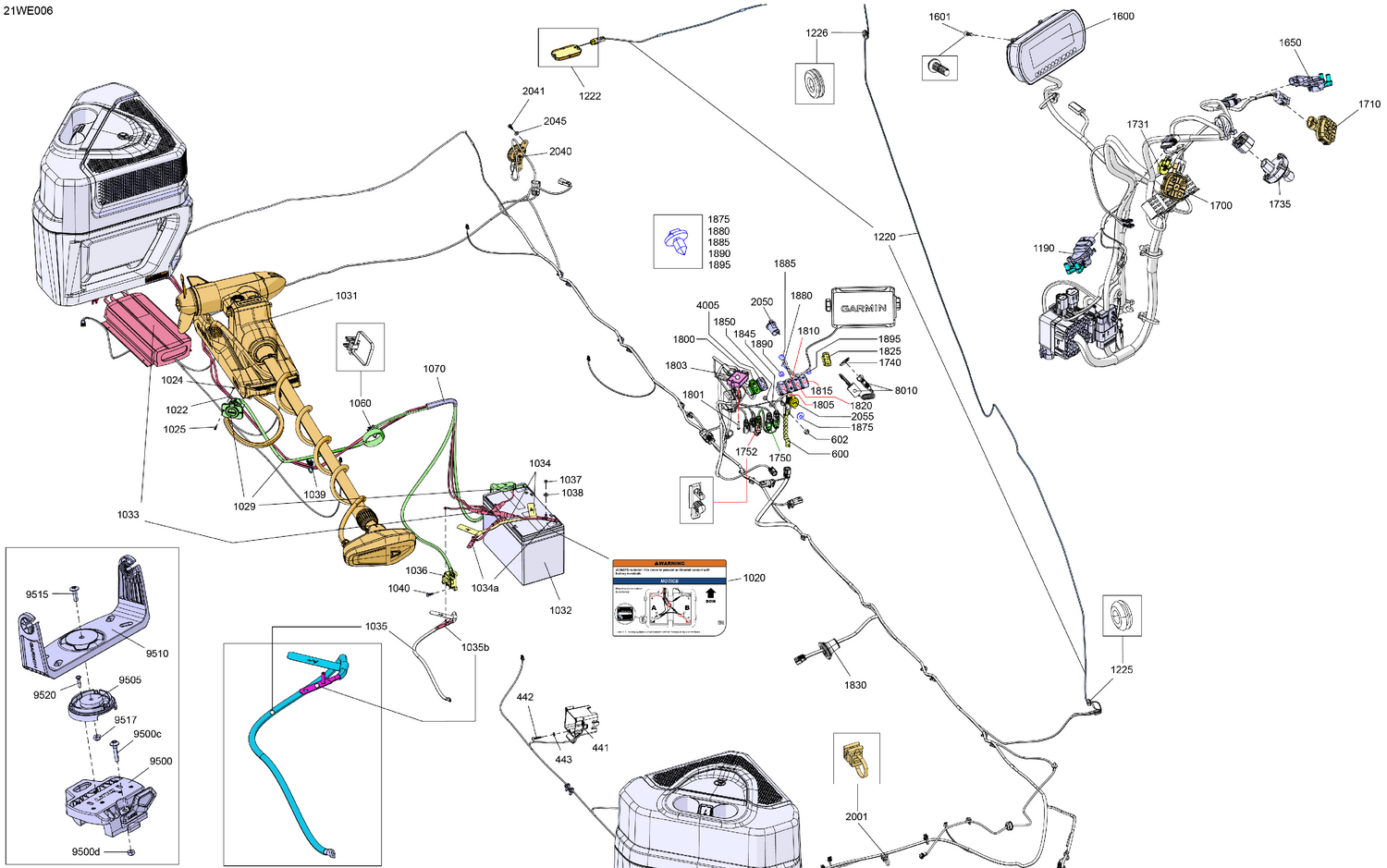

08- ELECTRIC - Electric Upper Section
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 441 | 278004308 | Switch Support |
| 442 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 443 | 250200114 | Sealing Washer |
| 600 | 281000234 | Busbar Ass'y |
| 602 | 232561200 | Brass Elastic Stop Nut M6 |
| 1022 | 234042600 | Flat Washer 4 mm, Stainless |
| 1024 | 232541200 | Elastic Stop Nut M4 |
| 1025 | 250001011 | Black, Socket Head Screw M4 X 16 |
| 1031 | 269801361 | Electric Motor Cover Ass'y |
| 1032a | 296000458 | Battery Bolt Kit |
| 1033a | 278004724 | Battery Charger This part replaces 278003977. |
| 1034a | 710008715 | Terminal |
| 1035b | 710008715 | Terminal |
| 1036 | 278004252 | Circuit Breaker |
| 1037 | 232561200 | Brass Elastic Stop Nut M6 |
| 1038 | 234081600 | Stainless, Flat Washer 8 mm |
| 1039 | 293750111 | Tie Wrap Clip |
| 1040 | 250001171 | Plastite Torx Screw Cone HD.M6.81X2 |
| 1060 | 293750103 | Anchorage Tie Wrap |
| 1070 | 219704619 | Barandilla Braided 25.4 Id 2000 Mm |
| 1190 | 278002284 | LH Throttle Sensor |
| 1220 | 278004242 | Roof Wiring Harness |
| 1222 | 278004206 | Dome Light |
| 1225 | 293720062 | Grommet |
| 1226 | 517303756 | Grommet |
| 1600 | 278003430 | Multifunction Mono Compact Gauge |
| 1601 | 241152040 | Hex. Flange PT Screw K50 X 20 |
| 1650 | 278002283 | Throttle Position Sensor |
| 1700 | 278003821 | Switch |
| 1710 | 278003474 | RH Switch Keypad |
| 1731 | 296000440 | Start/Stop Switch This part replaces 296000440. |
| 1740 | 278004274 | Specialized Nut |
| 1750 | 278003684 | Multiple Accessory Harness |
| 1752 | 515179692 | Connector Support |
| 1800 | 278004263 | Switch |
| 1801 | 241153060 | Hex. Flanged Pt Screw K50 X 30 |
| 1803 | 278003996 | Module Minuterie |
| 1805 | 278003690 | Horn Switch |
| 1810 | 278003691 | Nav & Anchor Light Switch |
| 1815 | 278003692 | Pump Switch |
| 1820 | 278003693 | Vent Switch |
| 1825 | 278004279 | Plug |
| 1830 | 293720134 | Cable Boot |
| 1845 | 234061600 | Stainless Flat Washer M6 |
| 1850 | 232561200 | Brass Elastic Stop Nut M6 |
| 1875 | 710008294 | Mount Dart |
| 1880 | 710008294 | Mount Dart |
| 1885 | 710008294 | Mount Dart |
| 1890 | 710008294 | Mount Dart |
| 1895 | 710008294 | Mount Dart |
| 2001 | 293750103 | Anchorage Tie Wrap |
| 2040 | 278003906 | Horn |
| 2041 | 250001171 | Plastite Torx Screw Cone HD.M6.81X2 |
| 2045 | 234081600 | Stainless, Flat Washer 8 mm |
| 2055 | 219400510 | USB Outlet |
| 4005 | 278004380 | Rocker Switch Button |
| 8010 | 278003400 | Safety Lanyard Ass'y, RFID |
| 9500c | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 9500d | 232561200 | Brass Elastic Stop Nut M6 |
| 9505 | 269801787 | GPS Base Support |
| 9510 | 269801786 | Front GPS Support |
| 9515 | 250000829 | Torx-Truss M/S Stlss M6 X 20 |
| 9517 | 232561200 | Brass Elastic Stop Nut M6 |
| 9520 | 250000287 | Flange Torx Screw K40 X 16 |
