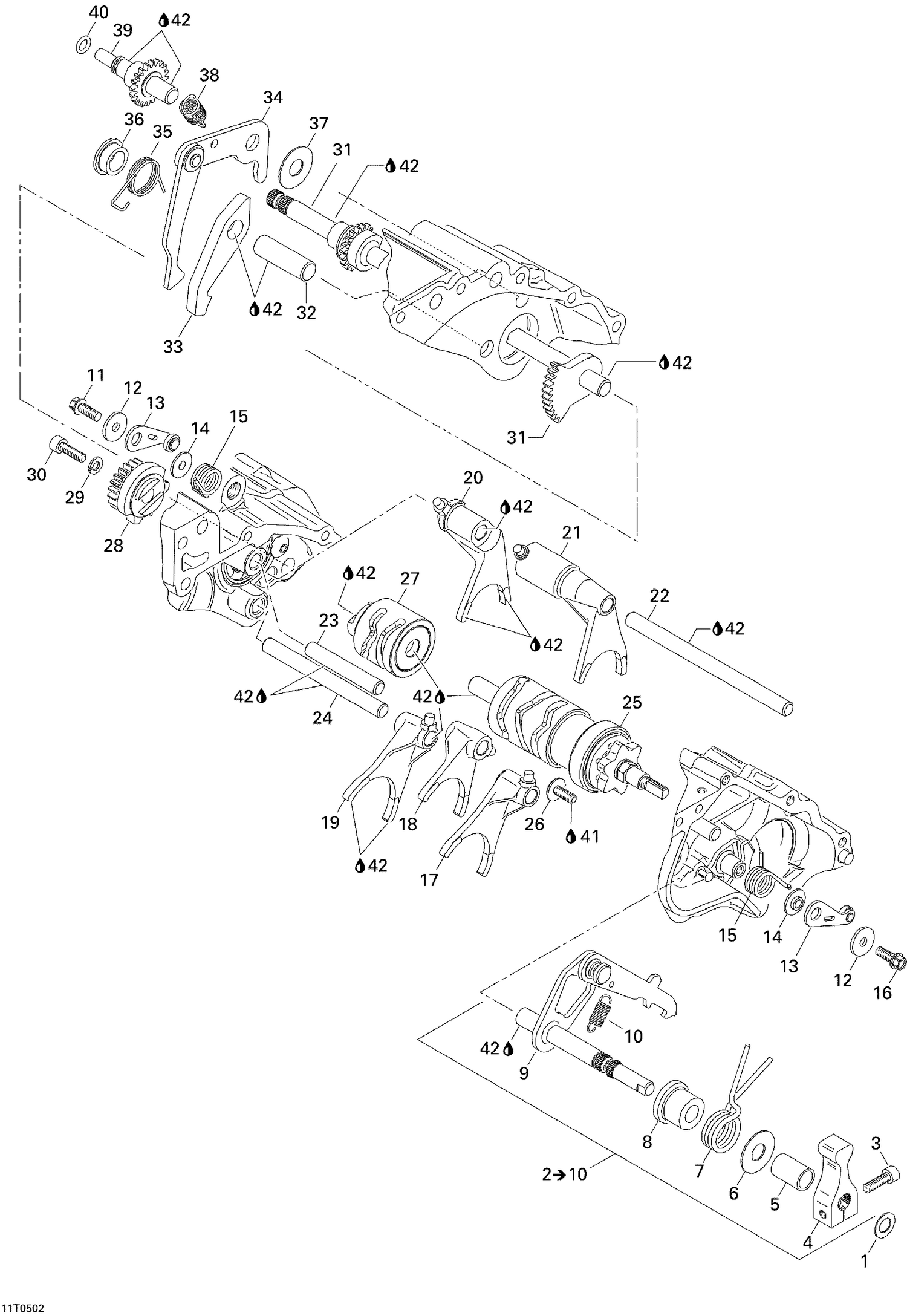

05- Gear Shift
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420627100 | THRUST WASHER - Call your local BRP dealership |
| 3 | 205062544 | Socket Head Screw M6 X 25 |
| 4 | 711257090 | Gear Shift Lever |
| 5 | 711247020 | Distance Sleeve |
| 6 | 420227980 | THRUST WASHER - Call your local BRP dealership This part replaces 711227980. |
| 7 | 711239084 | Shaft Spring |
| 8 | 711247050 | Collar Sleeve |
| 9 | 711220536 | Shift Shaft with Pawl Ass'y |
| 10 | 711239540 | Tension Spring |
| 11 | 420241751 | Hex. Flange Screw M6 X 16 |
| 12 | 420227900 | Washer |
| 13 | 703500189 | INDEX LEVER KIT - Call your local BRP dealership |
| 14 | 420227710 | BUSHING - Call your local BRP dealership |
| 15 | 420239560 | INDEX LEVER SPRING - Call your local BRP dealership |
| 16 | 420241751 | Hex. Flange Screw M6 X 16 |
| 17 | 420258402 | Shift Fork |
| 18 | 420258412 | Shift Fork |
| 19 | 420258392 | Shift Fork |
| 20 | 420258424 | Shift Fork |
| 21 | 420258434 | SHIFT FORK - Call your local BRP dealership |
| 22 | 420257080 | GEAR SHIFT ROD - Call your local BRP dealership |
| 23 | 420229475 | Needle Pin This part replaces 420229470. |
| 24 | 420229480 | Cylindrical Pin M10 X 100 |
| 25 | 420257107 | SHIFT DRUM ASS'Y - Call your local BRP dealership |
| 26 | 420241531 | SCREW M6 X 13 - Call your local BRP dealership |
| 27 | 420257111 | Shift Drum |
| 28 | 420257130 | INDEX GEAR - Call your local BRP dealership |
| 29 | 420445331 | Lock Washer |
| 30 | 205062544 | Socket Head Screw M6 X 25 |
| 31 | 420220585 | Shift Shaft Ass'y |
| 32 | 420220600 | SHAFT - Call your local BRP dealership |
| 33 | 420258621 | PARK LOCKING LEVER - Call your local BRP dealership |
| 34 | 420258475 | Actuating Lever |
| 35 | 420239550 | HELICAL SPRING - Call your local BRP dealership |
| 36 | 420247040 | COLLAR SLEEVE - Call your local BRP dealership |
| 37 | 420227980 | THRUST WASHER - Call your local BRP dealership |
| 38 | 420239591 | TENSION SPRING - Call your local BRP dealership |
| 39 | 420220545 | INDICATOR SHAFT - Call your local BRP dealership |
| 40 | 420430800 | O-Ring |
| 41 | 293800060 | Loctite 243, 10 ml |
