Home / BRP / 2012 / Rave / Rave RS 600, 2012 / 08- Rear Shocks

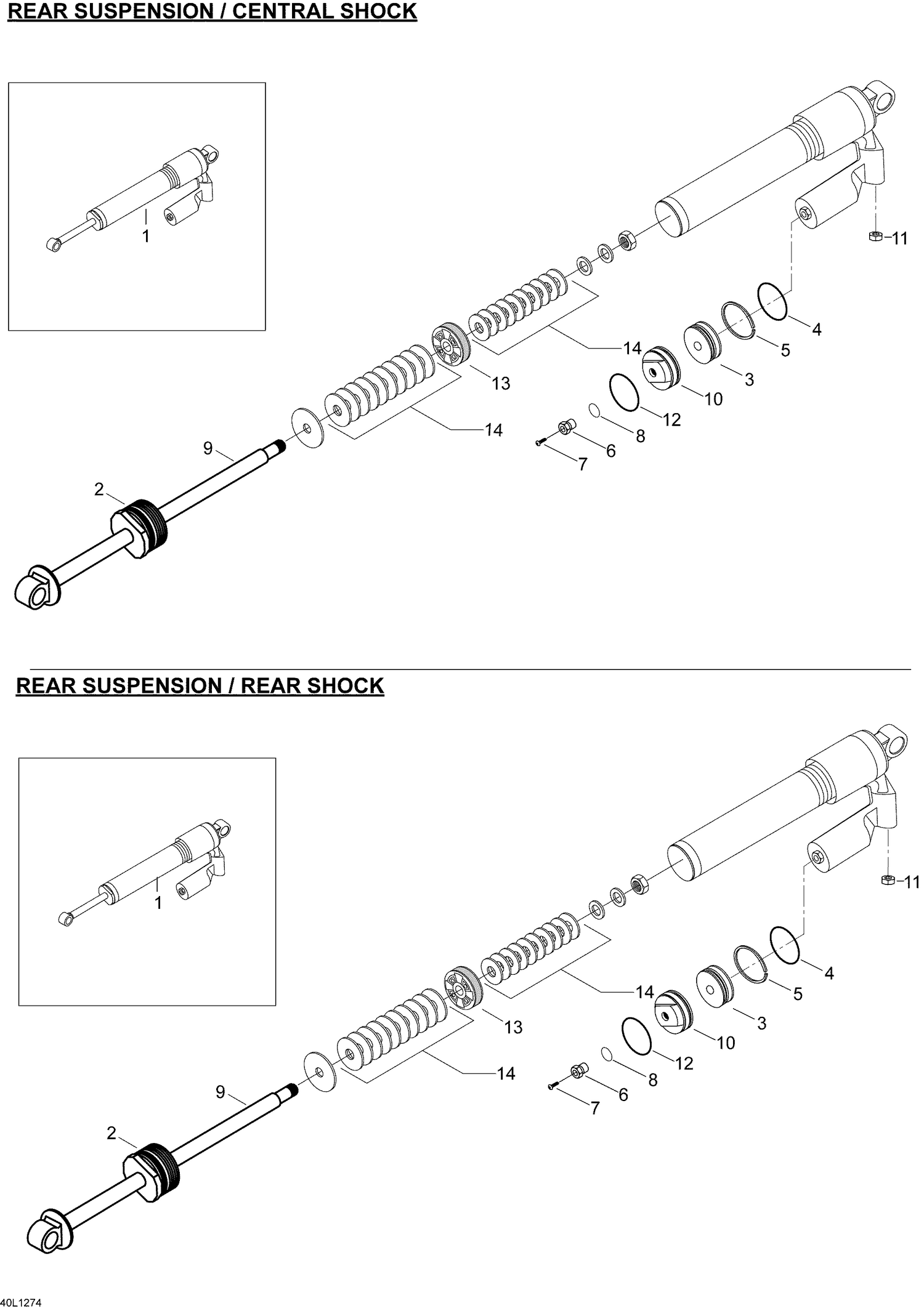

08- Rear Shocks

08- Rear Shocks

Parts (73)

RefPart NumberDescription
2 Not Available As Spare Part - Seal carrier assy
3 Not Available As Spare Part - Floating piston
4 415093807 O-Ring
5 503189006 PISTON RING - Call your local BRP dealership
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 Not Available As Spare Part - Rod ass'y, front arm
10 619300009 Seal carrier assy
11 619300015 Valve ass'y
12 415093804 O-Ring
13 230039 Piston 2.0 mm
13 230043 Piston 0 mm.
13 503189002 Piston, Ø1.7 (C46)
13 503189003 Piston, Ø1.2 (C46)
13 Not Available As Spare Part - Piston 2.2 mm
14 230029 Shim 46 mm. 20 X 0,114
14 230030 Shim 46 mm. 20 X 0,152
14 230031 Shim 46 mm. 20 X 0,203
14 230032 Shim 46 mm. 20 X 0,254
14 230033 Shim 46 mm. 34 X 0,114
14 230034 Shim 46 mm. 34 X 0,152
14 230035 Shim 46 mm. 34 X 0,203
14 230036 Shim 46 mm. 34 X 0,254
14 230037 Shim 46 mm. 36 X 0,114
14 230040 Shim 46 mm. 38 X 0,152
14 230041 Shim 46 mm. 38 X 0,203
14 230042 Shim 46 mm. 38 X 0,254
14 230082 Shim 46 mm. 32 X 0,114
14 503189015 Leaf Valve Ø22 X 0.305 (C46)
14 503189016 Leaf Valve Ø24 X 0.114 (C46)
14 503189017 Leaf Valve Ø24 X 0.152 (C46)
14 503189018 Leaf Valve Ø24 X 0.203 (C46)
14 503189020 Leaf Valve Ø24 X 0.305 (C46)
14 503189021 Leaf Valve Ø26 X 0.114 (C46)
14 503189023 Leaf Valve Ø26 X 0.203 (C46)
14 503189027 Leaf Valve Ø28 X 0.152 (C46)
14 503189030 Leaf Valve Ø28 X 0.305 (C46)
14 503189033 Leaf Valve Ø30 X 0.203 (C46)
14 503189036 Leaf Valve Ø36 X 0.152 (C46)
14 503189038 Leaf Valve Ø36 X 0.254 (C46)
14 503189039 Leaf Valve Ø40 X 0.152 (C46)
14 619300022 Shim 46 mm. 32 X 0,305
14 619300056 Shim 46 mm. 30 X 0,305
14 619300059 Shim 46 mm. 32 X 0,254
14 619300060 Shim 46 mm. 17 X 0,114
14 619300067 Shim 46 mm. 18 X 0,152
14 619300068 Shim 46 mm. 18 X 0,114
14 619300069 Shim 46 mm. 17 X 0,203
14 619300070 Shim 46 mm. 34 X 0,305
14 619300095 Shim 46 mm. 24 X 0,254
14 619300097 Shim 46 mm. 20 X 0,305
14 619300098 Shim 46 mm. 22 X 0,203
14 619300099 Shim 46 mm. 26 X 0,254
14 619300100 Shim 46 mm. 26 X 0,305
14 619300101 Shim 46 mm. 28 X 0,114
14 619300102 Shim 46 mm. 28 X 0,203
14 619300103 Shim 46 mm. 28 X 0,254
14 619300104 Shim 46 mm. 30 X 0,152
14 619300105 Shim 46 mm. 36 X 0,305
14 619300106 Shim 46 mm. 38 X 0,305
14 619300112 Shim 46 mm. 40 X 0,203
14 619300113 Shim 46 mm. 30 X 0,254
14 619300133 Shim 46 mm. 22 X 0,114
14 619300134 Shim 46 mm. 22 X 0,254
14 619300135 Shim 46 mm. 30 X 0,114
14 619300136 Shim 46 mm. 40 X 0,254
14 619300137 Shim 46 mm. 32 X 0,152
14 619300138 Shim 46 mm. 32 X 0,203
14 619300140 Shim 46 mm. 22 X 0,152
14 619300141 Shim 46 mm. 26 X 0,152
14 619300142 Shim 46 mm. 36 X 0,203
14 Not Available As Spare Part - Shim 46 mm. 17 X 0,152
