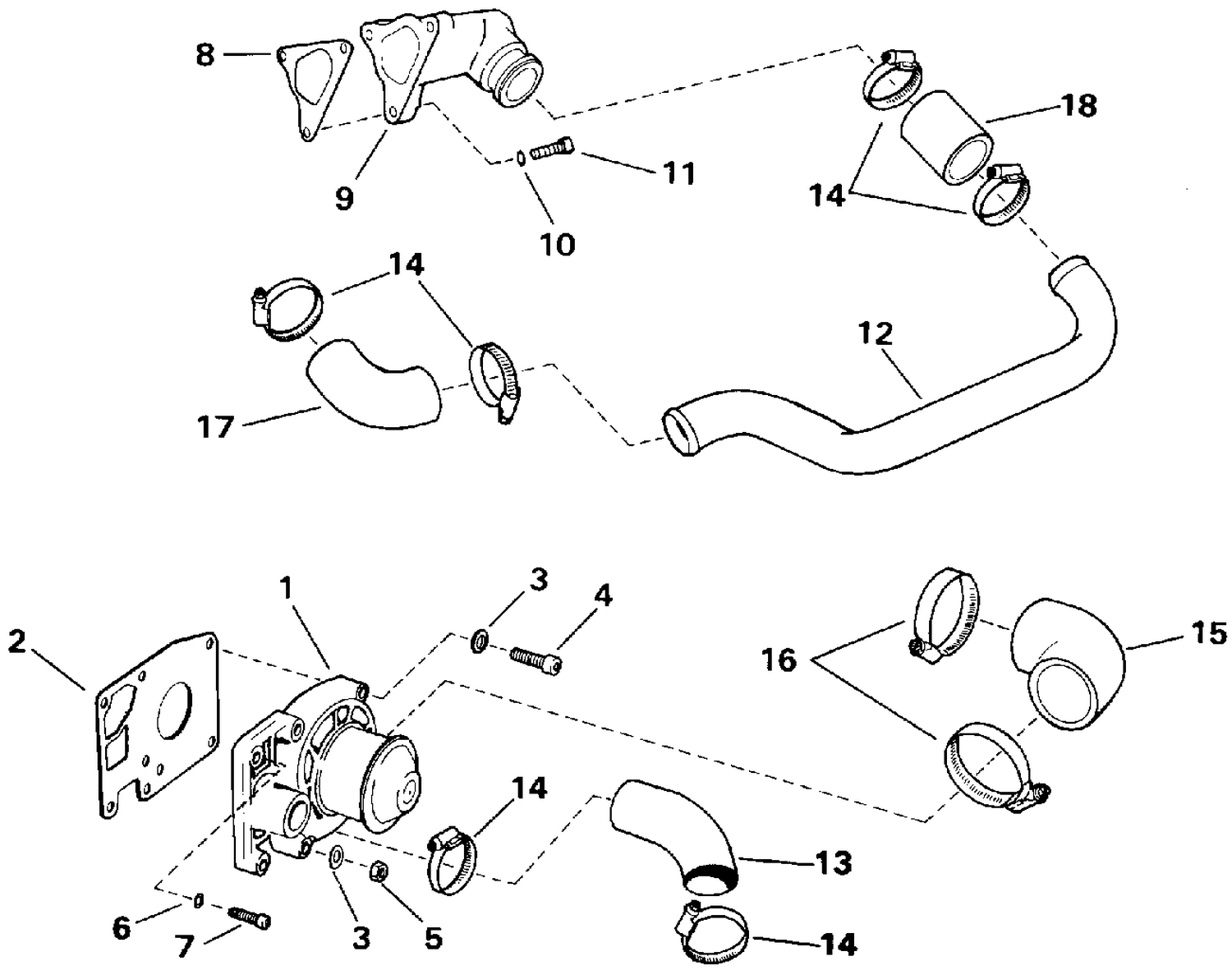

| Ref | Part Number | Description |
|---|
| 1 |
0987383 |
WATER PUMP |
| 2 |
0915505 |
SPACER PLATE, Water pump |
| 3 |
0915501 |
WASHER, Block |
| 4 |
0915502 |
BOLT, Flywheel housing, small |
| 5 |
0915453 |
NUT, Block |
| 6 |
0915399 |
WASHER, Bolt, water pump |
| 7 |
0915479 |
BOLT, Housing |
| 8 |
0915508 |
GASKET, Water inlet adapter |
| 9 |
0915509 |
ADAPTER MANIFOLD, Water inlet |
| 10 |
0915399 |
WASHER, Bolt, water pump |
| 11 |
0915479 |
BOLT, Housing |
| 12 |
0915511 |
COOLANT PIPE, Front |
| 13 |
0915512 |
HOSE ELBOW, Water pump, small |
| 14 |
0915513 |
CLAMP, Hose, engine coolant |
| 15 |
0915514 |
HOSE ELBOW, Water pump, large |
| 16 |
0915515 |
CLAMP, Hose, charge piping |
| 17 |
0915516 |
HOSE ELBOW, Expansion tank |
