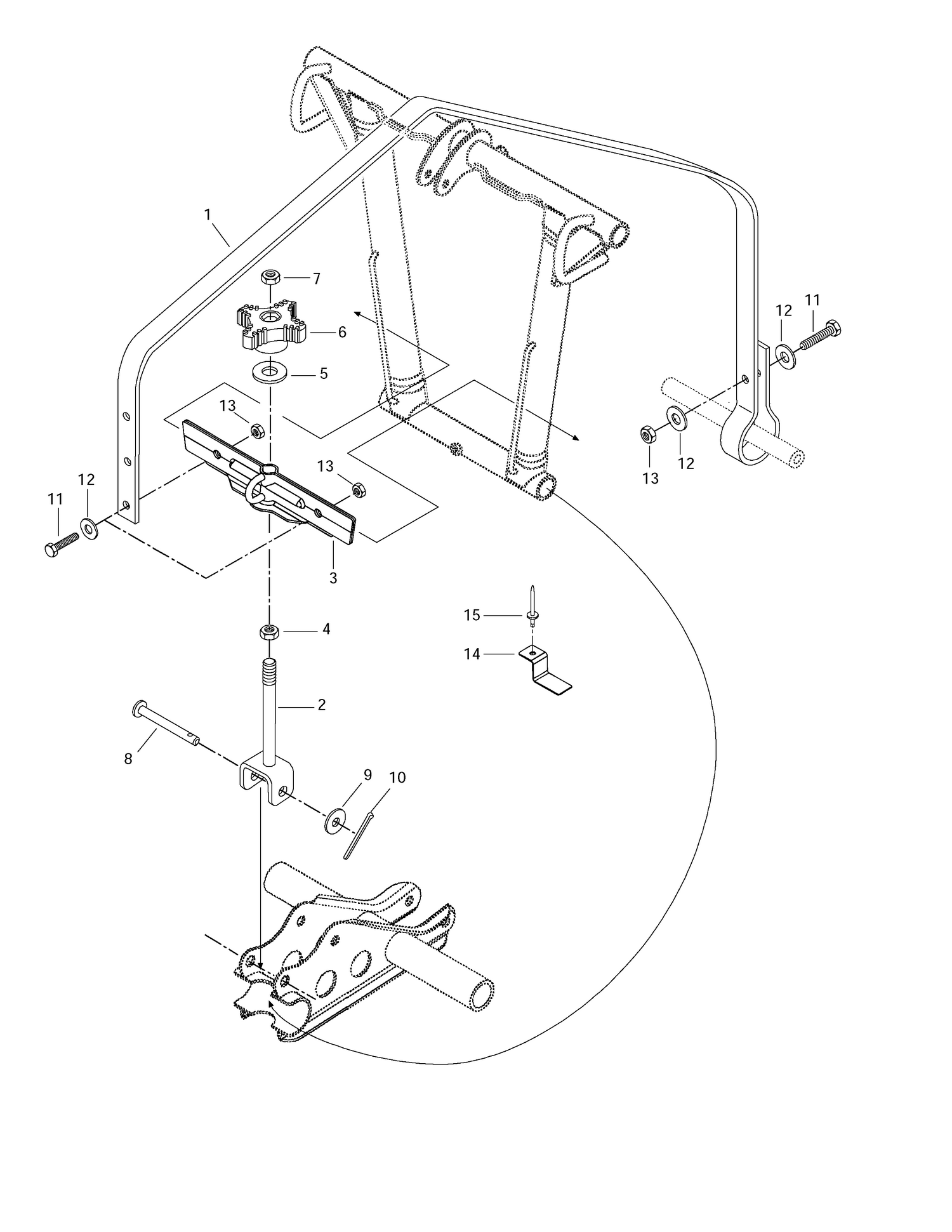

| Ref | Part Number | Description |
|---|
| 1 |
570049700 |
Strap |
| 2 |
503170000 |
Strap Link |
| 3 |
503166300 |
Stopper |
| 4 |
232006414 |
Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 5 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 6 |
572034000 |
ADJUSTER KNOB - Call your local BRP dealership |
| 7 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 8 |
414803900 |
Clevis Pin |
| 9 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 10 |
371801000 |
COTTER PIN - Call your local BRP dealership |
| 11 |
207182544 |
Hex. Screw M8 X 25 This part replaces 222082565. |
| 12 |
234082410 |
Flat Washer 8 mm This part replaces 224080251. |
| 13 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 14 |
503176600 |
Guide Stopper |
