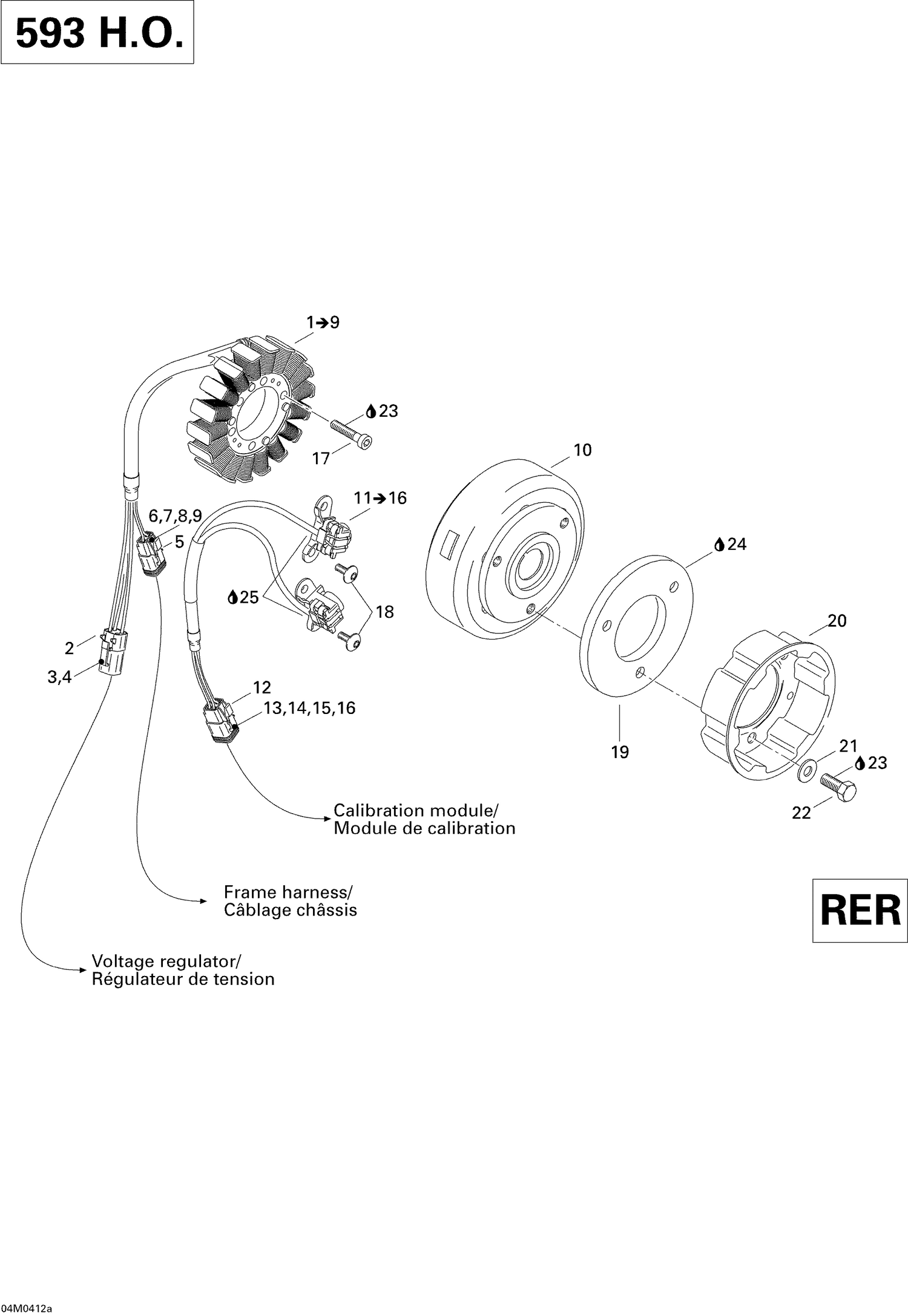

03- Magneto (12V, 360W) (593 HO)
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 278001473 | Female Terminal Housing, 4 Circuits |
| 3 | 515175568 | Male Terminal |
| 4 | 278001474 | Female Lock, 4 Circuits |
| 5 | 515175670 | Female Terminal Housing, 2 Circuits |
| 6 | 278000632 | Female Terminal |
| 7 | 278001661 | FEMALE TERMINAL - Call your local BRP dealership |
| 8 | 515175675 | Female Lock, 2 Circuits |
| 9 | 293000052 | Sealing Cap |
| 10 | 410922966 | Flywheel |
| 12 | 515175672 | CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership |
| 13 | 278000632 | Female Terminal |
| 14 | 278000661 | Female Terminal |
| 15 | 515175677 | MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 16 | 293000052 | Sealing Cap |
| 17 | 205063044 | Socket Head Screw M6 X 30 |
| 18 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 19 | 420866756 | Flywheel |
| 20 | 420852533 | Starting Pulley This part replaces 420852532. |
| 21 | 420827405 | Flat Washer |
| 22 | 207182044 | Hex. Screw M8 X 20 |
| 23 | 293800060 | Loctite 243, 10 ml |
| 24 | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
