Parts Catalog

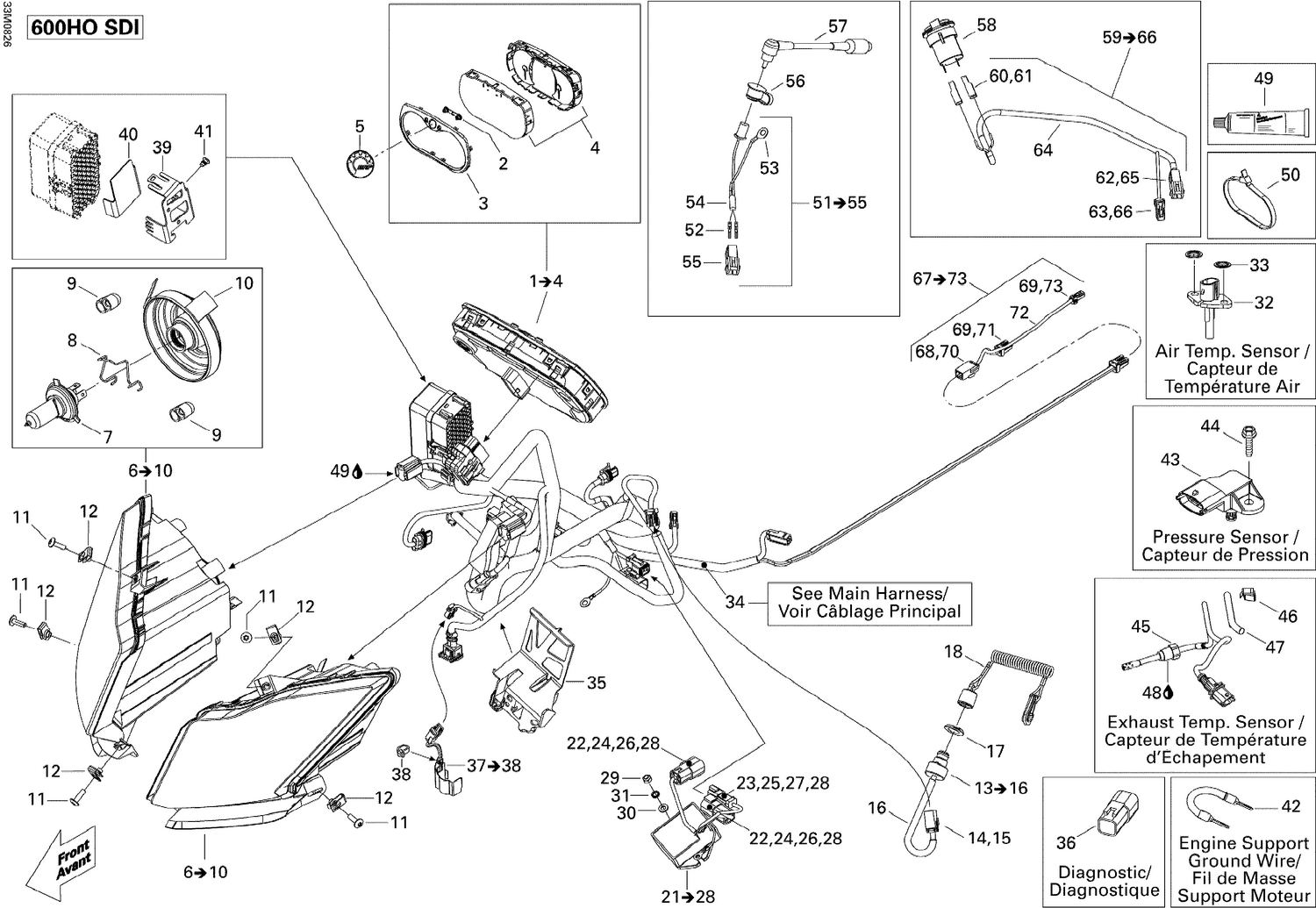

10- Electrical System

Parts (65)

Ref	Part Number	Description
2	415129355	Speedometer Button This part replaces 415129347.
3	415129348	Gauge Ring
4	415129349	Lens
5	516006224	BRP Logo 20MM x 2MM This part replaces 219902677.
7	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 )
8	Not	Available As Spare Part - Bulb Holder
9	515176498	Cap
10	219800280	Rubber Cap Protector This part replaces 515176499.
11	250000722	Torx Screw M6 X 20 This part replaces 250000128.
12	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
14	515175232	Male Terminal
15	515175494	Male Housing, 3 Circuits
16	409902000	Tubing 12 mm
17	278002963	Safety Nut (DESS Switch) This part replaces 278000508.
18	515178284	DESS This part replaces 515176461.
22	278001477	FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
23	278001674	Mâle Terminal Housing, 2 Circuits
24	515175568	Male Terminal
25	278000631	Male Terminal
26	278001478	MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
27	278001672	Male Lock, 2 Circuits
28	293000052	Sealing Cap
29	232561414	Elastic Stop Nut M6
30	234061410	Flat Washer 6 mm
31	234461608	External Serrated Lock Washer 6 mm
32	515176366	Air Temperature Sensor
33	389804300	Push Nut
34	515176603	MAIN HARNESS ASS'Y - Call your local BRP dealership
35	515176513	BRACKET - Call your local BRP dealership
36	278002704	Diagnostic Connector This part replaces 278002148.
38	293750001	Tie Wrap 94 mm
39	515177549	Fuse Support - Call Your Local BRP Dealership This part replaces 515176514.
40	515176637	PROTECTOR - Call your local BRP dealership
41	390909200	Avex Rivet
42	515176358	Ground Wire
43	707000995	Pressure And Temperature Sensor This part replaces 420874650.
44	250000725	Screw M4 X 16 This part replaces 250000113.
45	514054641	Temperature Sensor This part replaces 515176490.
46	414227300	Clip
47	219704425	Tubing 6 Mm 3000Mm Long
48	219704461	LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
49	219704453	Was 293550004 Dielectric Grease, 150 g
50	293750001	Tie Wrap 94 mm
50	293750002	Tie Wrap 142 mm
50	293750008	Tie Wrap 368 mm
50	414115200	Tie-Rap 180 mm
52	515175232	Male Terminal
53	515175172	OPEN BARREL - Call your local BRP dealership
54	219704424	Vinyl Tubing, Low Temp 3000Mm Long
55	515175654	Male Terminal Housing, 2 Circuits
56	572103300	Cap
57	515175851	Extension
58	861507200	Outlet Power Kit, 12 Volts
60	409010100	Female Terminal
61	409010400	Female Terminal Housing, 1 Circuit
62	515175232	Male Terminal
63	515175231	Female Terminal
64	219704425	Tubing 6 Mm 3000Mm Long
65	515175654	Male Terminal Housing, 2 Circuits
66	515175658	Female Housing, 2 Circuits
68	515175232	Male Terminal
69	515175231	Female Terminal
70	515175494	Male Housing, 3 Circuits
71	515175495	Female Housing, 3 Circuits
72	219704425	Tubing 6 Mm 3000Mm Long
