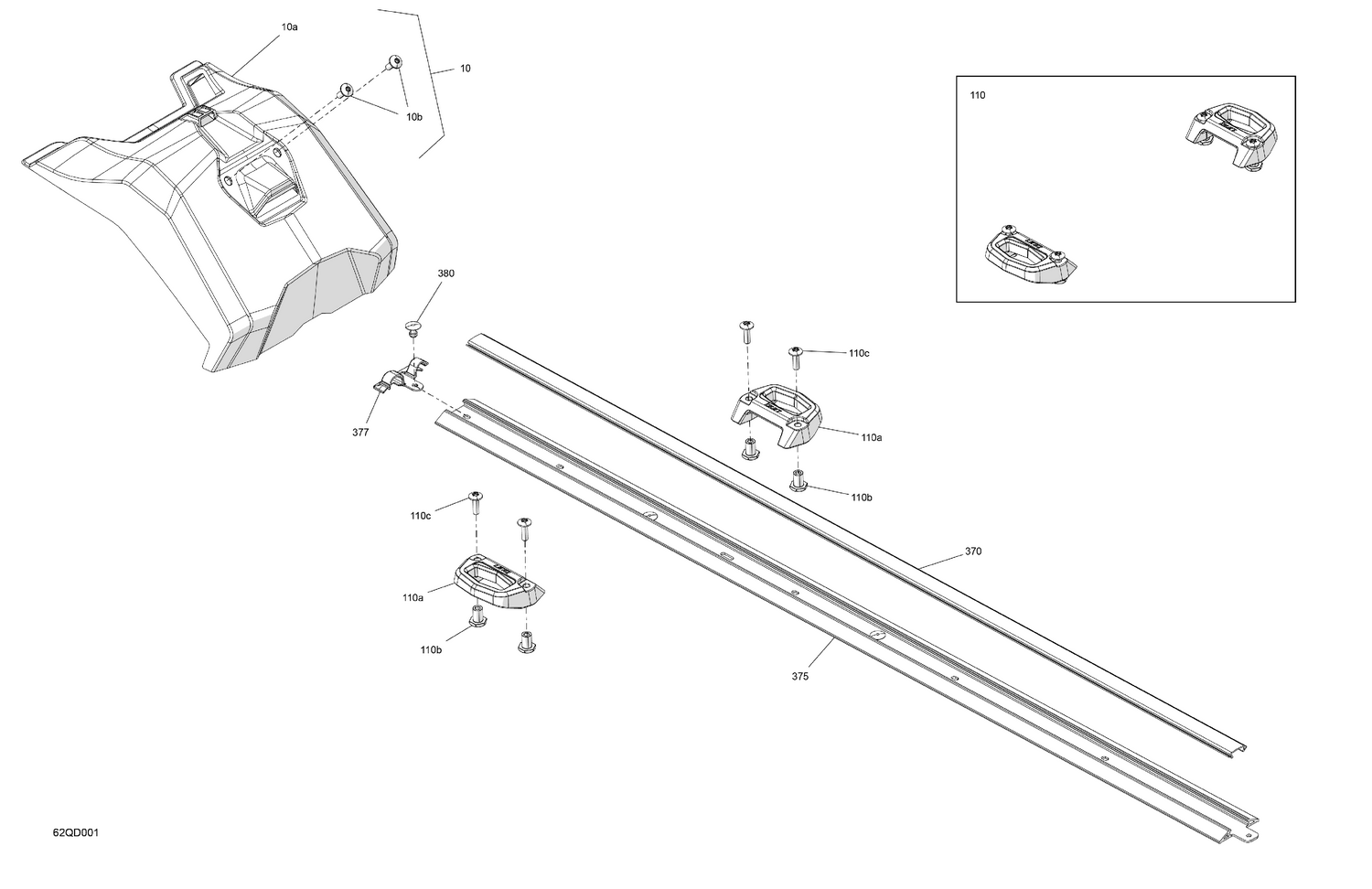

07- Body - Cargo

07- Body - Cargo

Parts (8)

RefPart NumberDescription
10a 511001210 Battery Cover
10b 250001005 Torx Screw M6 X 16
110a 860201806 Luggage Rack Base With Hardware
110b 511000822 Insert
110c 250000446 Torx Screw M6 X 20, Scotch Grip
370 520002921 Radiator Trim
375 520002930 Wire Protector
377 520001722 Cap
