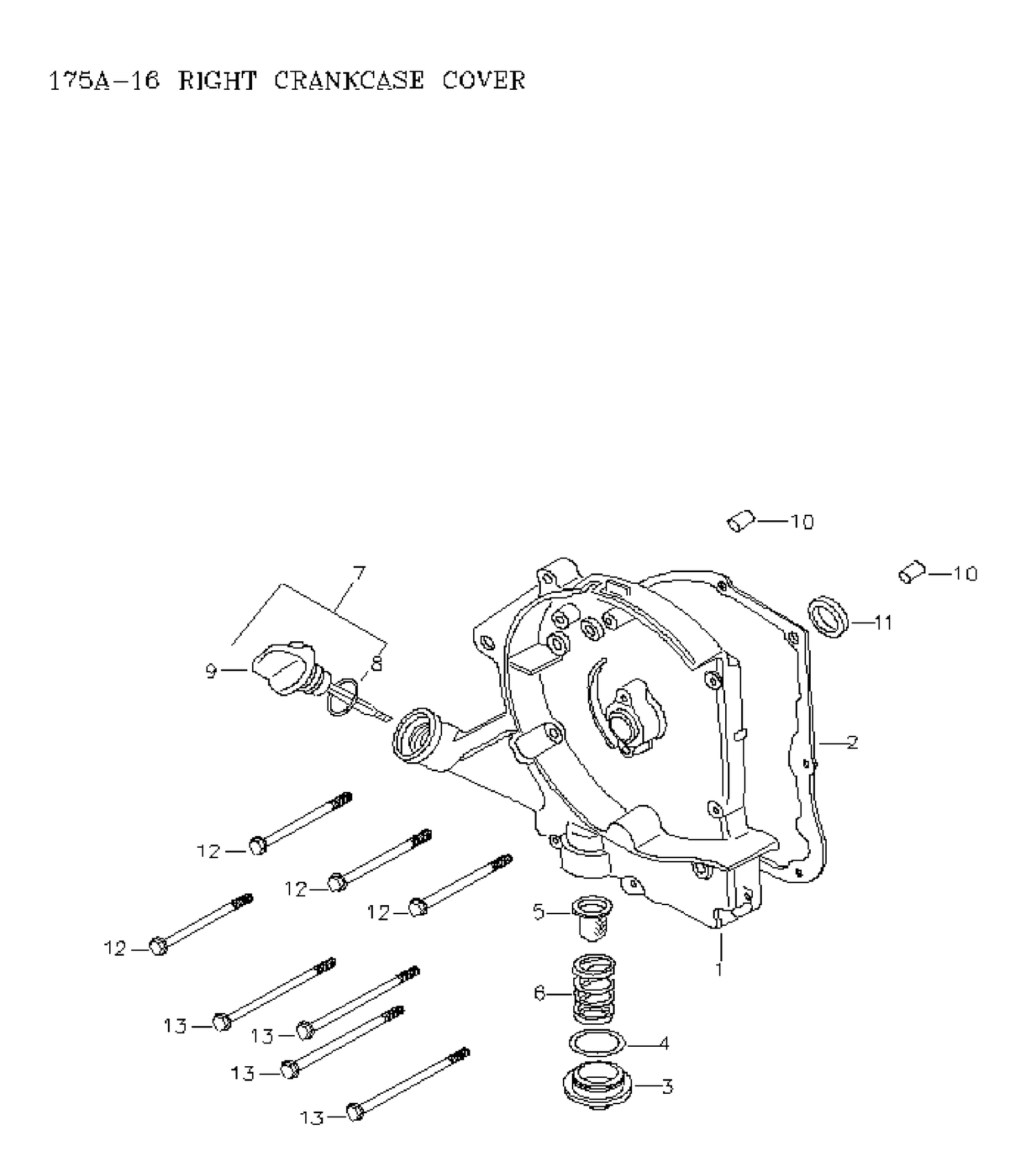

| Ref | Part Number | Description |
|---|
| 1 |
A11330133000 |
RH Crankcase Cover |
| 2 |
A11393133000 |
CRANKCASE GASKET - Call your local BRP dealership |
| 3 |
A12361120000 |
TAPPET ADJUSTING HOLE CAP ASS'Y - Call your local BRP dealership |
| 4 |
A91330120000 |
OIL RING, 30.8 MM - Call your local BRP dealership |
| 5 |
A15421120000 |
OIL FILTER SCREEN - Call your local BRP dealership |
| 6 |
A15426120000 |
OIL FILTER SPRING - Call your local BRP dealership |
| 7 |
A1565A120000 |
OIL LEVEL GAUGE - Call your local BRP dealership |
| 8 |
A91318108000 |
OIL RING - Call your local BRP dealership |
| 9 |
Not |
Available As Spare Part - Gauge |
| 10 |
A9430108140 |
Dowel Pin |
| 11 |
A9650016305 |
OIL RING - Call your local BRP dealership |
| 12 |
A960000608508 |
Hexagonal Washer Face Bolt |
