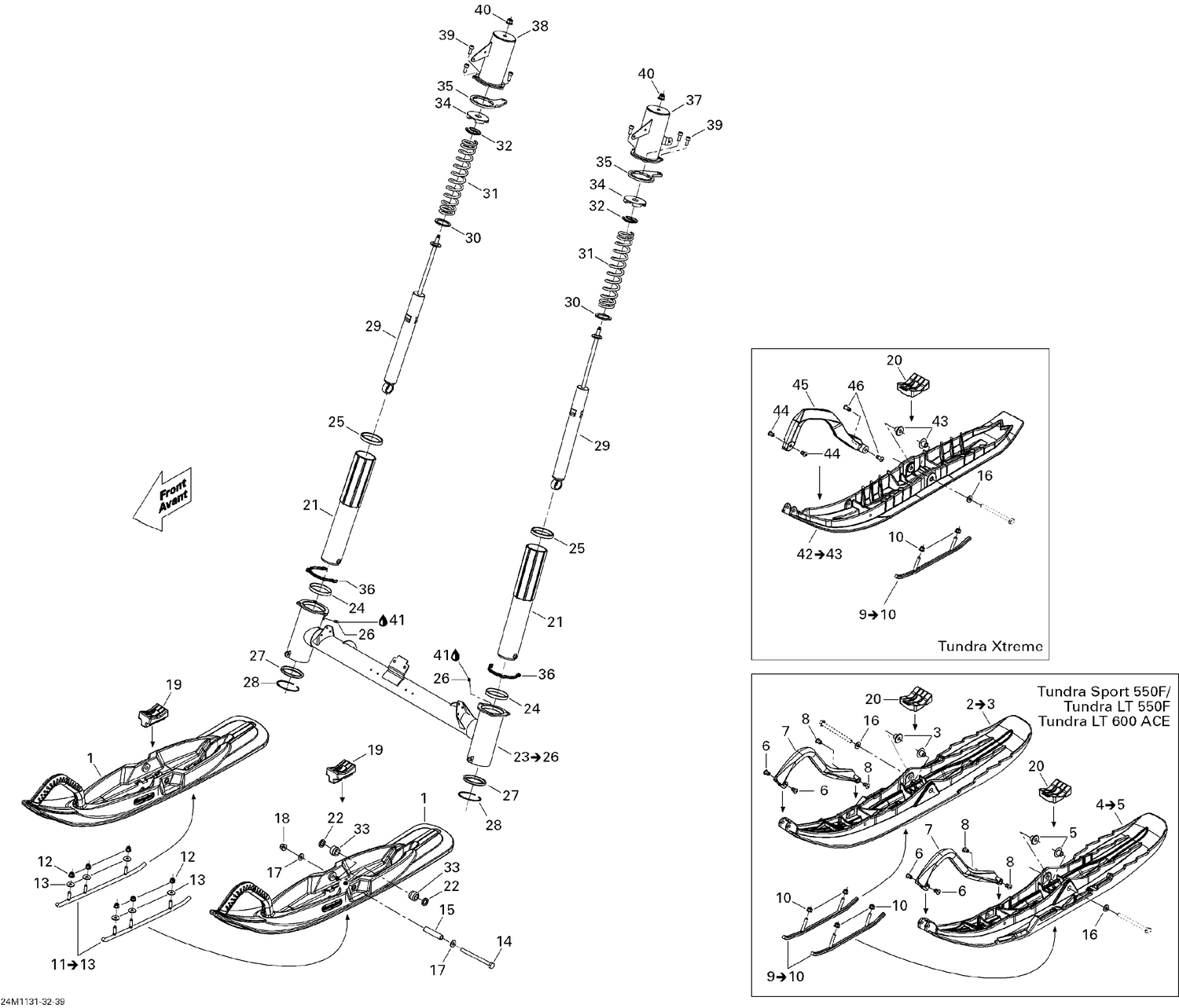

07- Front Suspension And Ski
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 3 | XXX | Not Available As Spare Parts |
| 5 | XXX | Not Available As Spare Parts |
| 6 | XXX | Not Available As Spare Parts |
| 7 | XXX | Not Available As Spare Parts |
| 8 | XXX | Not Available As Spare Parts |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 12 | XXX | Not Available As Spare Parts |
| 13 | XXX | Not Available As Spare Parts |
| 14 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 15 | 506133300 | Spacer |
| 16 | 732900049 | Washer |
| 18 | 233201414 | Hex. Flange Elastic Nut M10 |
| 20 | 505072594 | Ski Stopper |
| 21 | 505072778 | Ski Leg |
| 22 | 505072579 | Spacer |
| 24 | 414803100 | Upper Cushion |
| 25 | 414803200 | Lower Cushion |
| 26 | 408200700 | Grease Fitting |
| 27 | 505072696 | Seal Oil |
| 28 | 505072698 | Circlip |
| 29 | 505073046 | Shock |
| 30 | 505072578 | Washer |
| 31 | 505072745 | Black, Spring |
| 32 | 505072619 | Spring Stopper |
| 33 | 572034500 | Cushion |
| 34 | 570025800 | Stopper |
| 35 | 505073171 | Steering Arm This part replaces 505073054. |
| 36 | 505073983 | Spacer This part replaces 505072581. |
| 37 | 505073449 | LH Suspension Cover This part replaces 505072539. |
| 38 | 505073450 | RH Suspension Cover This part replaces 505072550. |
| 39 | 205082044 | Socket Head Screw M8 X 20 |
| 40 | 233201414 | Hex. Flange Elastic Nut M10 |
| 41 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 43 | 505071781 | Ski Bushing |
| 44 | 505071812 | Retainer 17mm long |
| 45 | 505072976 | Black, Handle |
