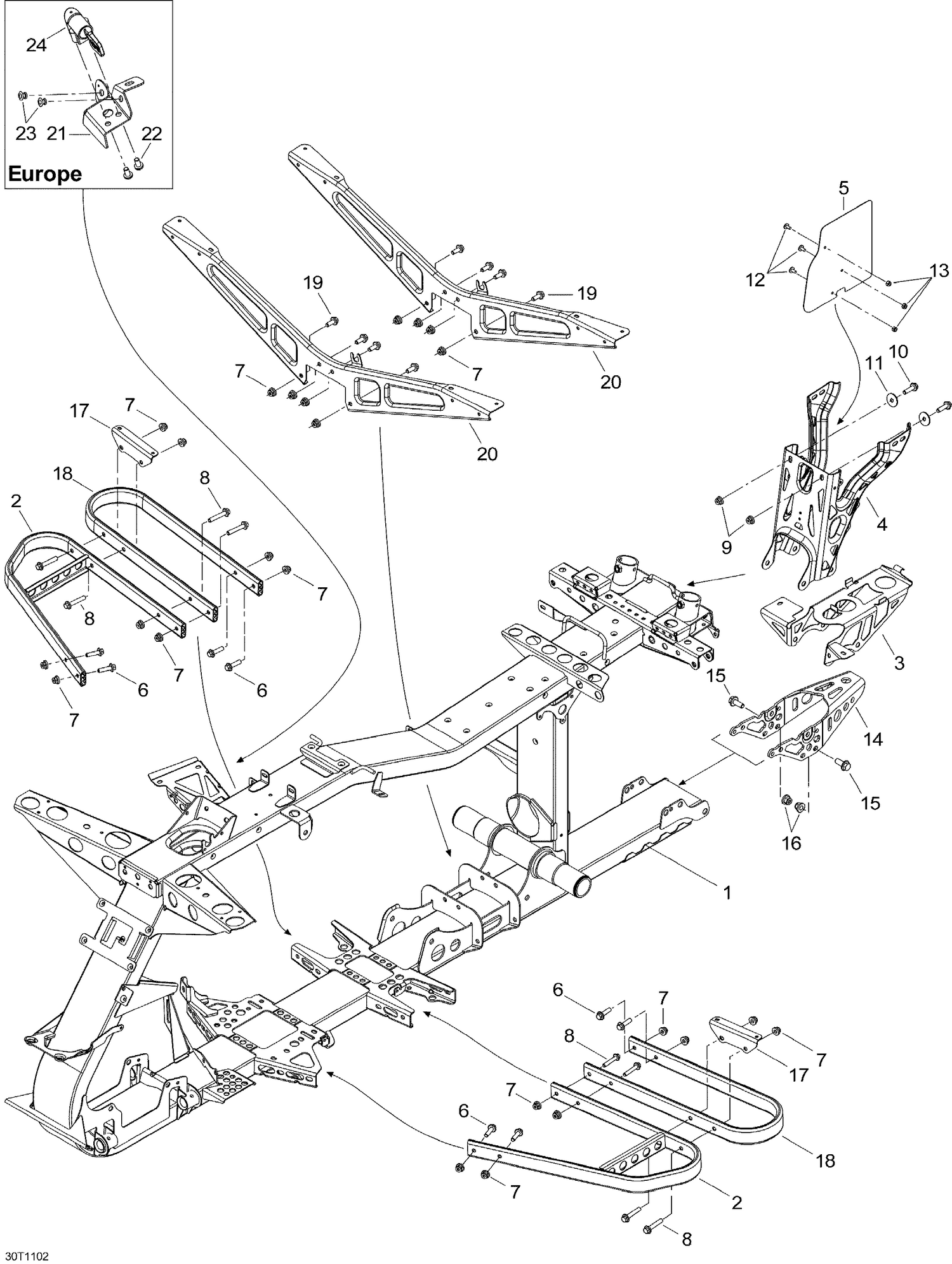

| Ref | Part Number | Description |
|---|
| 1 |
705202420 |
FRAME, BLACK - Call your local BRP dealership |
| 2 |
705202081 |
OOTBOARD ASS'Y - Call your local BRP dealership |
| 3 |
705201942 |
Battery Support Base |
| 4 |
705203842 |
Rear Support, Black This part replaces 705202142. |
| 5 |
705202394 |
Heat Shield |
| 6 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
207684544 |
Hex. Flange Screw M8 X 45 |
| 9 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 10 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 11 |
250200073 |
FLAT WASHER - Call your local BRP dealership |
| 12 |
250000127 |
Torx Screw M4 X 8 |
| 13 |
232541484 |
Elastic Stop Nut M4 |
| 14 |
715000286 |
TRAILER HOOK KIT - Call your local BRP dealership This part replaces 705202572. |
| 15 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 16 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 17 |
705202402 |
SUPPORT PLATE, BLACK - Call your local BRP dealership |
| 18 |
705201993 |
REAR FOOTREST - Call your local BRP dealership |
| 19 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 20 |
705202393 |
DIAGONAL BRACE - Call your local BRP dealership |
