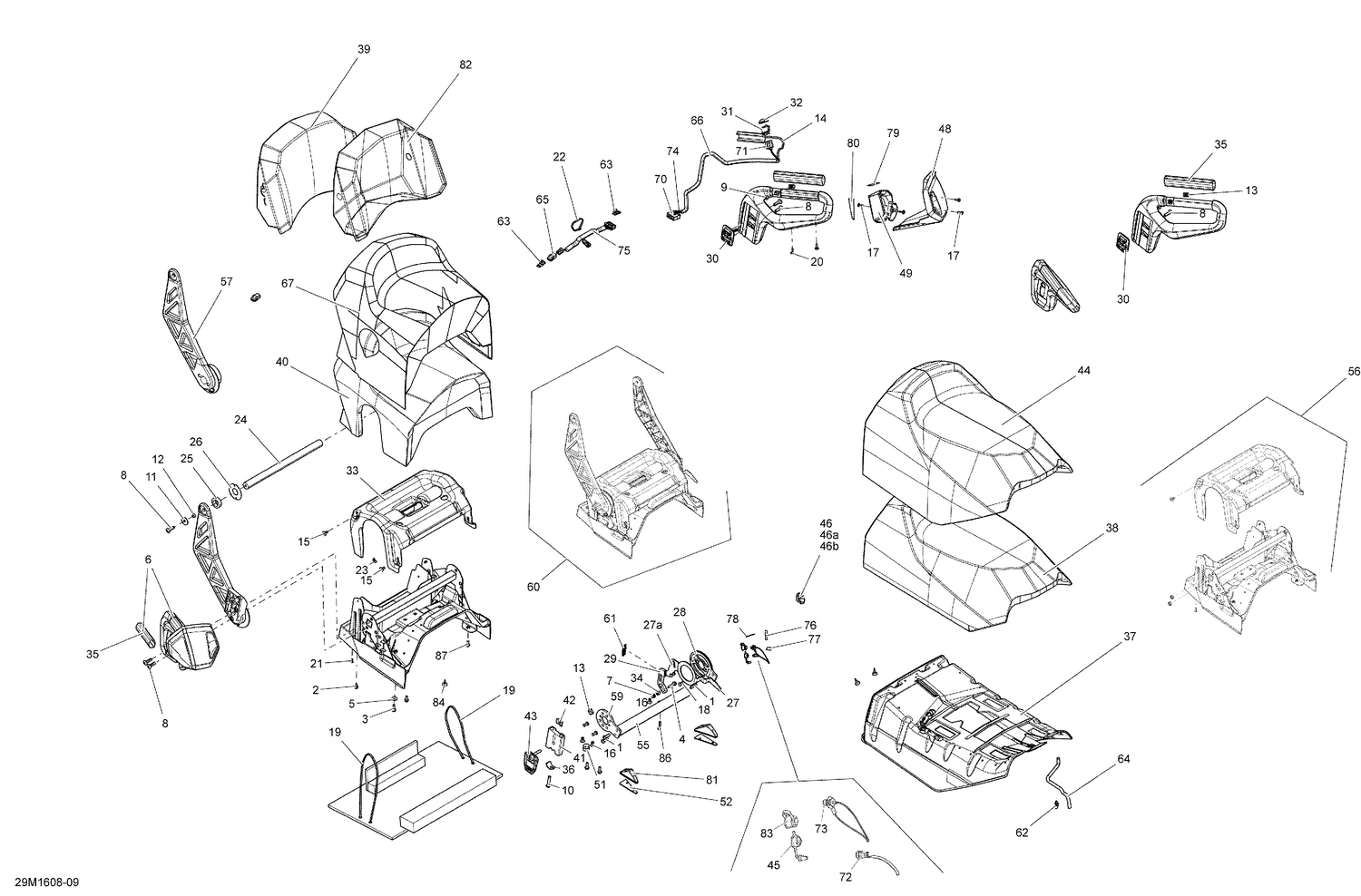

| Ref | Part Number | Description |
|---|
| 1 |
205982586 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 2 |
207561044 |
Flange Screw M6 X 10, Scotch Grip |
| 3 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 4 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 5 |
224061201 |
Flat Washer |
| 6 |
510005854 |
RH HANDLE ASS'Y - Call your local BRP dealership |
| 6 |
510006709 |
LH Handle Ass'y This part replaces 510005853. |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 8 |
250000745 |
Hex Torx Truss M8 X30 This part replaces 250000197. |
| 9 |
250000721 |
Torx Truss Screw M6 X 16 |
| 10 |
250000220 |
SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership |
| 12 |
271000558 |
Spacer |
| 13 |
293100003 |
Nut Welded, M6 |
| 14 |
515176999 |
Heated Element |
| 15 |
293150100 |
Pop Rivet 3/16" |
| 16 |
293150104 |
Pop Rivet 3/16" |
| 17 |
250000720 |
Torx Screw K50 X 16 |
| 18 |
293150129 |
STEEL RIVET - Call your local BRP dealership |
| 19 |
293750008 |
Tie Wrap 368 mm |
| 20 |
250000725 |
Screw M4 X 16 |
| 21 |
390402300 |
Pop Rivet 3/16" |
| 22 |
414115200 |
Tie-Rap 180 mm |
| 23 |
414644300 |
Black, Dart |
| 24 |
510004377 |
Upper Backrest Axle |
| 25 |
510004378 |
Rubber Shim |
| 26 |
510004379 |
Washer |
| 27 |
510004385 |
HANDLE, BLACK - Call your local BRP dealership |
| 27a |
510004419 |
GRIP - Call your local BRP dealership |
| 28 |
510004391 |
Sprocket |
| 29 |
510006338 |
Adjustment Pivot This part replaces 510004392. |
| 30 |
510006602 |
Passenger Handle Trim This part replaces 510004405. |
| 31 |
510004413 |
Rocker Switch |
| 32 |
510004414 |
Switch Protector |
| 33 |
510004423 |
Foam Support |
| 34 |
510004425 |
BUSHING - Call your local BRP dealership |
| 35 |
510004449 |
Handle Grip |
| 35 |
510005814 |
Reinforcement Handle |
| 36 |
510004565 |
HANDLE CLAMP - Call your local BRP dealership |
| 37 |
510004775 |
Front Seat Base |
| 38 |
510004777 |
Front Seat Foam |
| 39 |
510004782 |
Backrest Foam |
| 40 |
510004791 |
Rear Seat Foam |
| 41 |
510004798 |
HANDLE LINK - Call your local BRP dealership |
| 42 |
510004804 |
Stopper Block |
| 43 |
510004806 |
Lever Lock Ass'y |
| 44 |
510006117 |
SEAT COVER - Call your local BRP dealership |
| 45 |
510004950 |
Cap |
| 46 |
510004963 |
SEAT CORNER, BLACK - Call your local BRP dealership |
| 46 |
510004976 |
Seat Corner, Full Moon |
| 46a |
510004964 |
RH REAR CORNER SEAT - Call your local BRP dealership |
| 46b |
510004965 |
LH REAR CORNER SEAT - Call your local BRP dealership |
| 47 |
510005009 |
RH Air Deflector |
| 48 |
510005010 |
LH Air Deflector |
| 49 |
510005036 |
Switch Housing |
| 51 |
510005095 |
SEAT STUD - Call your local BRP dealership |
| 52 |
510005216 |
SPACER - Call your local BRP dealership |
| 54 |
510005465 |
LH Arm |
| 55 |
510005496 |
LINK TUBE - Call your local BRP dealership |
| 56 |
510005535 |
Seat Base Ass'y |
| 57 |
510005464 |
RH Arm |
| 57 |
510005539 |
RH Arm, Black |
| 59 |
510005568 |
LINK PLATE - Call your local BRP dealership |
| 60 |
510005688 |
Seat Base Ass'y |
| 61 |
514053643 |
Spring |
| 62 |
515175220 |
Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 63 |
515175283 |
Housing Support |
| 64 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 65 |
515175494 |
Male Housing, 3 Circuits |
| 66 |
219704426 |
Was 515175506 Tubing |
| 67 |
510006115 |
SEAT COVER - Call your local BRP dealership |
| 70 |
515176033 |
Male Connector |
| 71 |
515176697 |
Handle Harness |
| 72 |
515177018 |
WIRING HARNESS_HEATED SOLE - Call your local BRP dealership |
| 73 |
515176698 |
Visor Connector Harness |
| 75 |
515176766 |
Seat Harness |
| 76 |
516003612 |
VISOR AND LINER DECAL - Call your local BRP dealership |
| 77 |
516003613 |
HANDLE AND SEAT DECAL - Call your local BRP dealership |
| 78 |
516003809 |
INTENSITY SWITCH DECAL - Call your local BRP dealership |
| 79 |
516003816 |
Heated Handle Decal |
| 80 |
516003937 |
Connector Decal |
| 81 |
518325709 |
LH Seat Anchor |
| 81 |
518325710 |
RH Seat Anchor |
| 82 |
510005353 |
BACKREST COVER - Call your local BRP dealership |
| 83 |
572103300 |
Cap |
| 84 |
708000759 |
Rubber Stopper |
| 86 |
207563044 |
Hex. Flange Screw M6 X 30, Scotch Grip |
