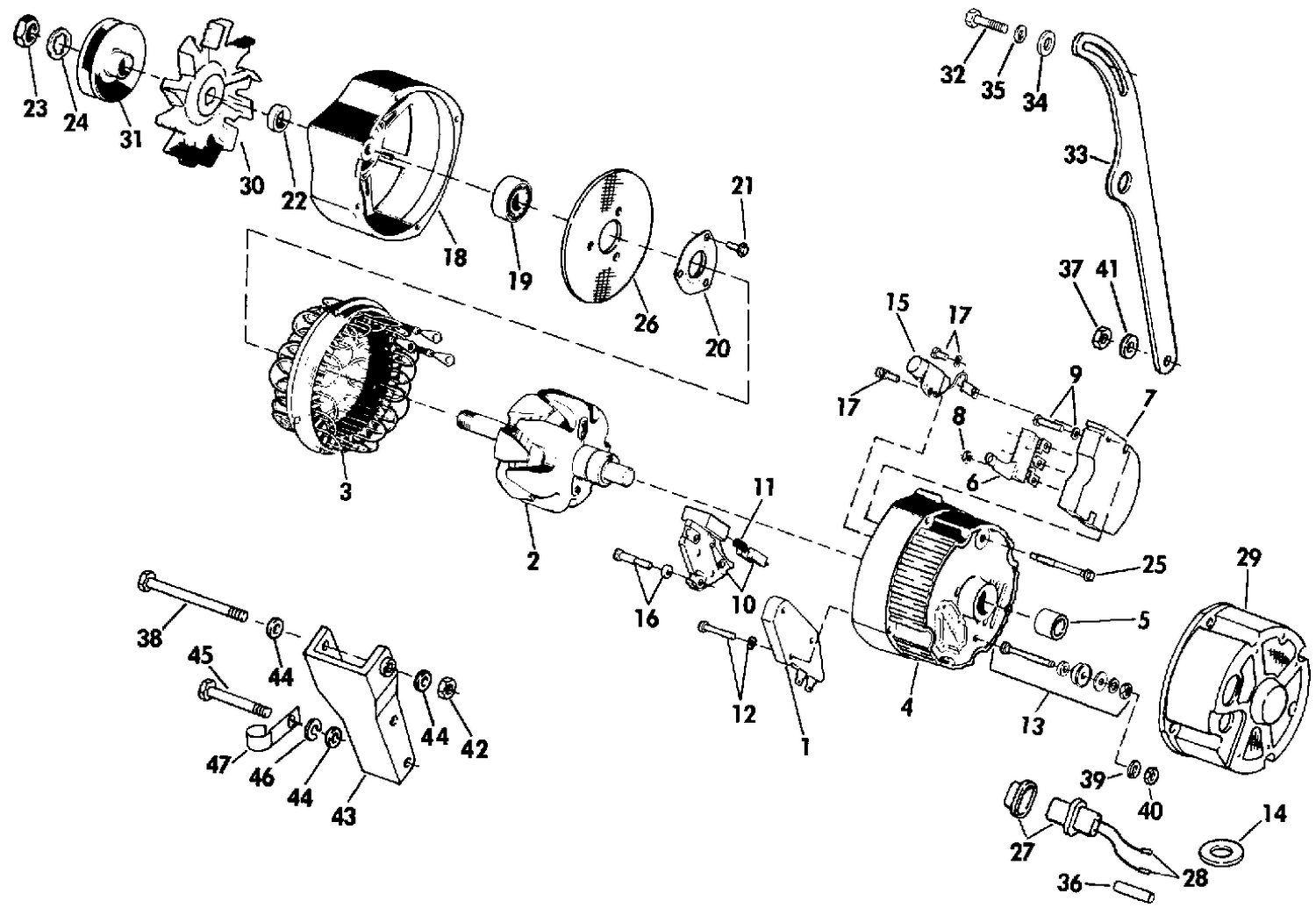

| Ref | Part Number | Description |
|---|
| 1 |
1116387 |
REGULATOR |
| 2 |
1985476 |
ROTOR ASSEMBLY |
| 3 |
1986280 |
STATOR ASSEMBLY |
| 4 |
1984460 |
FRAME, Slip ring end |
| 5 |
9436831 |
ROLLER BEARING, Slip ring end |
| 6 |
1984459 |
DIODE TRIO |
| 7 |
1984454 |
RECTIFIER BRIDGE |
| 8 |
0120622 |
NUT, Rectifier bridge |
| 9 |
1984458 |
SCREW & WASHER, Rectifier bridge |
| 10 |
1984462 |
BRUSH HOLDER & BRUSH ASSY |
| 11 |
1977357 |
SPRING, Brush |
| 12 |
1975737 |
SCREW, Brush holder, ground |
| 13 |
1846900 |
TERMINAL PACKAGE, Battery |
| 14 |
0910606 |
WASHER, Battery terminal Neoprene |
| 15 |
1978146 |
CAPACITOR & BRACKET |
| 16 |
1876681 |
SCREW ASSY, Brush holder insulated |
| 17 |
1851612 |
SCREW & LOCKWASHER, Bracket and lead |
| 18 |
1974937 |
FRAME, Drive end |
| 19 |
1974861 |
BALL BEARING, Drive end |
| 20 |
1911263 |
PLATE, Ball bearing, retainer, drive end |
| 21 |
1965104 |
SCREW, Ball bearing retainer plate |
| 22 |
1978250 |
COLLAR, Shaft, drive end |
| 23 |
1915172 |
NUT, Shaft, drive end |
| 24 |
1941978 |
LOCKWASHER, Shaft, nut, drive end |
| 25 |
1956975 |
THRU BOLT |
| 26 |
0982861 |
SCREEN ASSEMBLY, Drive end |
| 27 |
0982864 |
CONNECTOR ASSEMBLY |
| 29 |
0982863 |
COVER ASSEMBLY, Slip rind end |
| 30 |
0800594 |
FAN |
| 31 |
1978068 |
PULLEY |
| 32 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 33 |
3850460 |
BRACE, Alternator This part replaces 0910370. |
| 33 |
3852761 |
BRACE, Alternator This part replaces 0910373. |
| 36 |
0510981 |
TUBE, Alternator leads |
| 38 |
0306837 |
SCREW Bracket |
| 39 |
0311407 |
LOCKWASHER, Lever to shaft |
| 40 |
0200653 |
NUT, Stud alt. output |
| 42 |
0305496 |
LOCKNUT, Alternator to bracket |
| 43 |
3853884 |
BRACKET, Alternator This part replaces 0982646. |
| 43 |
3861465 |
Bracket & Bushing This part replaces 0983994. |
| 45 |
0306836 |
SCR,Altnr brkt |
| 46 |
0120177 |
L'WASHER, Alternator to brkt |
| 0983424 |
0983424 |
ALTERNATOR ASSEMBLY |
