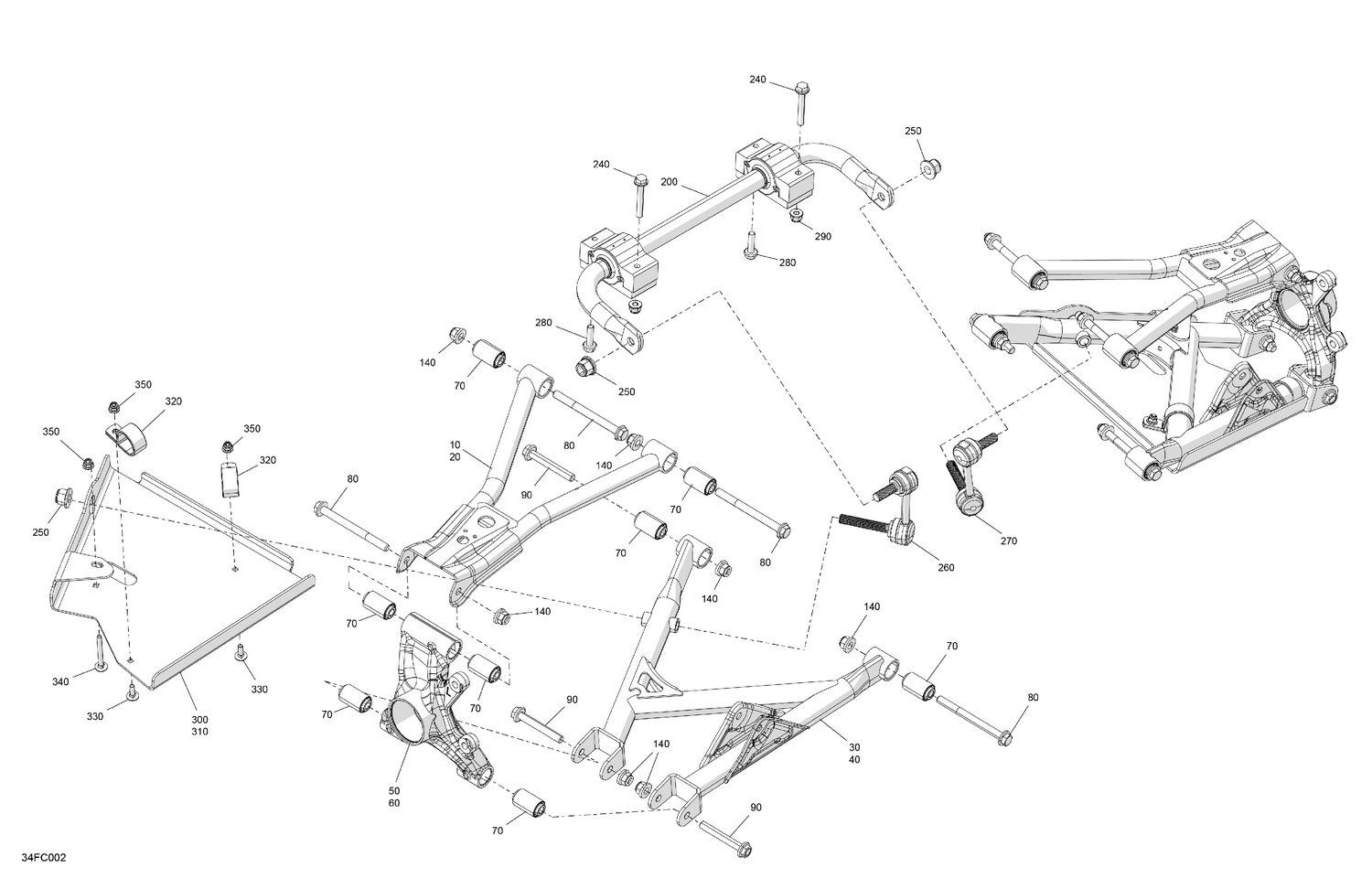

05- Suspension - Rear Components
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706003510 | LH Upper Suspension Arm |
| 20 | 706003511 | RH Upper Suspension Arm |
| 30 | 715010681 | LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003512. |
| 40 | 715010680 | RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003513. |
| 50 | 706004297 | LH Rear Knuckle |
| 60 | 706004298 | RH Rear Knuckle |
| 70 | 706004511 | Suspension Arm Bushing |
| 80 | 230601046 | Hex Flange Screw DIN.6921 |
| 90 | 207607046 | Hex. Flange Screw M10 X 70 |
| 140 | 233201436 | Hex. Flange Elastic Nut M10 |
| 200 | 706004983 | Stabilizer Bar Ass'y |
| 240 | 207685544 | Hex. Flange Screw M8 X 55 |
| 250 | 233221414 | Hex. Flange Elastic Nut M12 |
| 260 | 706205088 | LH Rear Stabilizer Link |
| 270 | 706205089 | RH Rear Stabilizer Link |
| 280 | 250001073 | Hex. Flange Screw M8 X 30 Scotch Grip |
| 290 | 233281414 | Hex. Flange Elastic Nut M8 |
| 300 | 706003924 | LH Rear Suspension Arm Guard |
| 310 | 706003925 | RH Rear Suspension Arm Guard |
| 320 | 706005364 | Fastener |
| 330 | 250000677 | Carriage Bolt M6 X 20 |
| 340 | 207766054 | Carriage Bolt M6 X 60 |
