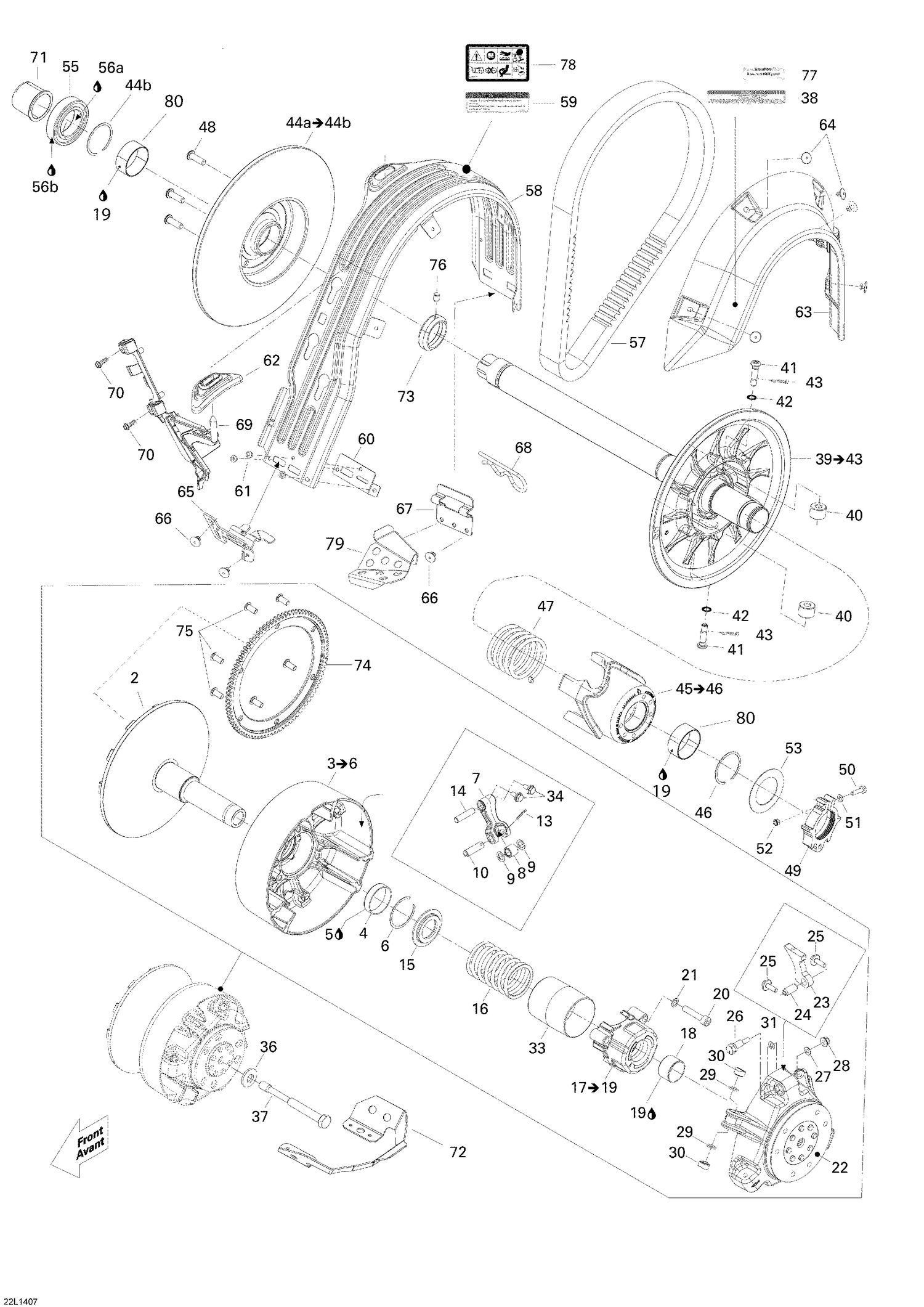

05- Pulley System
Parts (76)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Drive Pulley Ass'y |
| 2 | 417222937 | Fixed Flange Ass'y |
| 3 | 417222181 | Sliding Flange Ass'y |
| 4 | 417223086 | Bushing |
| 5 | 619600010 | Loctite primer N7649 |
| 5 | 619600012 | Loctite 680 |
| 6 | 293370037 | Circlip |
| 7 | 417223888 | Lever Ass'y |
| 8 | 417222947 | Roller |
| 9 | 417004302 | Stopper Washer |
| 10 | 417222594 | Long full pin 18.8g |
| 13 | 250400060 | Cotter Pin |
| 14 | 417223164 | Lever Axle |
| 15 | 417222312 | Spring Seat |
| 17 | 417007500 | Spring Cover Ass'y |
| 18 | 417009204 | Bushing |
| 19 | 619600012 | Loctite 609, 10 ml |
| 20 | 205084044 | Socket Head Screw M8 X 40 |
| 21 | 250200009 | Lock Washer 8 mm |
| 22 | 417223669 | Governor Cup Ass'y |
| 23 | 417222444 | Ramp 600 |
| 24 | 250400050 | Spring Pin |
| 25 | 250000418 | Hex. Flanged Scew M6 X 18 |
| 26 | 417223501 | Calibration Screw |
| 27 | 234061410 | Flat Washer 6 mm |
| 28 | 33026 | Hex. Flanged Nut M6 |
| 29 | 732401030 | O-Ring |
| 30 | 417223021 | Slider Shoe |
| 31 | 417005600 | Washer |
| 33 | 417009205 | Guard |
| 34 | 250000416 | Hex. Forming Screw M6 X 12 |
| 36 | 250200006 | Spring Washer 14 mm |
| 37 | 417120000 | Drive Pulley Bolt |
| 38 | 516005503 | Decal notice, Drive pulley bolt |
| 39 | 417127409 | Fixed Flange Ass'y |
| 40 | 417127189 | Roller |
| 41 | 417127294 | Stud |
| 42 | 250200009 | Lock Washer 8 mm |
| 43 | 250400061 | Spring pin |
| 44a | 417127317 | Sliding Flange Ass'y |
| 44b | 293370049 | Spacer (1.91/2.21mm) |
| 45 | 417127411 | Cam Ass'y (40º) |
| 46 | 293370049 | Spacer (1.91/2.21mm) |
| 47 | 417127243 | Spring (White / White) |
| 48 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 49 | 415129604 | Pulley Adjuster Ass'y |
| 50 | 205052544 | Socket Head Screw M10 x 1.5 |
| 51 | 234051410 | Flat Washer M5 |
| 52 | 232551414 | Elastic Stop Nut M5 |
| 53 | 417127155 | Washer |
| 55 | 504152574 | Ball Bearing |
| 56a | 413703100 | Loctite 609 |
| 56b | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 57 | 417300551 | Drive Belt This part replaces 417300383. |
| 58 | 417300382 | Belt Guard |
| 59 | 516004649 | Security label, Belt Guard |
| 60 | 417300380 | Reinforcement |
| 61 | 390909200 | Avex Rivet |
| 62 | 417300381 | Grommet |
| 63 | 417300356 | Side Protector |
| 64 | 293150103 | Pop Rivet 3/16 |
| 65 | 417300364 | Bracket |
| 66 | 293150104 | Pop Rivet 3/16 |
| 67 | 417300363 | Bracket |
| 68 | 114045200 | Hair Pin |
| 69 | 417300396 | BELT GUARD BRACKET - Call your local BRP dealership |
| 70 | 241151640 | Hex. Flanged Screw K50 X 16 |
| 71 | 504153054 | Protective Rubber |
| 72 | Not | Available As Spare Part - Pulley cover plate |
| 73 | 417300419 | RETAINER RING - Call your local BRP dealership |
| 74 | 417225070 | Ring Gear_Starter This part replaces 417223042. |
| 75 | 250000751 | Screw-Torx Button Head M8 X 16 S.Grip This part replaces 250000243. |
| 76 | 417127203 | SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership |
| 77 | 516005503 | Decal Notice |
| 78 | 516003919 | Warning label (EU models) |
| 79 | 518325626 | Brake Hose Cover |
