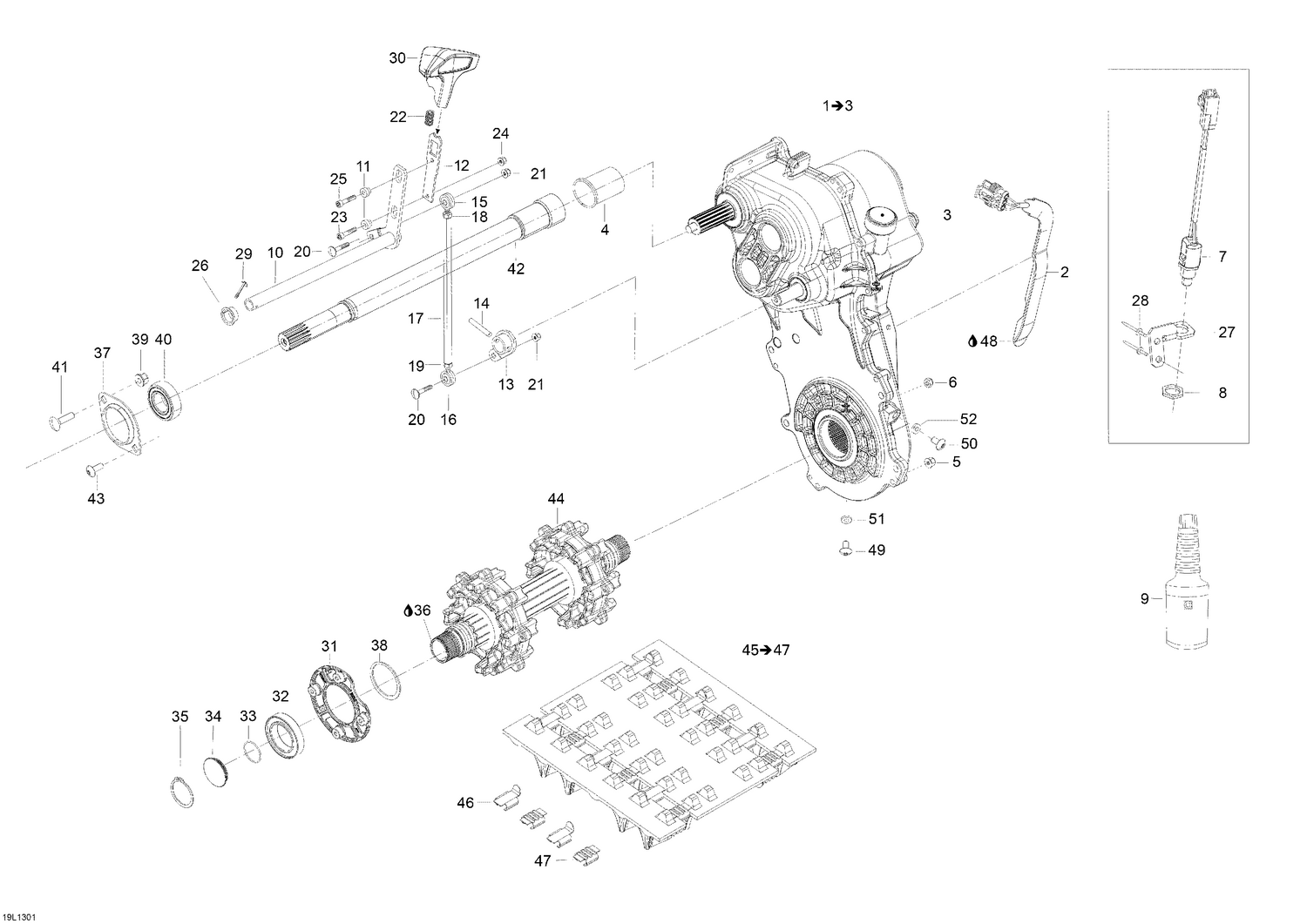

05- Drive System
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 504152896 | Sensor |
| 3 | 619230027 | Cap, Oil |
| 4 | 504153054 | Protective Rubber |
| 5 | 233281414 | Hex. Flange Elastic Nut M8 |
| 6 | 232581414 | Hex. Elastic Stop Nut M8 |
| 7 | 515176472 | Switch |
| 8 | 250000373 | BRASS NUT - Call your local BRP dealership |
| 9 | 619590182 | OIL-GEAR SYNTHETIC (12 x 1l) - Call your local BRP dealership |
| 10 | 504153288 | Shifter This part replaces 504152887. |
| 11 | 504152787 | Sleeve |
| 12 | 504153287 | Shifter Arm This part replaces 504152831. |
| 13 | 504152834 | WELDED LEVER - Call your local BRP dealership |
| 14 | 41012 | Spring Pin 6 x 30 |
| 15 | 707000689 | RH BALL JOINT - Call your local BRP dealership |
| 16 | 707000690 | LH BALL JOINT - Call your local BRP dealership |
| 17 | 504152836 | ROD - Call your local BRP dealership |
| 18 | 232061414 | Nut M6 |
| 19 | 232066414 | LH HEX. NUT M6 - Call your local BRP dealership |
| 20 | 207762044 | Bolt Carriage M6 x 20 |
| 21 | 232561434 | Elastic Stop Nut M6 |
| 22 | 504152882 | Spring |
| 23 | 205052544 | Socket Head Screw M10 x 1.5 |
| 24 | 233251434 | Flanged Elastic Nut M5 |
| 25 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 26 | 504152890 | Bushing |
| 27 | 504152902 | Sensor Bracket |
| 28 | 293150163 | Rivet Hucklok |
| 29 | 250400035 | Cotter Pin |
| 30 | 504152837 | Shifter Handle |
| 31 | 504153886 | Retaining Ring This part replaces 504152949. |
| 32 | 293350059 | Ball Bearing |
| 33 | 293300122 | O-Ring |
| 34 | 504152619 | Magnetic Cap |
| 35 | 504152572 | Circlip |
| 36 | Not | Available As Spare Part - Synthetic Grease |
| 37 | 504153089 | BEARING HOUSING ASS'Y - Call your local BRP dealership |
| 38 | 504153207 | Shim |
| 39 | 233281414 | Hex. Flange Elastic Nut M8 |
| 40 | 293350074 | Ball Bearing |
| 41 | 207783044 | Bolt Carriage M8 x 30 |
| 42 | 504152963 | Counter Shaft |
| 43 | 250000746 | Torx Truss M/S M8 X 16 This part replaces 250000198. |
| 44 | 504153106 | AXLE-DRIVE ASSY - Call your local BRP dealership |
| 46 | 5318323 | Guide |
| 47 | Not | Available As Spare Part - Cleat |
| 48 | 293800066 | SEALANT LOCTITE SI 5900 - Call your local BRP dealership |
| 49 | 619230037 | Allen Screw M8 x 10 |
| 50 | 619230038 | Allen Screw M10 x 16 |
