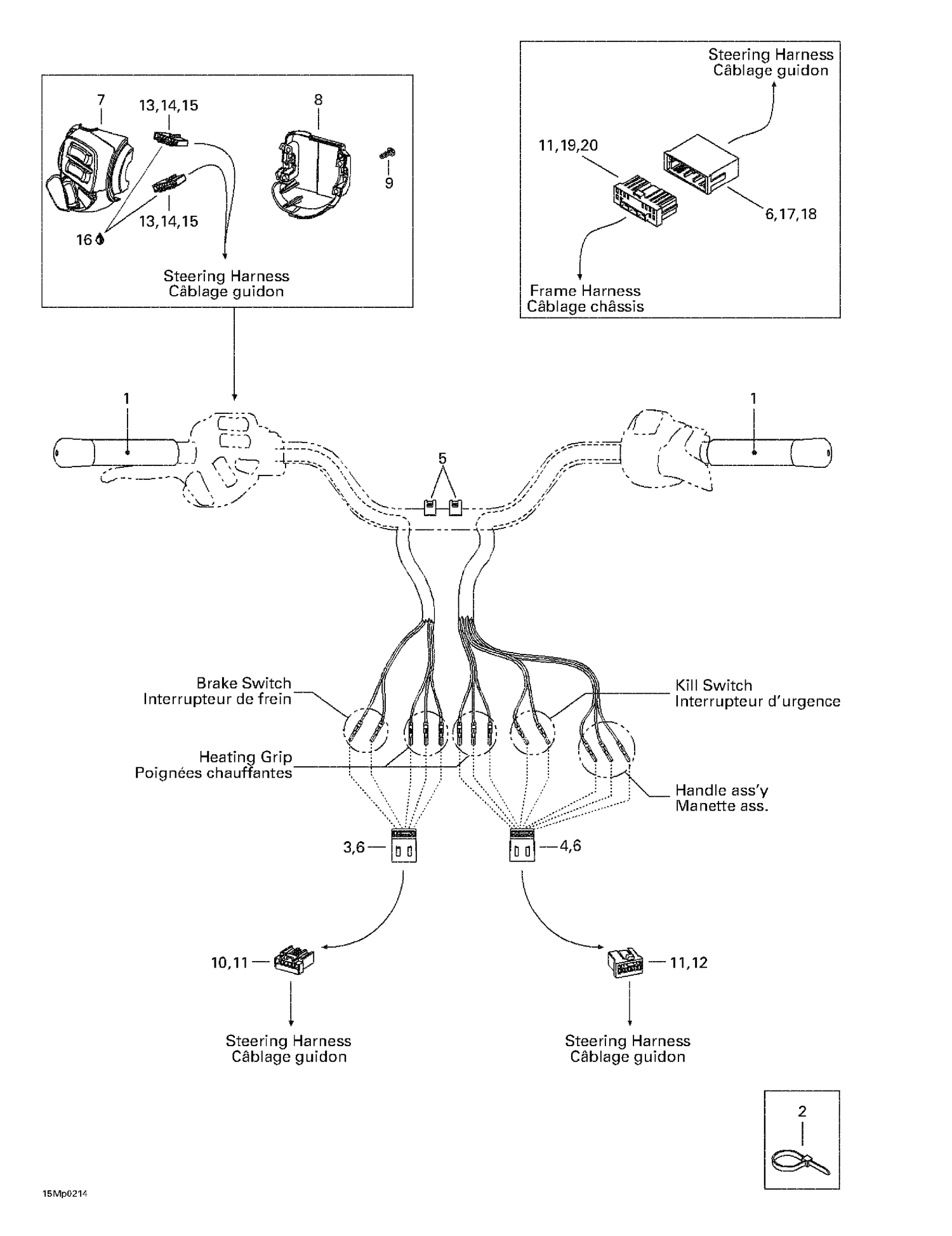

| Ref | Part Number | Description |
|---|
| 1 |
515175815 |
Heater |
| 2 |
293750002 |
Tie Wrap 142 mm |
| 3 |
515175662 |
Male Terminal Housing, 6 Circuits |
| 4 |
515175817 |
Male Terminal Housing, 8 Circuits |
| 5 |
515175816 |
Housing Support |
| 6 |
515175232 |
Male Terminal |
| 7 |
515177022 |
LH Housing This part replaces 515175479. |
| 8 |
515175926 |
Switch Housing Plate This part replaces 515175833. |
| 9 |
250000263 |
Torx Screw #8-18 This part replaces 250000100. |
| 10 |
515175543 |
Female Terminal Housing, 6 Circuits |
| 11 |
515175231 |
Female Terminal |
| 12 |
515175819 |
Female Terminal Housing, 8 Circuits |
| 14 |
515175809 |
FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership |
| 15 |
515175808 |
FEMALE TERMINAL - Call your local BRP dealership |
| 16 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 17 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 18 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 19 |
515175350 |
Female Terminal Housing, 13 Circuits |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
