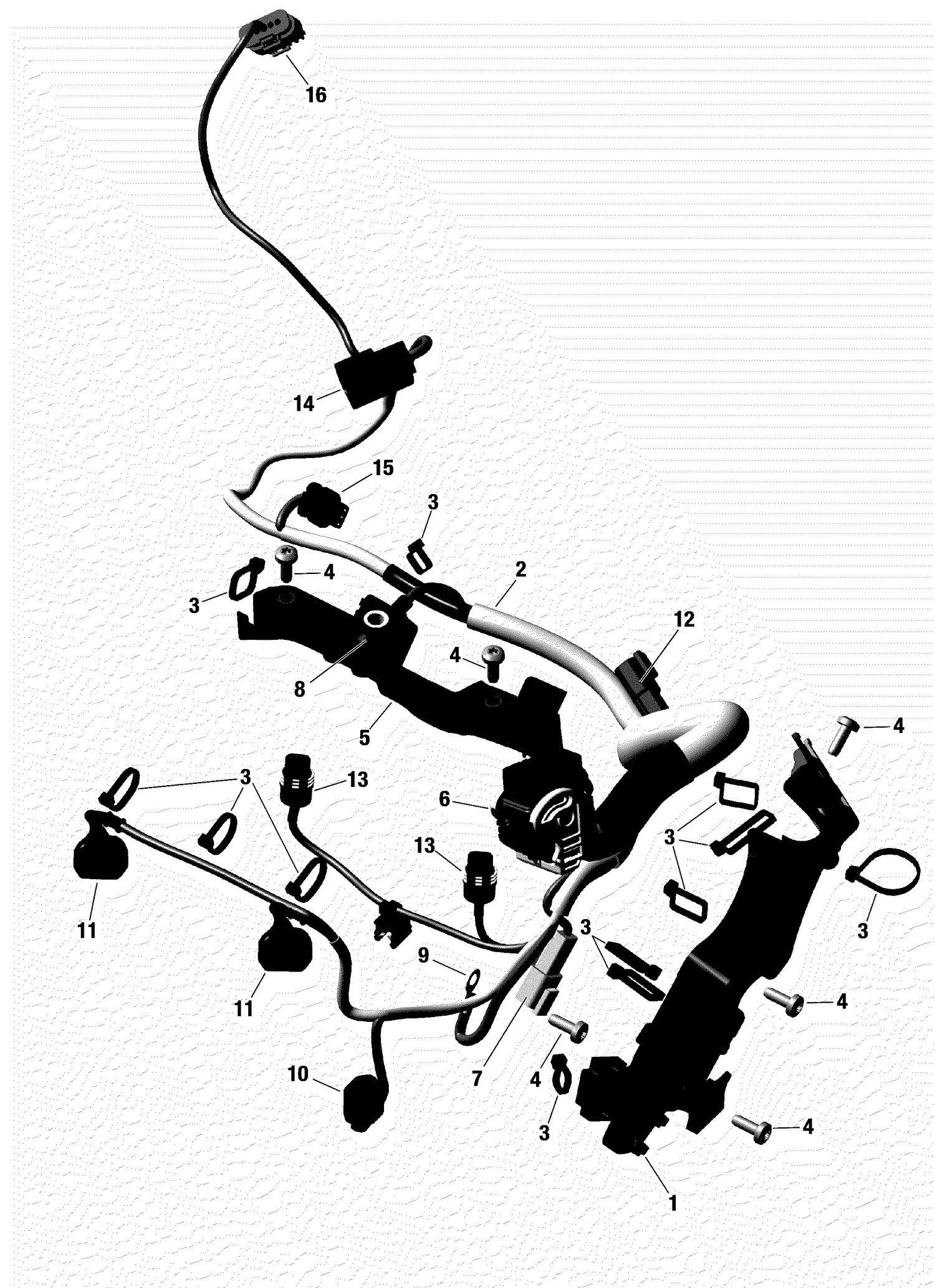

10- Engine Harness - 598 RS
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420260161 | Harness Support |
| 2 | 420864451 | Wiring Harness |
| 3 | 293750002 | Tie Wrap 142 mm |
| 4 | 420640324 | Torx Screw M6 X 16 |
| 5 | 420260166 | Harness Support |
| 6 | XXX | Not Available As Spare Parts |
| 7 | 409206900 | Male Housing, 2 Circuits |
| 8 | 278001005 | Male Housing, 2 Circuits |
| 9 | XXX | Not Available As Spare Parts |
| 10 | 415130195 | Connector |
| 11 | 515176129 | Female Housing |
| 12 | 409206900 | Male Housing, 2 Circuits |
| 13 | 409209500 | Female Housing, 2 Circuits |
| 14 | 515178202 | Coil Connector |
| 15 | XXX | Not Available As Spare Parts |
