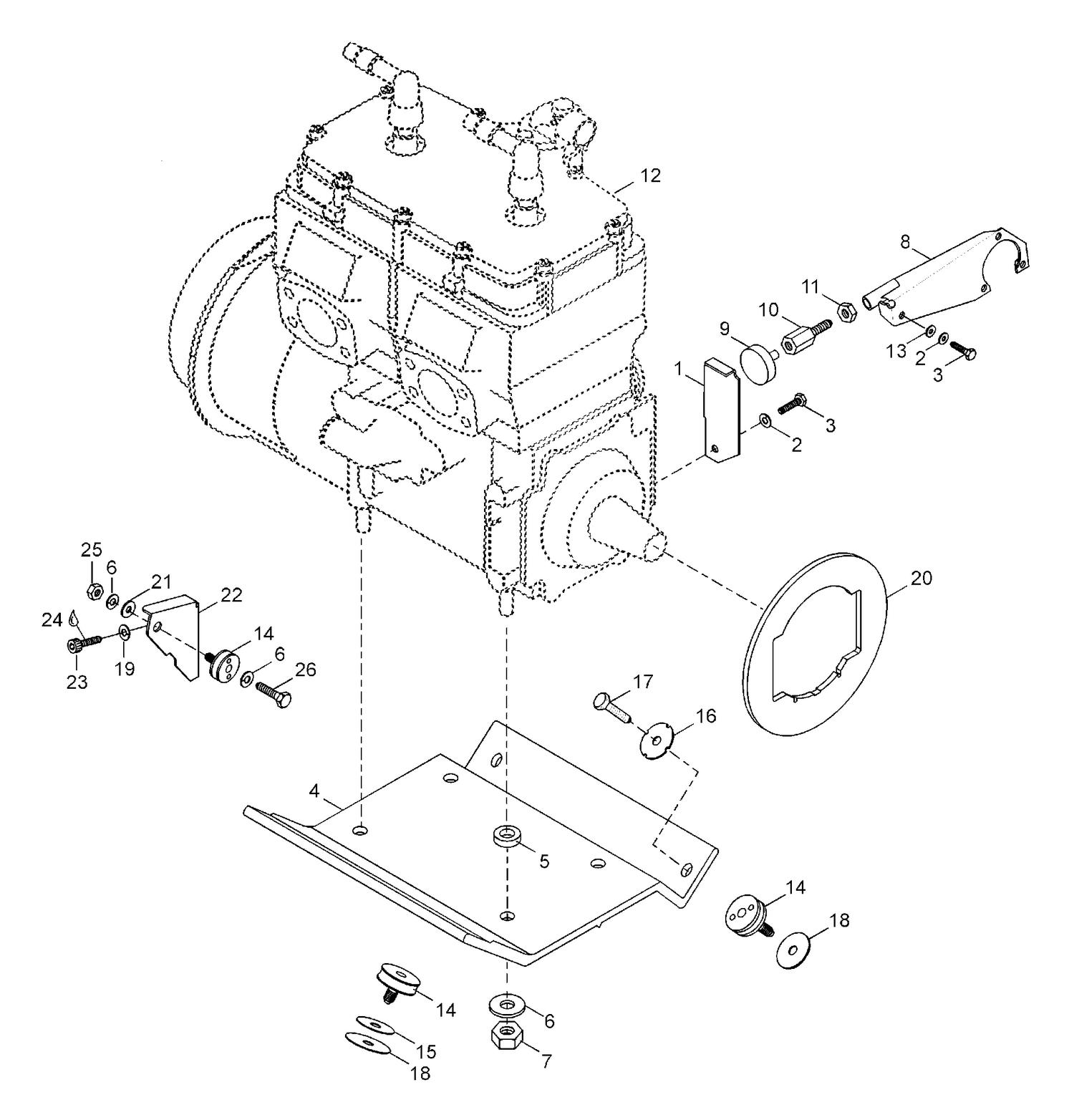

01- Engine Mount Plate
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5342465 | Stopper plate |
| 2 | 20014 | Washer |
| 2 | 20052 | Washer |
| 3 | 40029 | Screw M6x16 |
| 3 | 40035 | Screw M8x16 |
| 4 | 5343084 | Engine support |
| 5 | 20023 | Washer |
| 6 | 20068 | Lock washer |
| 7 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 8 | 5341685 | Support plate weld. |
| 9 | 570025100 | Stopper |
| 10 | 517244200 | Screw |
| 11 | 33063 | Nut M12 |
| 12 | 11000046 | Engine 583RAVE |
| 13 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 14 | 5441913 | Rubber insulator |
| 15 | 20080 | Washer |
| 16 | 512056700 | Lock washer |
| 17 | 40228 | Screw M10x16 |
| 18 | 546221 | Washer |
| 19 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 20 | 5342056 | Rubber grommet |
| 21 | 20023 | Washer |
| 22 | 5343853 | Engine support, front |
| 23 | 40066 | Allen sc. M8 x 16 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 24 | 293800060 | Loctite 243, 10 ml This part replaces 413703000. |
| 25 | 33012 | Nut elastic M10 |
