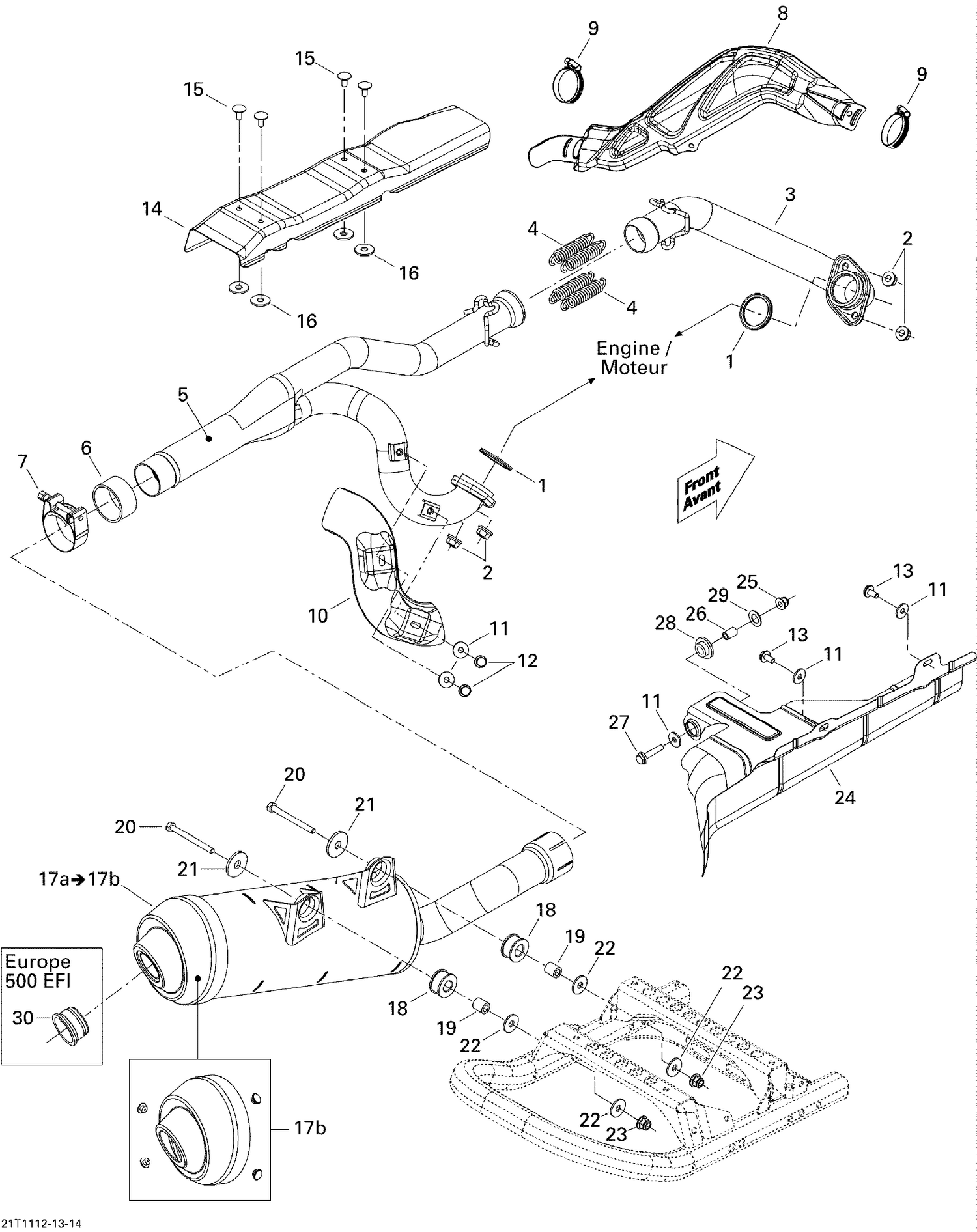

01- Exhaust System
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 707600317 | Gasket |
| 2 | 233081416 | Hex. Flange Nut M8 |
| 3 | 707600529 | FRONT TUNED PIPE - Call your local BRP dealership |
| 4 | 415107100 | Spring |
| 5 | 707600530 | REAR TUNED PIPE - Call your local BRP dealership |
| 6 | 707600430 | Pipe Gasket |
| 7 | 293650177 | Norma Gear Clamp |
| 8 | 707600889 | Heat Shield This part replaces 707600616. |
| 9 | 293650098 | Norma Gear Clamp |
| 10 | 707600615 | PROTECTOR - Call your local BRP dealership |
| 11 | 250200082 | Flat Washer This part replaces 391302000. |
| 12 | 250000073 | HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership |
| 13 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 14 | 707600700 | HEAT SHIELD - Call your local BRP dealership |
| 15 | 390406500 | Pop Rivet 3/16" |
| 16 | 517124300 | Washer |
| 17b | 703500701 | MUFFLER CAP KIT - Call your local BRP dealership |
| 18 | 707603323 | Vibration Damper This part replaces 707600701. |
| 19 | 293900106 | Bushing This part replaces 293900082. |
| 20 | 207687044 | Hex. Flange Screw M8 X 70 |
| 21 | 503032900 | Washer |
| 22 | 234082410 | Flat Washer 8 mm |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 24 | 707600621 | Protector |
| 25 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 26 | 293900078 | Sleeve |
| 27 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 28 | 705003932 | Grommet |
| 29 | 503175800 | Washer |
