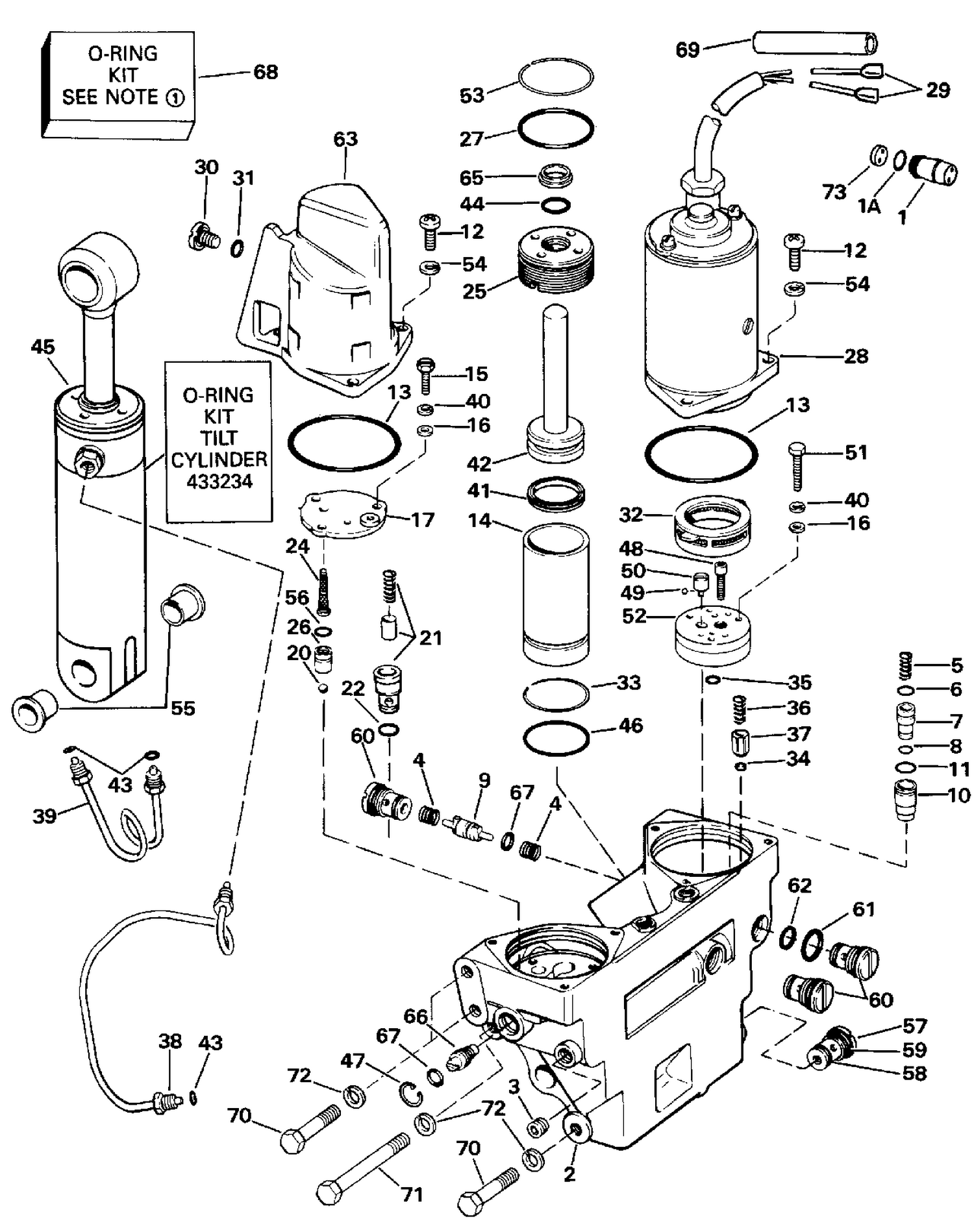

POWER TRIM/TILT HYDRAULIC ASSEMBLY
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 0324677 | JOINT TORIQUE, mamelon, vidange inférieure |
| 8 | 0324678 | JOINT TORIQUE Galet de came de papillon |
| 21 | 0397022 | RELIEF VALVE KIT |
| 28 | 0435548 | TRIM/TILT MOTOR |
| 40 | 0360252 | WASHER This part replaces 0306311. |
| 45 | 0397798 | CYLINDER ASSY., Tilt |
| 51 | 0321219 | VIS, vis de fixation |
| 55 | 0321246 | BUSHING, Shock absorber, lower |
| 69 | 0514044 | SLEEVE, Sending unit leads |
| 0433234 | 0433234 | O-RING & SEAL KIT |
| 0435569 | 0435569 | HYDRAULIC ASSY., Trim/tilt |
