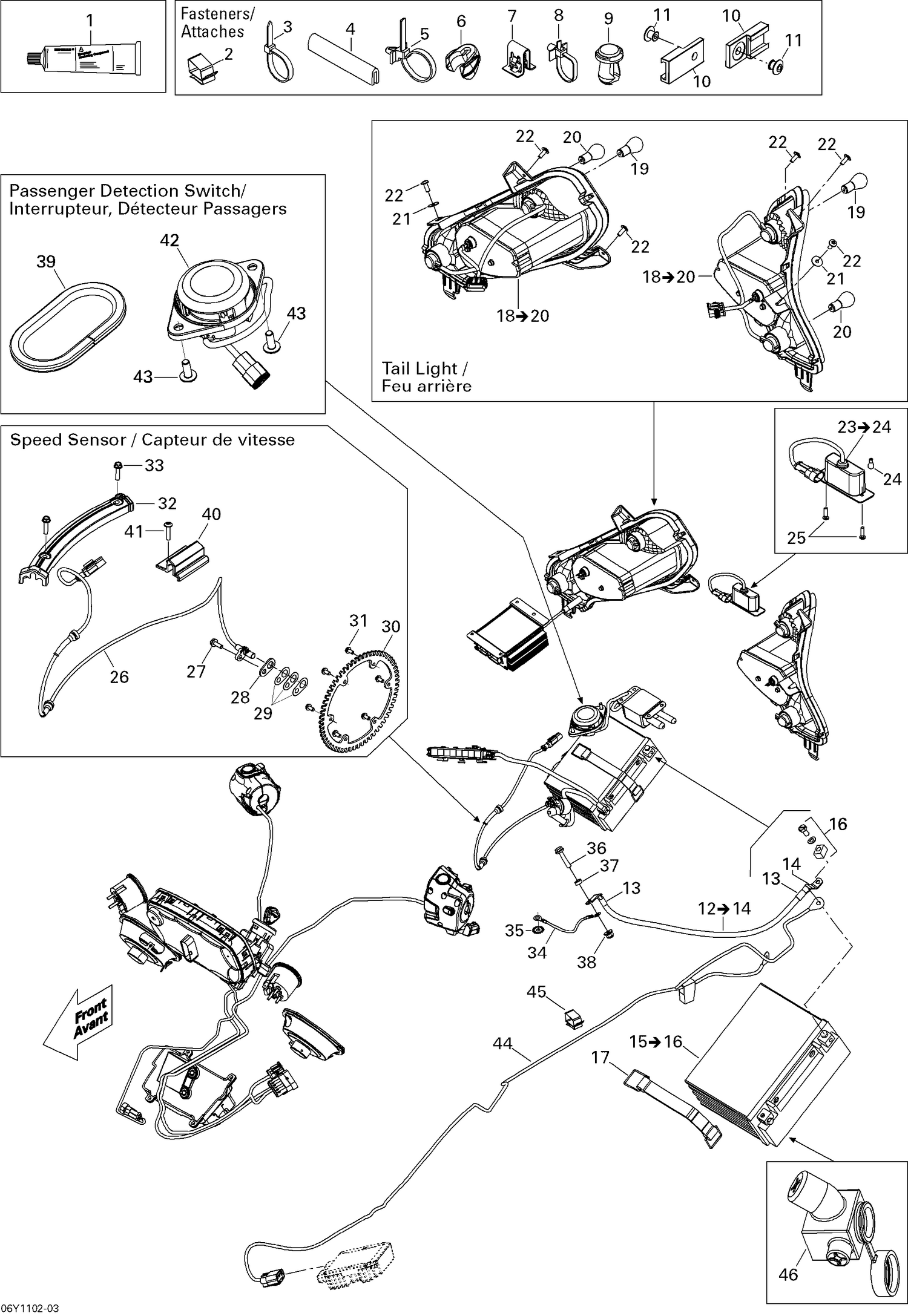

| Ref | Part Number | Description |
|---|
| 1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 3 |
414115200 |
Tie-Rap 180 mm |
| 3 |
515175220 |
Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4 |
219704354 |
Trim 1000Mm Long |
| 6 |
710001452 |
WIRE BRACKET - Call your local BRP dealership |
| 7 |
XXX |
Not Available As Spare Parts |
| 8 |
710002197 |
UNLOCKING CLIP - Call your local BRP dealership |
| 9 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 10 |
270000141 |
Clip |
| 11 |
390402400 |
Pop Rivet 3/16" |
| 13 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 14 |
710000518 |
Open Barrel |
| 16 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 17 |
515176044 |
Battery Strap |
| 19 |
520000758 |
Bulb This part replaces 415129425. |
| 20 |
219800122 |
Flasher Bulb |
| 21 |
224060201 |
Flat Washer |
| 22 |
250000348 |
Torx Truss Screw M6 X 16 |
| 24 |
219800128 |
Bulb |
| 25 |
250000287 |
Flange Torx Screw K40 X 16 |
| 26 |
706202361 |
Speed Sensor This part replaces 706200560. |
| 27 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 28 |
710002024 |
Shim |
| 29 |
710002023 |
Shim |
| 30 |
705600573 |
TONE WHEEL - Call your local BRP dealership |
| 31 |
207551034 |
SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership |
| 32 |
710001035 |
PROTECTOR - Call your local BRP dealership |
| 33 |
250000843 |
Torx Truss Screw M6 X 30 This part replaces 250000398. |
| 34 |
710001165 |
GROUND HARNESS - Call your local BRP dealership |
| 35 |
250200041 |
Lock Washer Serrated M6 |
| 36 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 37 |
293900054 |
BUSHING - Call your local BRP dealership |
| 38 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 39 |
219704354 |
Trim 1000Mm Long |
| 40 |
710002145 |
Hose Support |
| 41 |
250000843 |
Torx Truss Screw M6 X 30 This part replaces 250000398. |
| 42 |
710008103 |
Passenger Detection Switch This part replaces 710001346. |
| 43 |
250000755 |
Torx Screw M6 X 16 This part replaces 250000261. |
| 44 |
710002238 |
REGULATOR CABLE - Call your local BRP dealership |
| 45 |
414227300 |
Clip |
