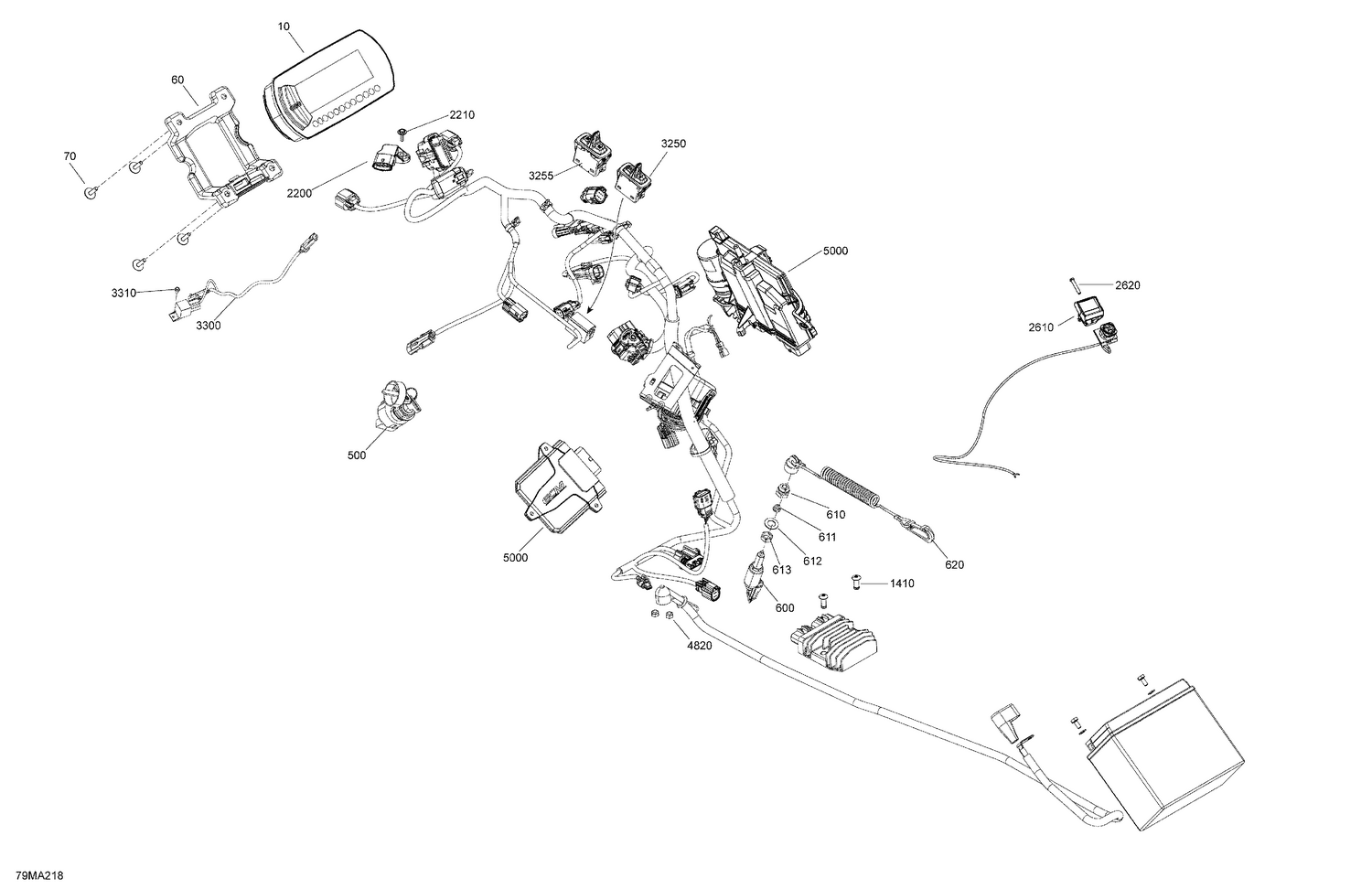

08- Electric - Upper Section
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178226 | Cadran Multifonction Grand Couleur |
| 60 | 515178450 | Housing |
| 70 | 250000725 | Screw M4 X 16 |
| 500 | 515177063 | Ignition Swirch |
| 600 | 515175653 | Brake Switch |
| 610 | 515145900 | Switch Nut |
| 611 | 570151100 | Plunger Cap |
| 612 | 250200084 | Flat Washer |
| 613 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 620 | 515178283 | Cap Ass'y |
| 1410 | 293150182 | Monobolt Rivet 6.4 |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 3300 | 515178805 | Fan Wiring Harness |
| 3310 | 207551044 | Hex. Flange Screw M5 X 10 |
| 4820 | 232561434 | Elastic Stop Nut M6 |
