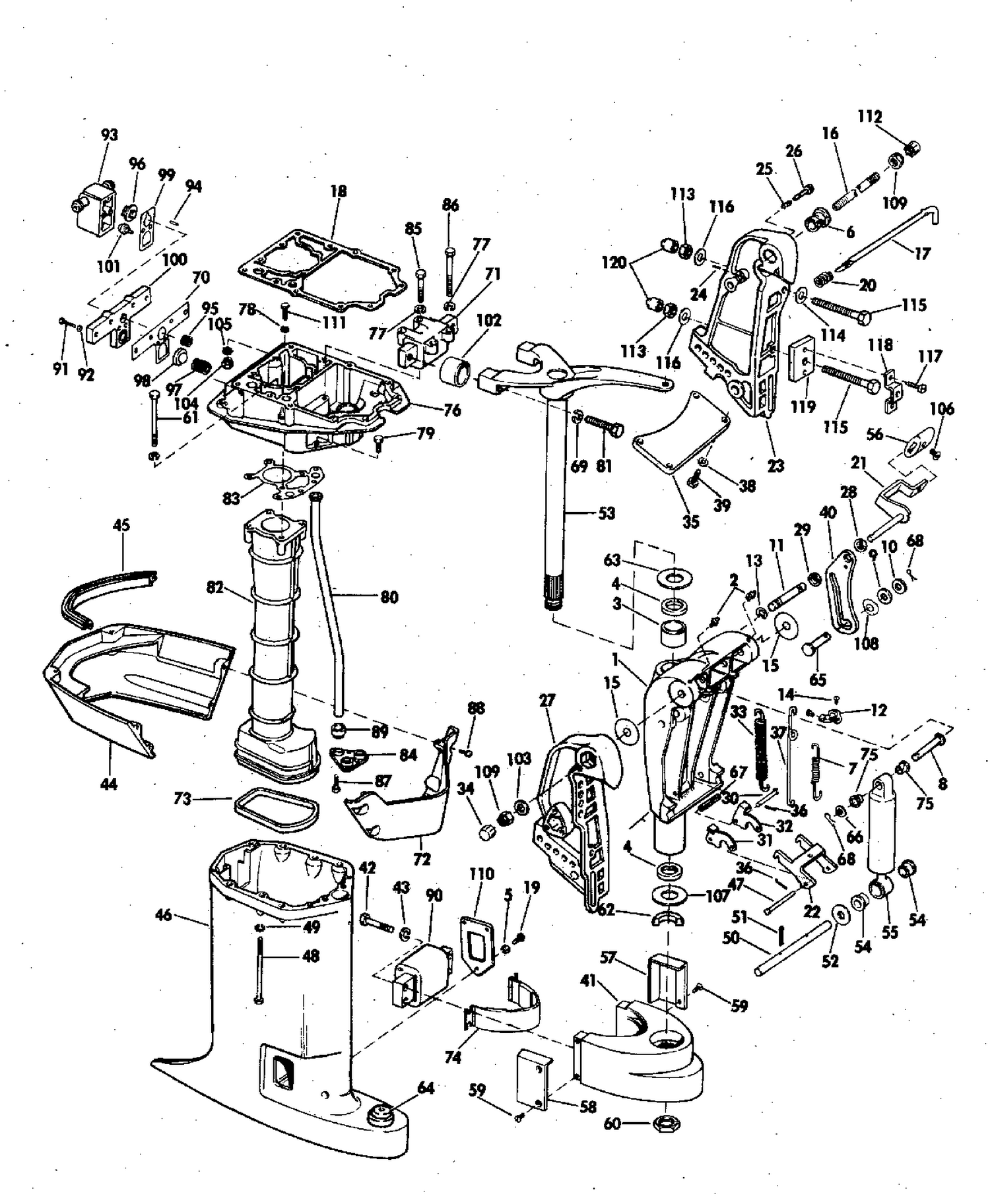

| Ref | Part Number | Description |
|---|
| 1 |
0385667 |
SWIVEL BRACKET |
| 3 |
0317783 |
BUSHING |
| 4 |
0318158 |
SEAL |
| 6 |
0319787 |
BUSHING This part replaces 0317789. |
| 7 |
0318290 |
SPRING, Reverse lock |
| 9 |
0303775 |
WAHSER, Lever to hsg |
| 10 |
0316403 |
SPRING WASHER |
| 11 |
0318257 |
BUSHING, Tilt lock shaft |
| 12 |
0318256 |
BELLCRANK, Reverse lock |
| 13 |
0318291 |
RET.RING, Tilt lock bushing |
| 14 |
0319108 |
SCREW BELCRANK |
| 15 |
0317782 |
THRUST WASHER |
| 16 |
0317769 |
TILT TUBE |
| 17 |
0385512 |
THRUST ROD ASSEMBLY |
| 18 |
0318373 |
GASKET, Adapter to power head |
| 20 |
0317781 |
SPRING, Thrust rod |
| 21 |
0385703 |
SHAFT & LEVER ASSEMBLY |
| 22 |
0318222 |
LOCKING LEVER |
| 23 |
0386005 |
STERN BRACKET & LOCK PIN, Port |
| 26 |
0318906 |
LOCK PIN |
| 27 |
0319788 |
STERN BRACKET, Starboard This part replaces 0317737. |
| 28 |
0204406 |
WASHER, Tilt lock lever |
| 30 |
0315023 |
PIN, Link |
| 31 |
0318221 |
LINK, Reverse lock starboard |
| 32 |
0318220 |
LINK, Reverse lock port |
| 33 |
0318289 |
SPRING, Reverse lock |
| 34 |
0317894 |
CACHE, tube de relevage |
| 35 |
0317784 |
PLATE, Sterm bracket |
| 36 |
0302858 |
GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 37 |
0319979 |
ROD, Rev lock release This part replaces 0318219. |
| 38 |
0307708 |
RONDELLE GROWER |
| 39 |
0305282 |
BOLT, Bowl & suction piece This part replaces 0301218. |
| 40 |
0385691 |
TILT LOCK |
| 41 |
0317780 |
MOUNT BRACKET |
| 43 |
0307708 |
RONDELLE GROWER |
| 44 |
0383759 |
COVER, Exh. hsg. rear |
| 45 |
SEAL, |
Cover |
| 46 |
0317764 |
EXHAUST HOUSING, Outer |
| 47 |
0315022 |
PIN, Link to locking lever |
| 48 |
0315132 |
SCREW, Exh. hsg. |
| 50 |
0315028 |
PIVOT PIN, Shjock absorber |
| 51 |
0302804 |
COTTER IN |
| 52 |
0307764 |
WASHER, Inner |
| 53 |
0386570 |
STEERING ARM ASSY This part replaces 0385511. |
| 54 |
0315222 |
BUSHING SHOCK ABSORB |
| 55 |
0385532 |
SHOCK ABSORBER |
| 56 |
0329012 |
KNOB Tilt & reverse lock handle This part replaces 0318157. |
| 57 |
0314988 |
COVER , Mount brkt, lwr. port |
| 58 |
0314989 |
COVER, Monting bracket, lower starboard |
| 59 |
0303587 |
SCRES,Cover plate |
| 60 |
0318159 |
NUT, Mount bracket |
| 61 |
0324424 |
SCREW, Carb. body, long This part replaces 0304299. |
| 62 |
0317792 |
KEEPER, Pivot shaft |
| 63 |
0317788 |
THRUST WASHER, Pivot shaft |
| 64 |
0317924 |
SEAL, Shift rod to exhaust housing |
| 65 |
0318280 |
PIN, Tilt lock |
| 66 |
0127386 |
RONDELLE This part replaces 0303913. |
| 67 |
0316208 |
SPACER, Line reverse lock |
| 69 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 70 |
0318394 |
GASKET, Plate to adapter |
| 71 |
0385692 |
RUBBER MOUNT ASSY., Upper |
| 72 |
0314848 |
COVER, Exh. hsg. front |
| 73 |
0314937 |
SEAL |
| 74 |
0318643 |
SNUBBER, Lower mount brkt |
| 75 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 76 |
0317732 |
ADAPTER, Exhaust housing |
| 79 |
0329894 |
SCREW This part replaces 0302510. |
| 80 |
0315020 |
WATER TUBE |
| 81 |
0311840 |
SCREW, Rubber mount |
| 82 |
0317765 |
EXAUST HOUSING,Inner |
| 83 |
0318281 |
GASKET, Housing to adapter |
| 84 |
0315409 |
COUPLING, Flange |
| 85 |
0304055 |
SCREW |
| 86 |
0306823 |
SCREW, Upper mount |
| 87 |
0306446 |
SCREW, Coupling to adapter |
| 89 |
0305145 |
GROMMET |
| 90 |
0384472 |
RUBBER MOUNT, Lower |
| 91 |
0306418 |
VIS, ancrage |
| 92 |
0302471 |
W.ASHER, Plain |
| 93 |
0385832 |
COVER ASSY,Thermo hsg |
| 95 |
0305587 |
SPRING, Check valve |
| 96 |
0318395 |
CHECK VALVE |
| 97 |
0305591 |
SPRING, Vernathem valve |
| 98 |
0308070 |
VALVE |
| 99 |
0318396 |
GASKET, Housing |
| 100 |
0318397 |
PLATE, Thermostat housing |
| 101 |
0384719 |
VERNA THERM |
| 102 |
0315643 |
SNUBBER, Upper mount |
| 103 |
0317793 |
SPACER |
| 104 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 105 |
0306799 |
L'WASHER,Bracket to hsg. |
| 106 |
0318238 |
SCREW |
| 107 |
0317790 |
THRUST WASHER |
| 108 |
0318644 |
WASHER, Tilt lock |
| 109 |
0323599 |
LOCKNUT This part replaces 0316828. |
| 110 |
0314944 |
RETAINER PLATE |
| 113 |
0363254 |
NUT, Stern bracket screw This part replaces 0307407. |
| 114 |
0307238 |
RONDELLE |
| 115 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 116 |
0320248 |
RONDELLE, écrou This part replaces 0312910. |
| 118 |
0318273 |
Bolt hex retainer 1/2 in. |
| 119 |
0318272 |
Nut backing plate (square) 1/2 in. |
