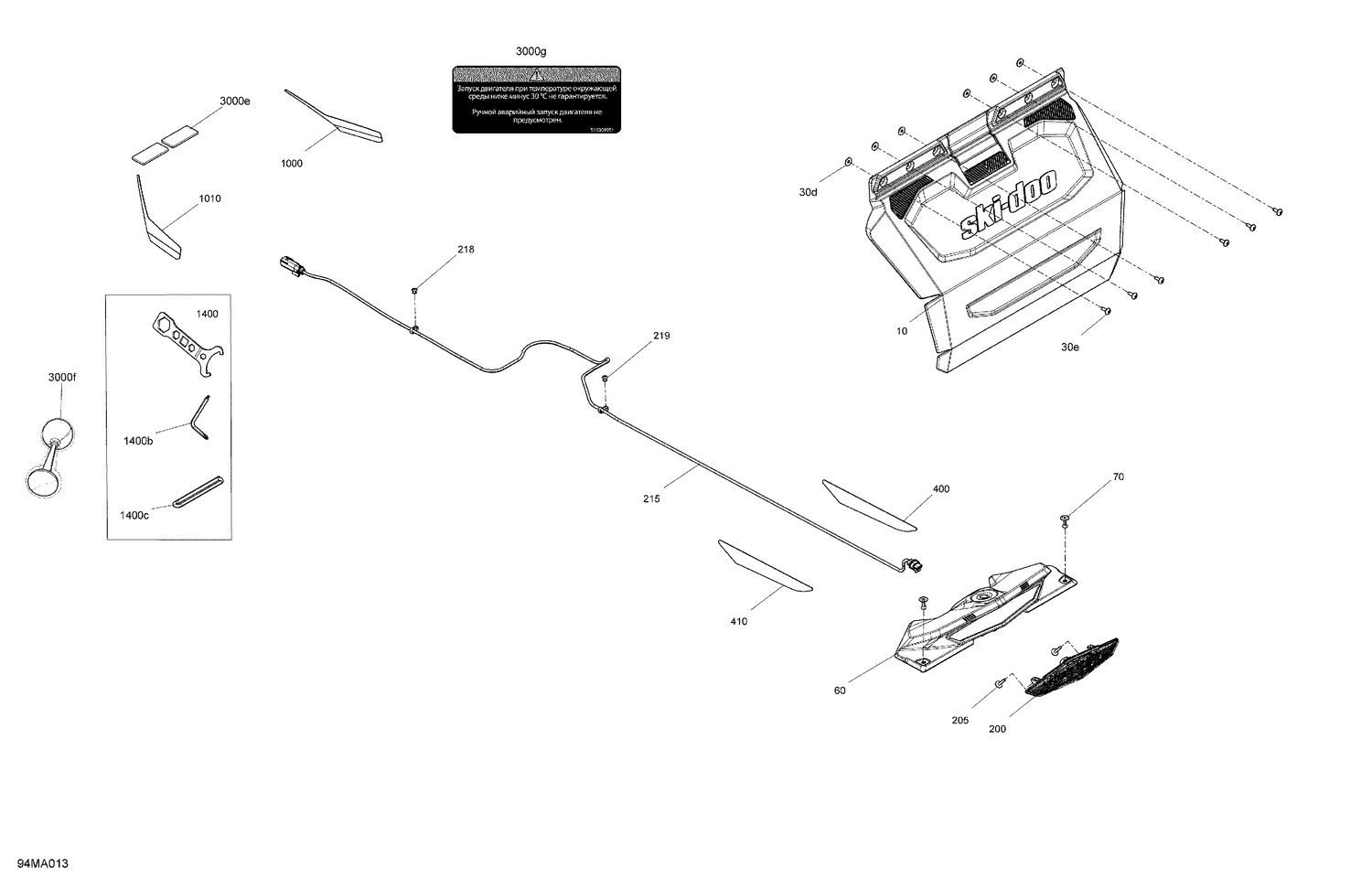

09- Miscellaneous - Utilities
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002056 | Snow Guard |
| 30d | 250200025 | Washer M5 |
| 30e | 250000676 | Forming Screw M5 x 16 |
| 60 | 520002228 | Light Fairing |
| 70 | 293150123 | Pop Rivet 3/16" |
| 200 | 520001143 | Rear Light |
| 205 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 215 | 515178953 | Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 219 | 390402200 | Pop Rivet 3/16" |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 1000 | 520002444 | RH Front Reflector |
| 1010 | 520002443 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 1400c | 529017500 | Rope Starter |
| 3000e | 520000271 | Amber, Reflector |
| 3000f | 549011291 | Horn |
