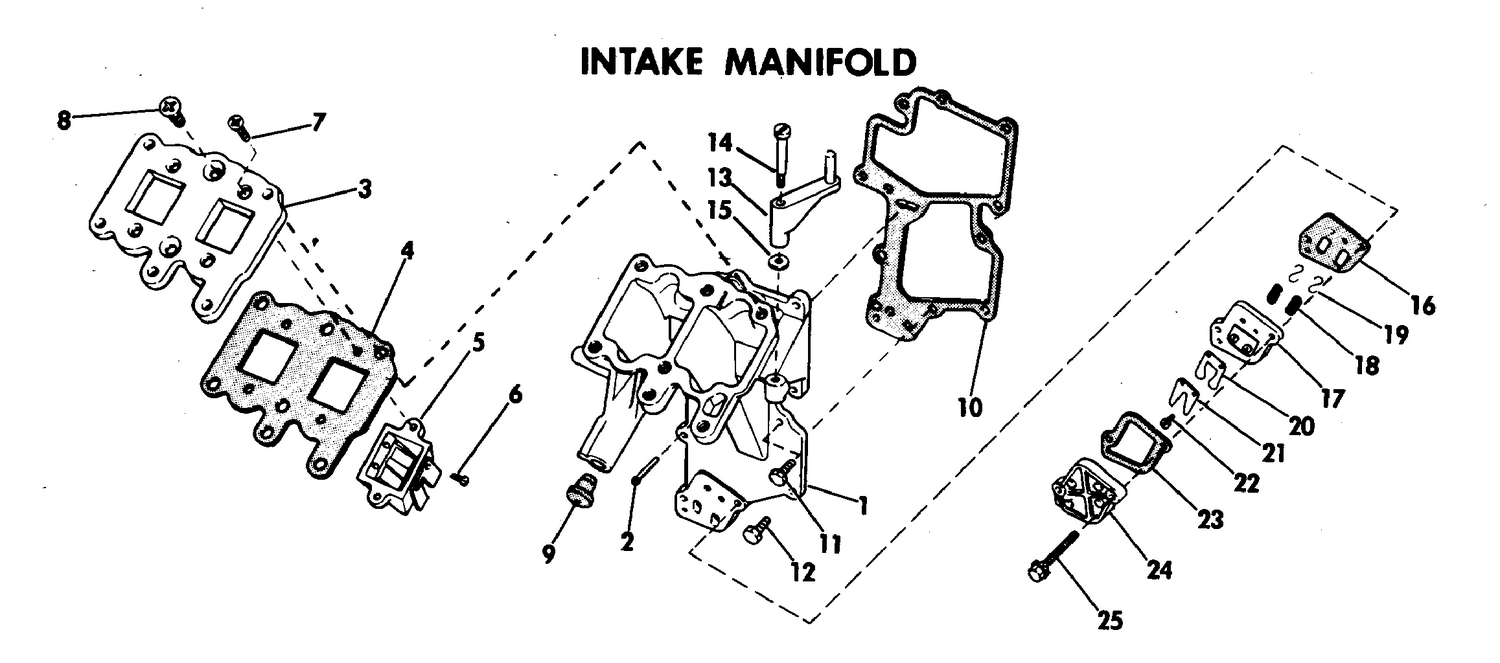

| Ref | Part Number | Description |
|---|
| 1 |
0383805 |
INTAKE MANIFOLD & NIPPLE ASSEMBLY |
| 3 |
0309659 |
BASE, Leaf plate |
| 4 |
0309657 |
GASKET, Base to mfld |
| 5 |
0379689 |
LEAF BLOCK ASSEMBLY |
| 6 |
0303761 |
SCREW |
| 7 |
0307609 |
SCREW |
| 8 |
0310748 |
SCREW, Leaf plate to manif. |
| 9 |
0309767 |
BUMPER, Cover |
| 10 |
0314172 |
GASKET, Manifold to cylinder |
| 11 |
0312472 |
SCREW, Manifold |
| 12 |
0311750 |
SCREW, Cover 11/16" long |
| 13 |
0310001 |
CAM FOLLOWER |
| 14 |
0309720 |
SCREW, Cam follower |
| 15 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 16 |
0309427 |
GAKSET, Drain valve |
| 17 |
0379093 |
DRAIN PLATE & SCREEN ASSEMBLY |
| 18 |
0310628 |
SCREEEN |
| 19 |
0310629 |
SPRING |
| 20 |
0302031 |
LEAF PLATE |
| 21 |
0304655 |
PLATE |
| 22 |
0303761 |
SCREW |
| 24 |
0302033 |
COVER |
