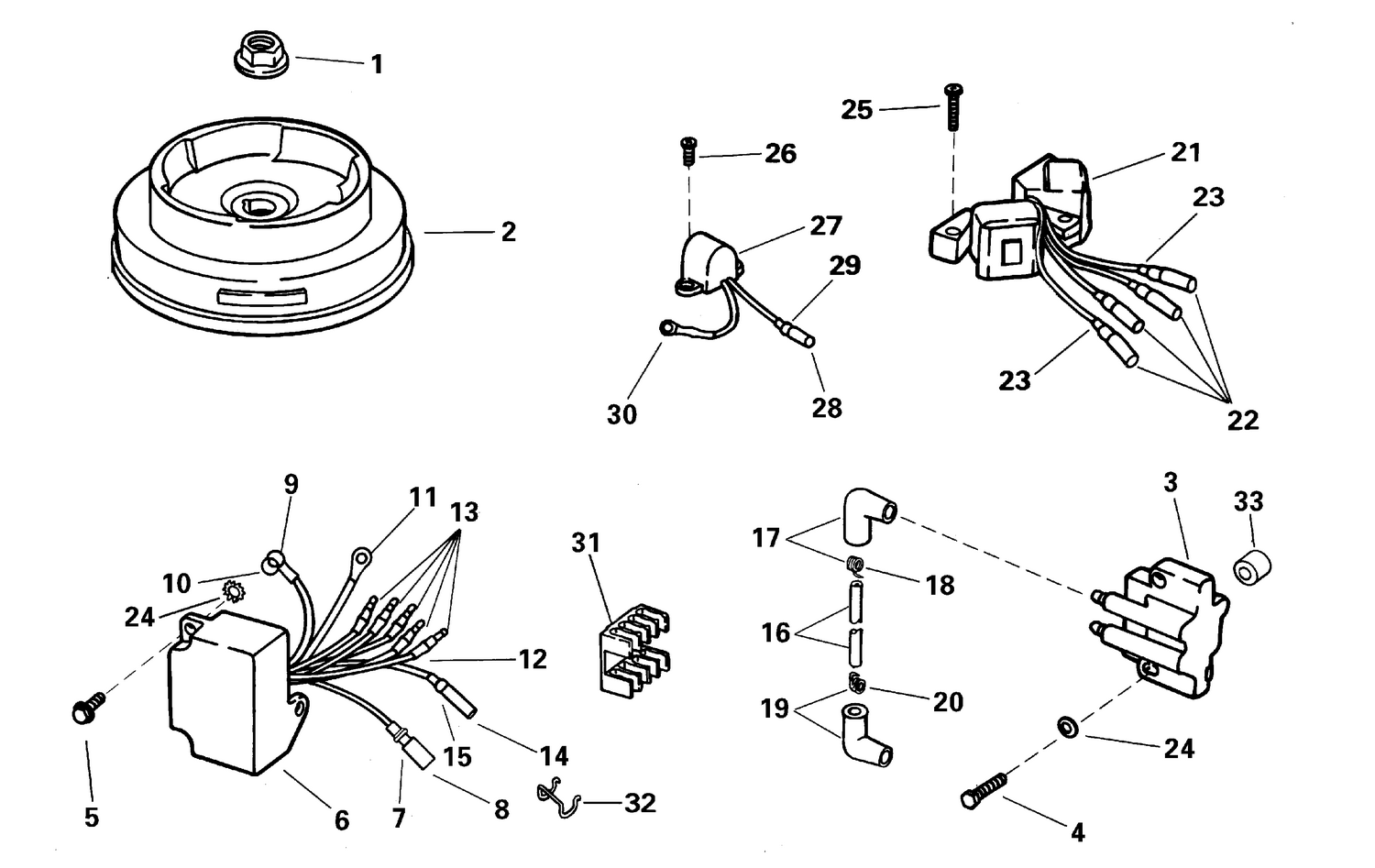

IGNITION
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0446101 | NUT, Flywheel |
| 2 | 0440164 | FLYWHEEL ASSY. |
| 3 | 0582508 | COIL ASSY |
| 4 | 0446032 | VIS, admission vers culasse |
| 5 | 0446099 | CLAVETTE, poulie vers arbre à cames |
| 6 | 0441804 | IGNITION MODULE This part replaces 0440211. |
| 16 | 0582365 | H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 21 | 0445128 | CHARGE COIL & LAM ASSY. |
| 25 | 0446102 | VIS de montage, capteur |
| 27 | 0445018 | SENSOR ASSY. |
| 31 | 0446308 | HOLDER, Power pack |
| 32 | 0512741 | DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
