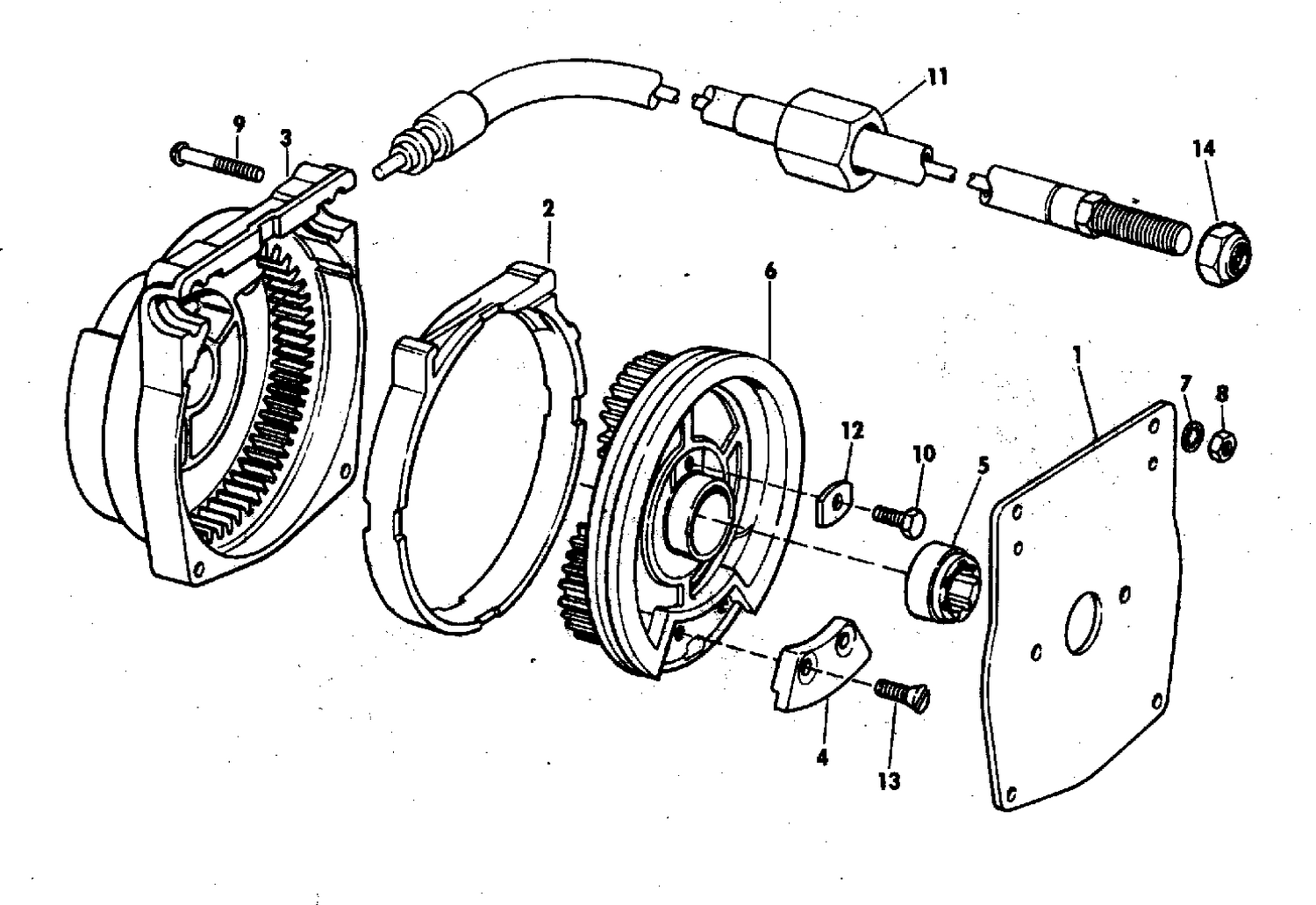

ROTAMATIC I DRIVE & CABLE Grey Cable
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0122456 | COVER PLATE |
| 2 | 0122457 | RING, Backup |
| 3 | 0122458 | DECAL,Pump unit,johnson |
| 4 | 0122594 | ANCHOR, Cable |
| 5 | 0122460 | BEARING, Pinion |
| 6 | 0172711 | ROTOR ASSEMBLY |
| 8 | 0328742 | NUT This part replaces 0306338. |
| 9 | 0316767 | SCREW, Plate to housing |
| 10 | 0309512 | SCREW, Anchor bracket |
| 11 | 0122462 | NUT, Cable |
| 12 | 0122595 | WASHER |
| 13 | 0131922 | SCREW, Anchor |
| 0172610 | 0172610 | DRIVE & CABLE ASSY., 10' to |
| 0172640 | 0172640 | DRIVE & CABLE ASSY., 40' |
| 0172771 | 0172771 | DRIVE & CABLE ASSY., 41' |
| 0172780 | 0172780 | DRIVE & CABLE ASSY., 50' |
