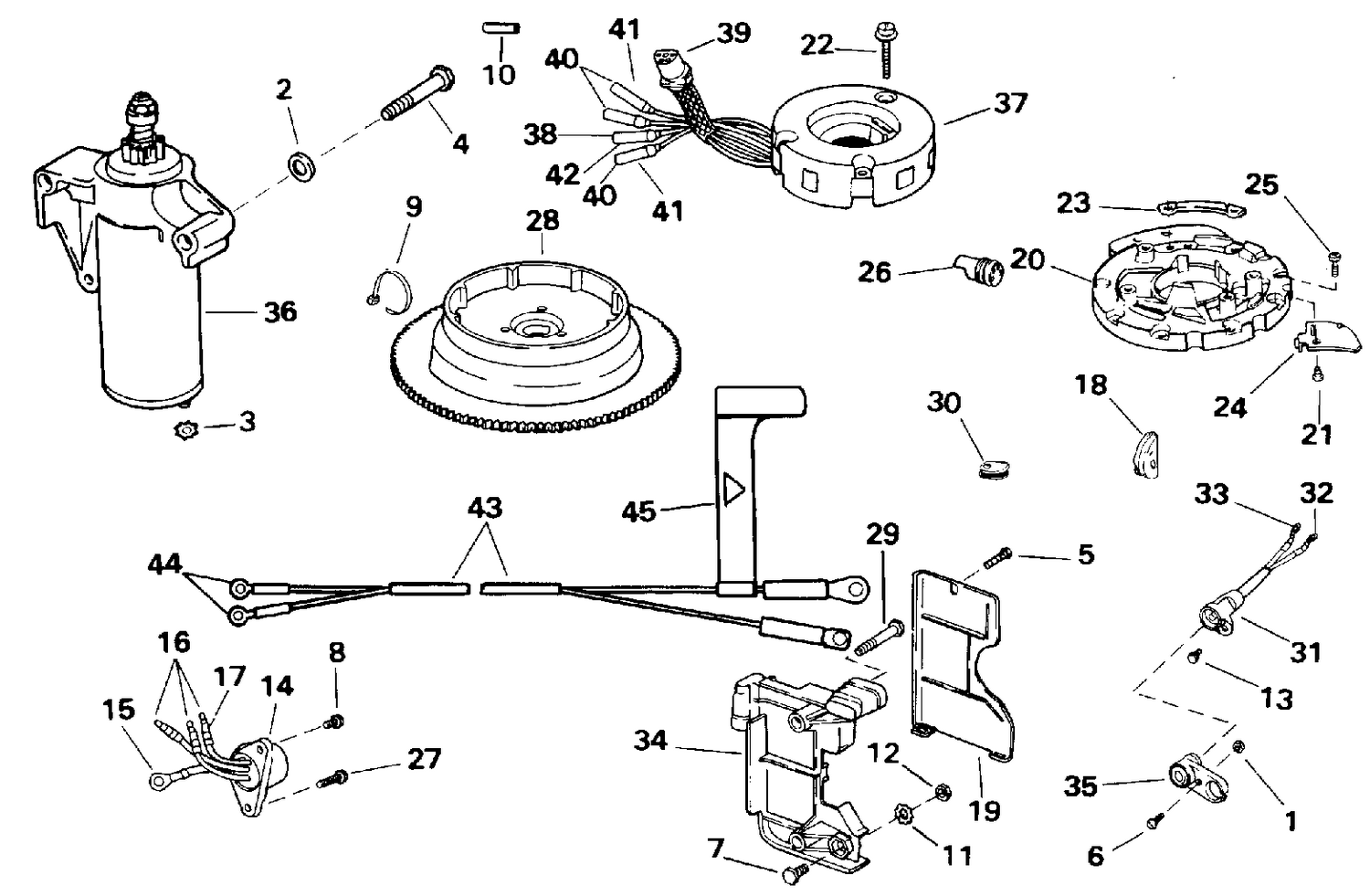

TILLER ELECTRIC STARTING KIT - 9.9, 15
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 0306644 | VIS, capteur de papillon |
| 7 | 0312241 | SCREW, Trim/Tilt relay bracket |
| 10 | 0328074 | CACHE, cosse prise |
| 19 | 0338258 | COVER, Bracket |
| 21 | 0303212 | VIS, collier & capot |
| 22 | 0337522 | VIS, ensemble bobine |
| 25 | 0511460 | VIS, dispositif de retenue |
| 34 | 0435513 | BRACKET, Electrical |
| 37 | 0584755 | STATOR ASSEMBLY |
| 0584865 | 0586398 | ELECTRIC STARTING KIT This part replaces 0584865. |
