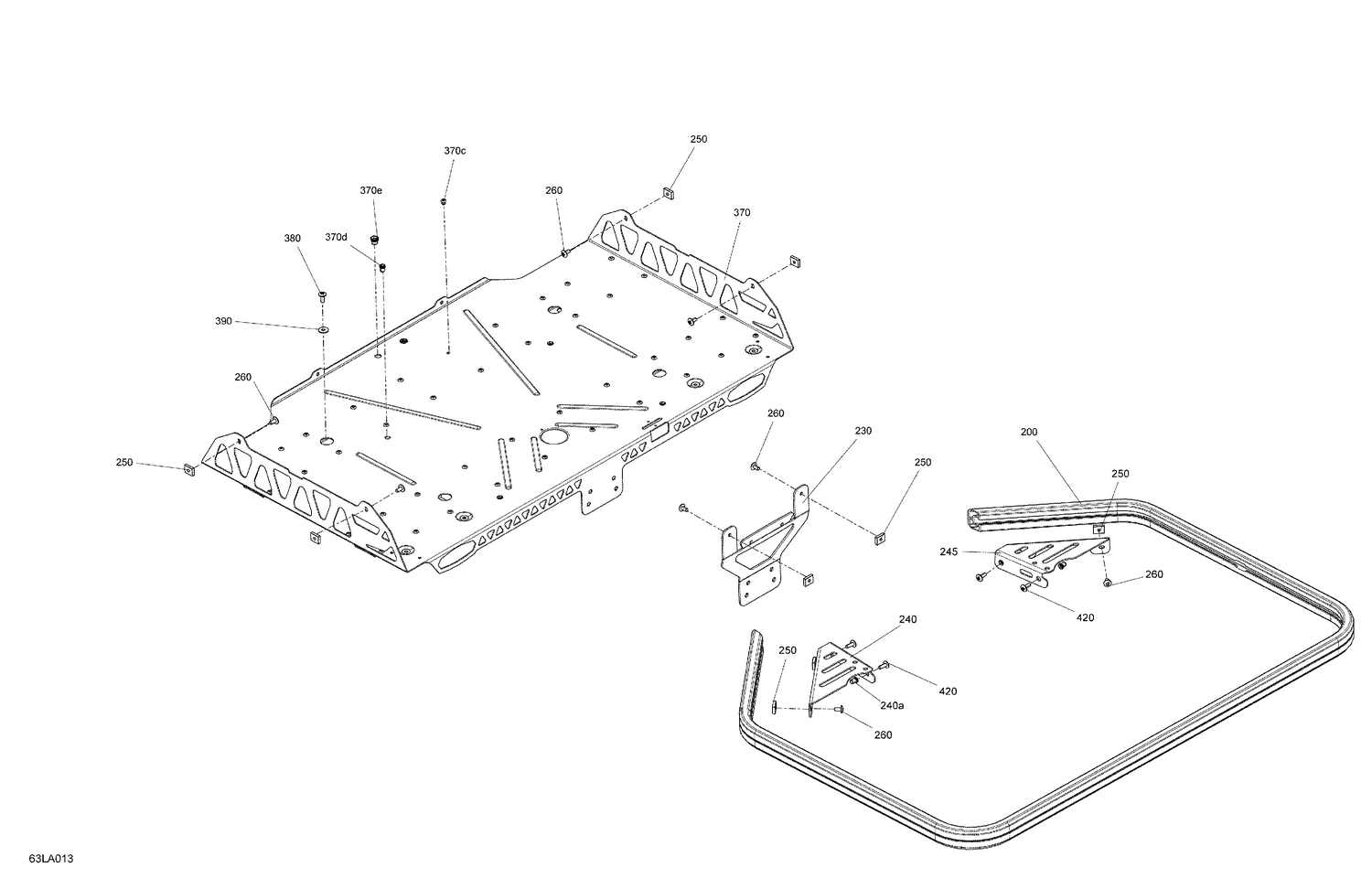

07- Body - Cargo
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 511001624 | Orange Crush, Luggage Rack |
| 230 | 511001639 | Black, Rear Rack Support |
| 240a | 605636003 | Clinch Nut M6 Hexsert |
| 245 | 511001602 | RH Rack Bar Fastening Plate |
| 250 | 511001314 | Threaded Insert |
| 260 | 250000767 | Torx Truss Screw M6 X 12 |
| 370c | 390909200 | Avex Rivet |
| 370d | 605636003 | Clinch Nut M6 Hexsert |
| 370e | 605636002 | Clinch Nut Hexsert M8 |
| 380 | 250000717 | Torx Head Screw M6 X 16 |
| 390 | 234062670 | Flat Washer, Stainless |
