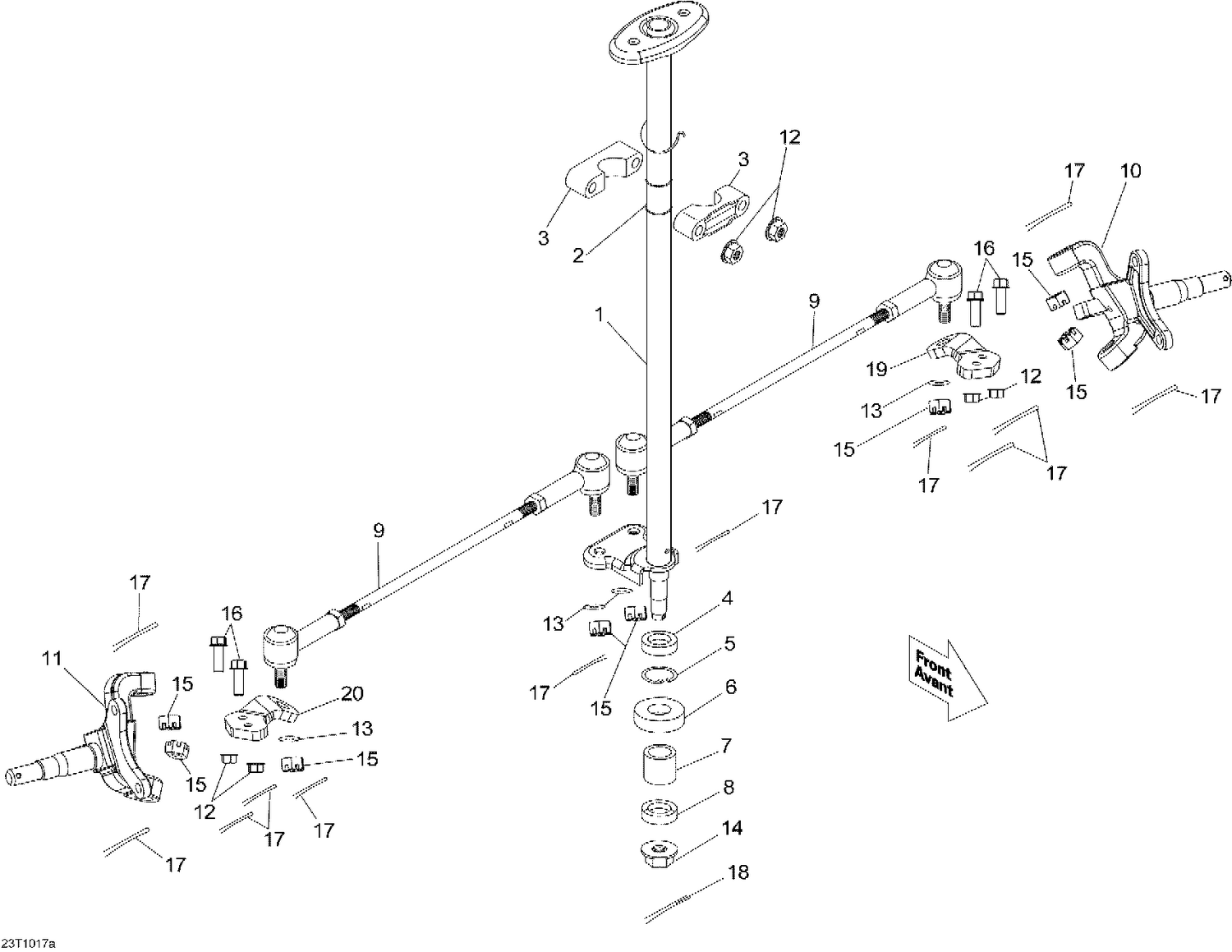

07- Steering
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V53200DGF08H | Steering Column, Black This part replaces V53200DGF00H. |
| 2 | V53217MAA020 | Sleeve This part replaces V53217MAA000. |
| 3 | V53434MAA020BK | Steering Shaft Holder |
| 4 | V92101MAA000 | Oil Seal |
| 5 | V9452032000 | C-Circlip |
| 6 | A961006002ZZ | Radial Ball Bearing, 6002ZZ |
| 7 | V22112MAA010 | Collar This part replaces V22112MAA000. |
| 8 | V92102MAA000 | Oil Seal |
| 9 | V53180DGF03H | Tie-Rod Ass'y This part replaces V53180DGF00H. |
| 10 | V51215DGF05HLL | LH Knuckle This part replaces V51215DGF05H. |
| 11 | V51210DGF04HLL | RH Knuckle |
| 12 | 232581414 | Hex. Elastic Stop Nut M8 |
| 13 | 234101601 | Helicoidal Lock Washer M10 |
| 14 | 232571414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 15 | V9035210000LL | Lock Nut |
| 16 | 207683544 | Hex. Flange Screw M8 X 35 |
| 17 | V9420117020LL | Cotter Pin This part replaces V9420117020. |
| 18 | V9420130032LL | Cotter Pin This part replaces V9420130032. |
| 19 | V51211DGF06H | LH Tie Rod Plate This part replaces V51211DGF01H. |
