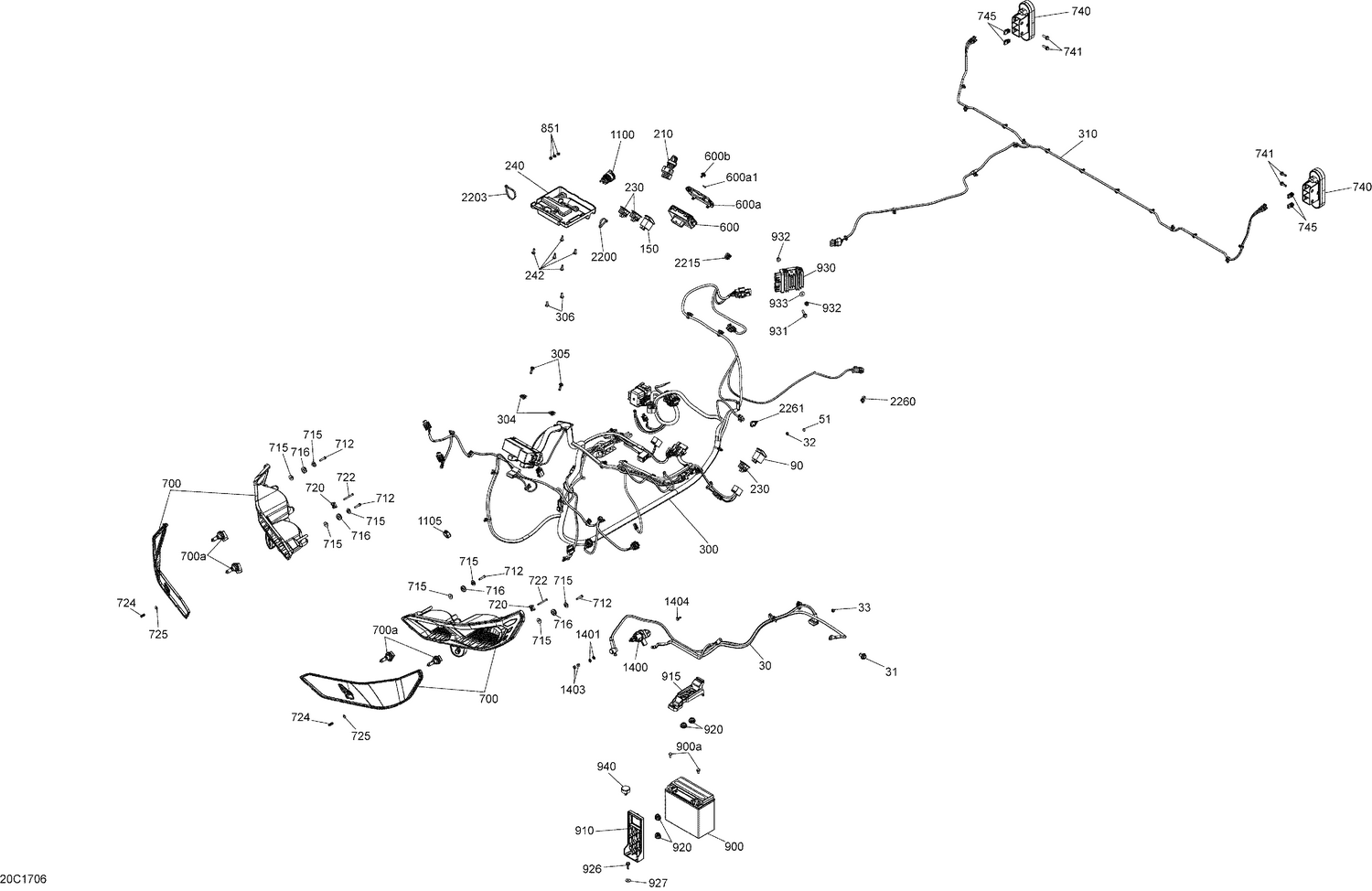

10- Electrical System
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 710005331 | Negative Cable |
| 31 | 207501644 | Hex. Flange Screw M10 X 16, Scotch Grip |
| 32 | 234461608 | External Serrated Lock Washer 6 mm |
| 33 | 232561414 | Elastic Stop Nut M6 |
| 51 | 232561414 | Elastic Stop Nut M6 |
| 90 | 710004492 | Light Switch |
| 150 | 710004814 | Interrupteur 2 X 4 |
| 210 | 710007870 | Inter Allumage *Ignition This part replaces 710004198. |
| 230 | 710007173 | Plug Carling This part replaces 710001999. |
| 240 | 710004741 | Housing Support |
| 242 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 300 | 710005530 | Main Harness Ass'y |
| 304 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 305 | 207662044 | Hex. Flange Screw M6 X 20 |
| 306 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 310 | 710004458 | Rear Harness |
| 600a1 | 704904615 | BRP Logo13 mm |
| 600b | 715900265 | Button |
| 700a | 219800149 | Halogen Bulb H8 12V 35W |
| 712 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 715 | 710004749 | Shoulder Bushing |
| 716 | 709000582 | Grommet This part replaces 293720053. |
| 720 | 572106600 | Handle |
| 722 | 250000718 | Hex. Screw K40 X 45 |
| 724 | 517168600 | Spring |
| 724a | 517168600 | Spring |
| 725 | 234042600 | Flat Washer 4 mm, Stainless |
| 740 | 710004497 | Tail Light |
| 741 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 745 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 851 | 232561200 | Brass Elastic Stop Nut M6 |
| 900a | 250000282 | Battery Bolt Kit |
| 910 | 710004788 | Fixation Plate |
| 915 | 710004789 | Fixation Plate |
| 920 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 926 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 927 | 234062410 | Flat Washer 6 mm |
| 930 | 710010539 | Voltage Regulator This part replaces 515177325. |
| 931 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 932 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 933 | 234062410 | Flat Washer 6 mm |
| 940 | 708001827 | Rubber Stopper |
| 1100 | 710001248 | DC Outlet |
| 1105 | 710004993 | Cap |
| 1400 | 278003012 | Starter Relay |
| 1401 | 234161601 | Lock Washer Helical M6 |
| 1403 | 232061600 | Hex. Nut M6 |
| 1404 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 2200 | 414115200 | Tie-Rap 180 mm |
| 2203 | 293750008 | Tie Wrap 368 mm |
| 2215 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 2260 | 710003168 | Dart Tie Rap 200MM |
