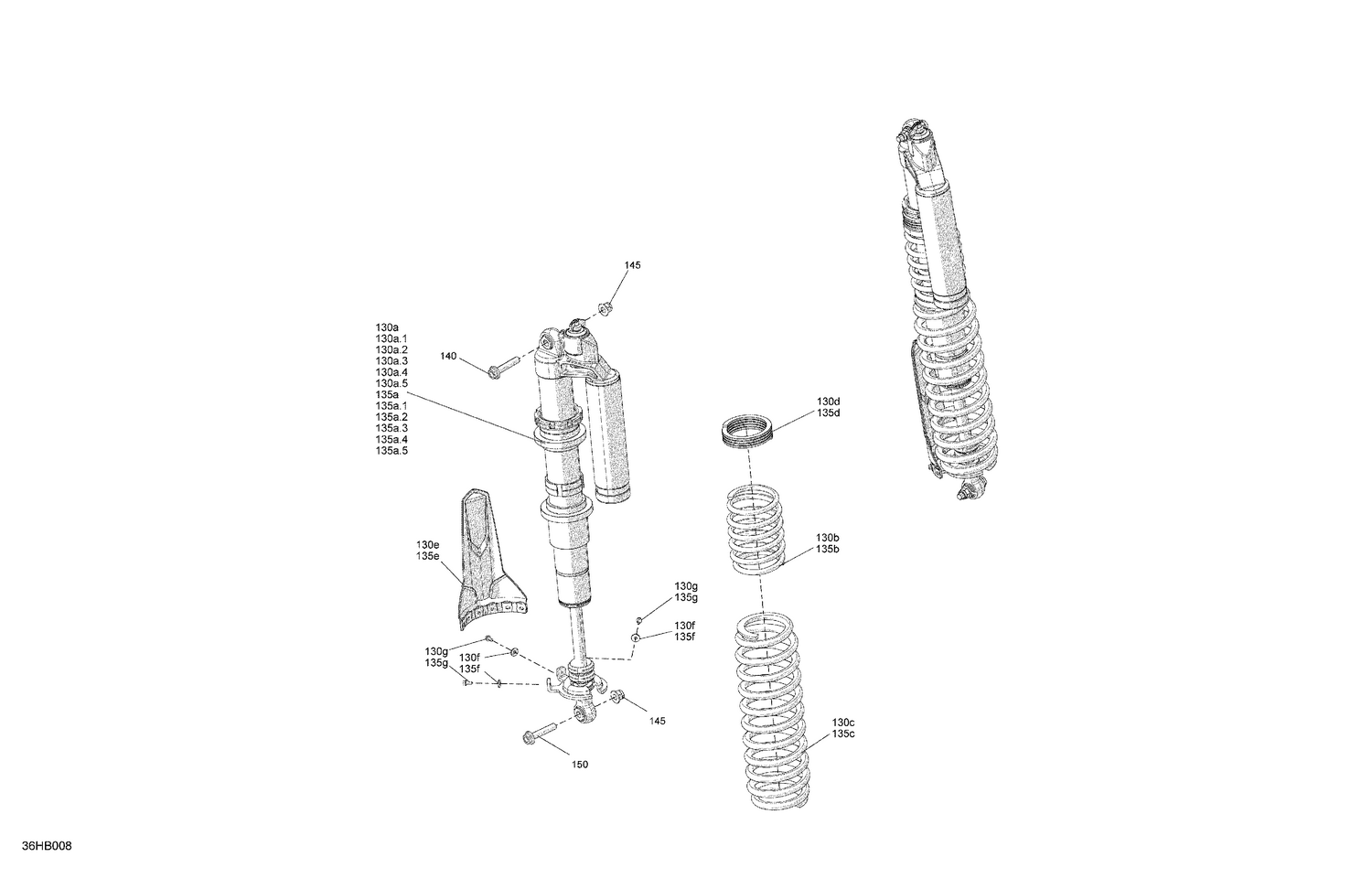

05- Suspension - Rear Shocks - 64 Inches Width
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 130b | 706004484 | Magma Red, Rear Compression Spring |
| 130c | 706004485 | Magma Red, Rear Compression Spring |
| 130d | 706004486 | Magma Red, Rear Compression Spring |
| 130e | 706202215 | Protector |
| 130f | 250200025 | Washer M5 |
| 130g | 210251150 | Hex Flange Screw M5 X 11 |
| 135b | 706004484 | Magma Red, Rear Compression Spring |
| 135c | 706004485 | Magma Red, Rear Compression Spring |
| 135d | 706004486 | Magma Red, Rear Compression Spring |
| 135e | 706202215 | Protector |
| 135f | 250200025 | Washer M5 |
| 135g | 210251150 | Hex Flange Screw M5 X 11 |
| 140 | 250000857 | Flange Screw M12 X 60 |
| 145 | 250001195 | Elastic Flange Nut M12 |
