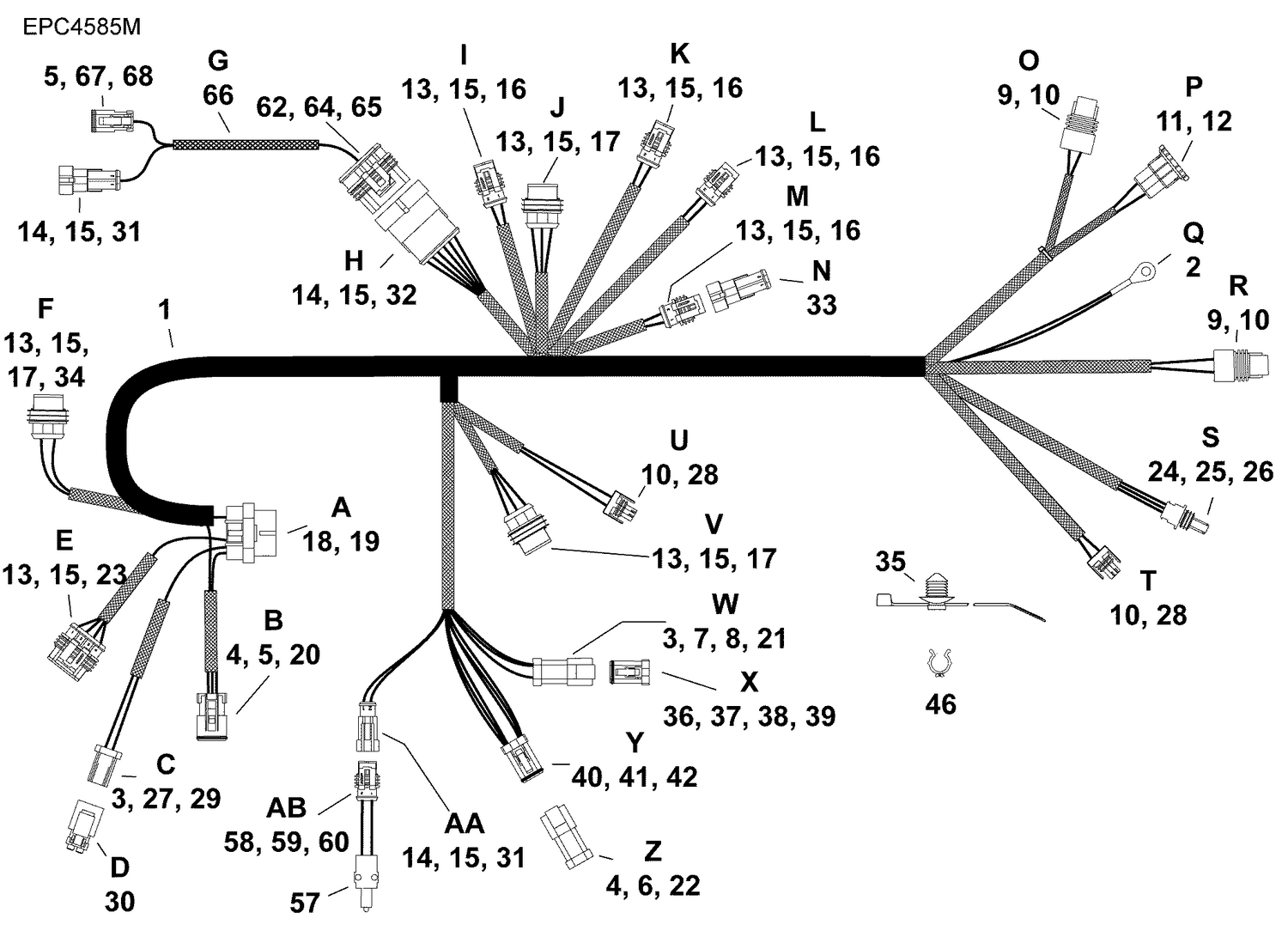

| Ref | Part Number | Description |
|---|
| B |
b |
DIAGNOSTIC CONNECTOR |
| D |
D |
SEAL ASSEMBLY, CANbus connector |
| E |
E |
STATOR CONNECTOR |
| F |
F |
CRANKSHAFT POSITION SENSOR |
| G |
G |
TILLER ARM CONTROL CONNECTOR |
| H |
H |
STOP SWITCH & FUEL SELECTOR SWITCH |
| I |
I |
FUEL INJECTOR #1 CONNECTOR |
| J |
J |
IGNITION COIL #2 CONNECTOR |
| K |
K |
FUEL INJECTOR #2 CONNECTOR |
| L |
L |
FUEL PUMP CONNECTOR |
| Legend |
Ref: |
A a *HOSE, Long, 72 in. (1830mm) a |
| N |
N |
SEAL ASSEMBLY, Battery charge module |
| O |
O |
LOW OIL SWITCH CONNECTOR |
| P |
P |
OIL PUMP CONNECTOR |
| Q |
Q |
CYLINDER BLOCK GROUND |
| S |
S |
THROTTLE POSITION SENSOR CONNECTOR |
| T |
T |
AIR TEMPERATURE SENSOR |
| U |
U |
CYLINDER HEAD TEMPERATURE SENSOR |
| V |
V |
IGNITION COIL #1 CONNECTOR |
| X |
X |
SEAL ASSEMBLY, SystemCheck CONNECTOR |
| Z |
Z |
SEAL ASSEMBLY, Key switch connector |
| 1 |
0587061 |
ENGINE HARNESS Assembly |
| 35 |
5007748 |
FICHE & ATTACHE-CÂBLE |
| 46 |
3011450 |
ATTACHE, connecteur |
| 57 |
0586780 |
INTERRUPTEUR, de sécurité au point mort |
