Home / BRP / EVINRUDE / 1999 / 65 / 01- Crankcase

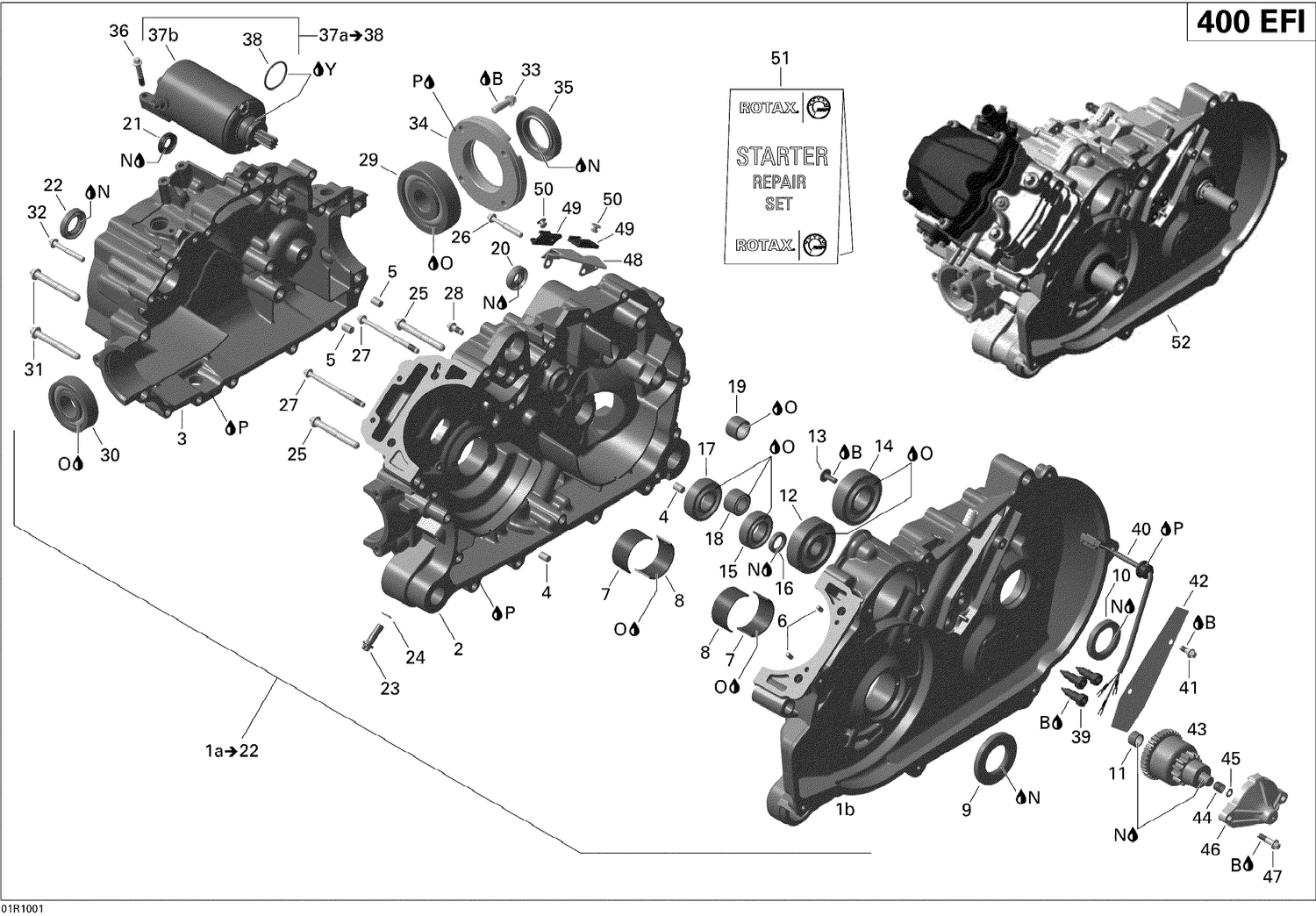

01- Crankcase

01- Crankcase

Parts (56)

RefPart NumberDescription
B 293800060 Loctite 243, 10 ml
N 293550030 Grease, Super Lube
O Not Available As Spare Part - Engine Oil
P 293800081 Loctite 5910, 300 ml
1b Not Available As Spare Part - Crankcase, CVT Side
2 Not Available As Spare Part - Crankcase, MAG Side
3 Not Available As Spare Part - Magneto Cover
4 420632010 Center Pin 8 X 12
5 420632010 Center Pin 8 X 12
6 420929650 Drive Pin 5 X 10
7 420233960 Plain Bearing
8 420233965 Plain Bearing
9 420630152 Oil Seal
10 420950089 Oil Seal This part replaces 420950087.
11 420232482 Needle Bushing This part replaces 420232480.
12 420632295 Ball Bearing This part replaces 420632290.
13 420241522 Torx Screw M6 X 16 This part replaces 420241529.
14 420932822 Ball Bearing This part replaces 420932825.
15 420232291 Ball Bearing 6302
16 420250130 Oil Seal
17 420932433 Ball Bearing 6204 This part replaces 420932430.
18 420232085 Needle Bushing
19 420832240 Needle Bushing
20 420250450 Oil Seal
21 420650315 Oil Seal
22 420930392 Oil Seal
23 420440372 Torx Flange Screw M8 X 25
24 420950141 Sealing Ring
25 420440402 Torx Flange Screw M8 X 65
26 420440324 Torx Flange Screw M6 X 45 This part replaces 420440322.
27 420641228 Torx Flange Screw M6 X 85 This part replaces 420440342.
28 420440162 Torx Flange Screw M6 X 16
29 420632280 Ball Bearing 6405
30 420932822 Ball Bearing This part replaces 420932825.
31 420440402 Torx Flange Screw M8 X 65
32 420440324 Torx Flange Screw M6 X 45 This part replaces 420440322.
33 420440372 Torx Flange Screw M8 X 25
34 420610243 Bearing Cover
35 420650682 Oil Seal
36 420440274 Torx Flange Screw M6 X 35 This part replaces 420440272.
37b Not Available As Spare Part - Electrical Starter
38 Not Available As Spare Part - O-Ring
39 420241856 Position Switch
40 420265831 Wiring Harness
41 420440162 Torx Flange Screw M6 X 16
42 420251290 Cover Sheet
43 420684052 Starter Drive Assembly This part replaces 420684050.
44 420938204 Spring
45 420927574 Washer 5.3 This part replaces 420927571.
46 420610891 Reduction Cover Gear
47 420240034 Hex. Screw M6 X 25 This part replaces 420240031.
48 420251491 Retaining Plate This part replaces 420251490.
49 420260590 Connector Bracket
50 420243010 Blind Rivet
51 420266307 BRUSH KIT - Call your local BRP dealership
52 420040035 ENGINE LONG BLOCK, 400 EFI - Call your local BRP dealership This part replaces 420040030.
