Home / BRP / 2005 / Enduro 550RC, 2005 / 07- Take Apart Shock, Ski, 550RC

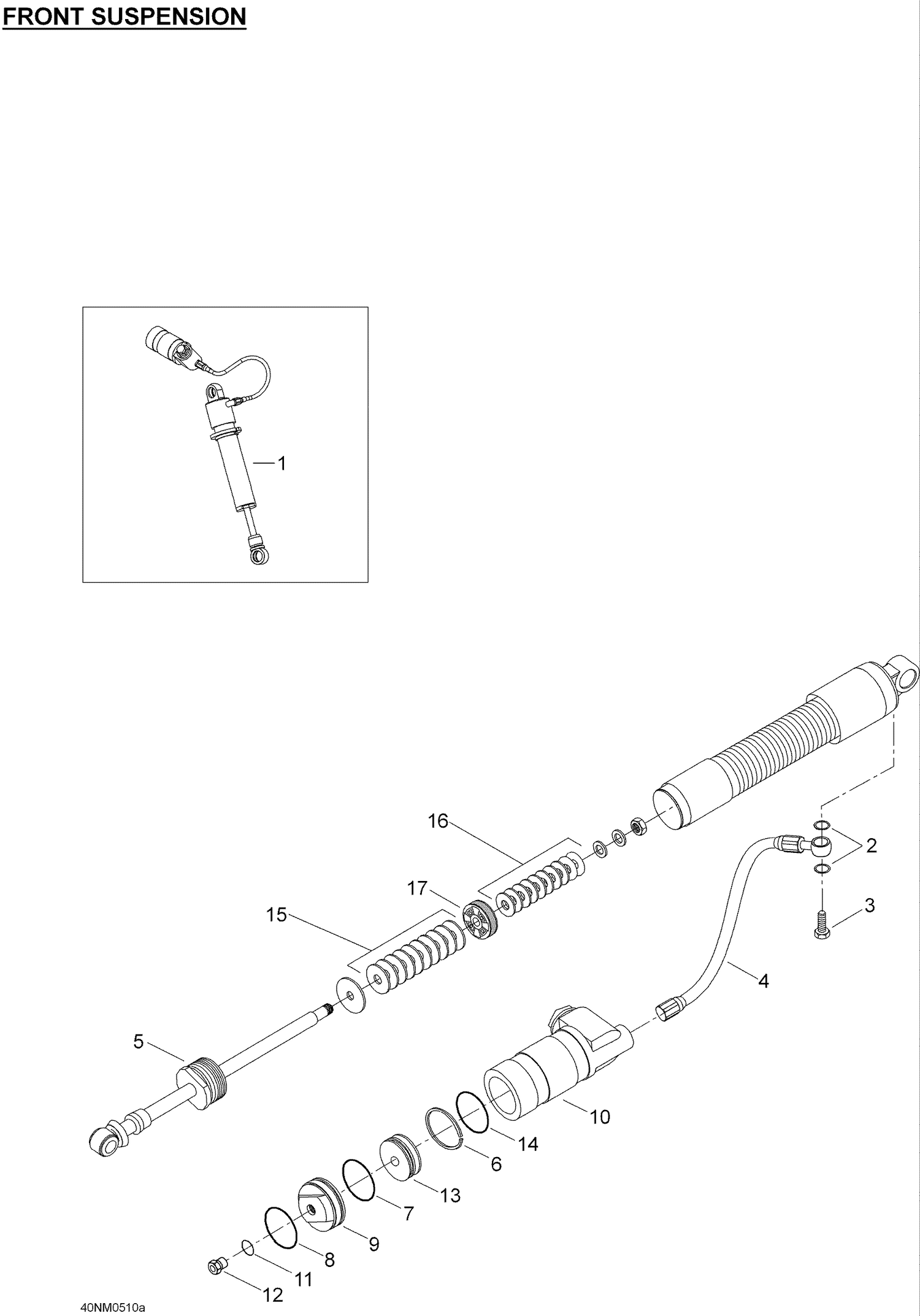

07- Take Apart Shock, Ski, 550RC

07- Take Apart Shock, Ski, 550RC

Parts (84)

RefPart NumberDescription
2 415038700 O-ring
3 415093810 Banjo-bolt
4 230062 Hose
6 415093806 Piston Ring
7 415093804 O-Ring
8 415093805 STOP RING - Call your local BRP dealership
11 Not Available As Spare Part - Not available for this vehicule
13 415093812 FREE PISTON - Call your local BRP dealership
14 415093807 O-Ring
15 230015 Leaf valve 18x0.114
15 230016 Leaf valve 18x0.254
15 230017 Leaf valve 20x0.254
15 230018 Leaf valve 22x0.114
15 230019 Leaf valve 22x0.254
15 230021 Leaf valve 24x0.114
15 230022 Leaf valve 24x0.152
15 230023 Leaf valve 24x0.203
15 230024 Leaf valve 26x0.114
15 230025 Leaf valve 28x0.114
15 230026 Leaf valve 28x0.254
15 414888318 Leaf valve 30 x 0.203
15 414888319 Leaf valve 30x0.152
15 414888320 Leaf valve 28x0.203
15 414888321 Leaf valve 28x0.152
15 414888322 Leaf valve 26x0.203
15 414888323 Leaf valve 26x0.152
15 414888324 Leaf valve 22x0.203
15 414888325 Leaf valve 22x0.152
15 414888326 Leaf valve 20x0.203
15 414888327 Leaf valve 20x0.152
15 414888328 Leaf valve 20x0.114
15 414888329 Leaf valve 18x0.203
15 414888330 Leaf valve 18x0.152
15 414888331 Leaf valve 16x0.254
15 414888332 Leaf valve 16x0.203
15 414888333 Leaf valve 16x0.152
15 414888334 Leaf valve 15x0.254
15 414888335 Leaf valve 15x0.203
15 414888336 Leaf valve 15x0.152
15 414888337 Leaf valve 15x0.114
15 414888338 Leaf valve 12x0.203
15 414888339 Leaf valve 12x0.152
15 415038800 Leaf valve 12x0.114
15 415038900 Leaf valve 16x0.114
15 415039000 Leaf valve 26x0.254
15 415039100 Leaf valve 30x0.254
16 230015 Leaf valve 18x0.114
16 230016 Leaf valve 18x0.254
16 230017 Leaf valve 20x0.254
16 230018 Leaf valve 22x0.114
16 230019 Leaf valve 22x0.254
16 230021 Leaf valve 24x0.114
16 230022 Leaf valve 24x0.152
16 230023 Leaf valve 24x0.203
16 230024 Leaf valve 26x0.114
16 230025 Leaf valve 28x0.114
16 230026 Leaf valve 28x0.254
16 414888318 Leaf valve 30 x 0.203
16 414888319 Leaf valve 30x0.152
16 414888320 Leaf valve 28x0.203
16 414888321 Leaf valve 28x0.152
16 414888322 Leaf valve 26x0.203
16 414888323 Leaf valve 26x0.152
16 414888324 Leaf valve 22x0.203
16 414888325 Leaf valve 22x0.152
16 414888326 Leaf valve 20x0.203
16 414888327 Leaf valve 20x0.152
16 414888328 Leaf valve 20x0.114
16 414888329 Leaf valve 18x0.203
16 414888330 Leaf valve 18x0.152
16 414888331 Leaf valve 16x0.254
16 414888332 Leaf valve 16x0.203
16 414888333 Leaf valve 16x0.152
16 414888334 Leaf valve 15x0.254
16 414888335 Leaf valve 15x0.203
16 414888336 Leaf valve 15x0.152
16 414888337 Leaf valve 15x0.114
16 414888338 Leaf valve 12x0.203
16 414888339 Leaf valve 12x0.152
16 415038800 Leaf valve 12x0.114
16 415038900 Leaf valve 16x0.114
16 415039000 Leaf valve 26x0.254
16 415039100 Leaf valve 30x0.254
17 230027 Piston, 1 slits
